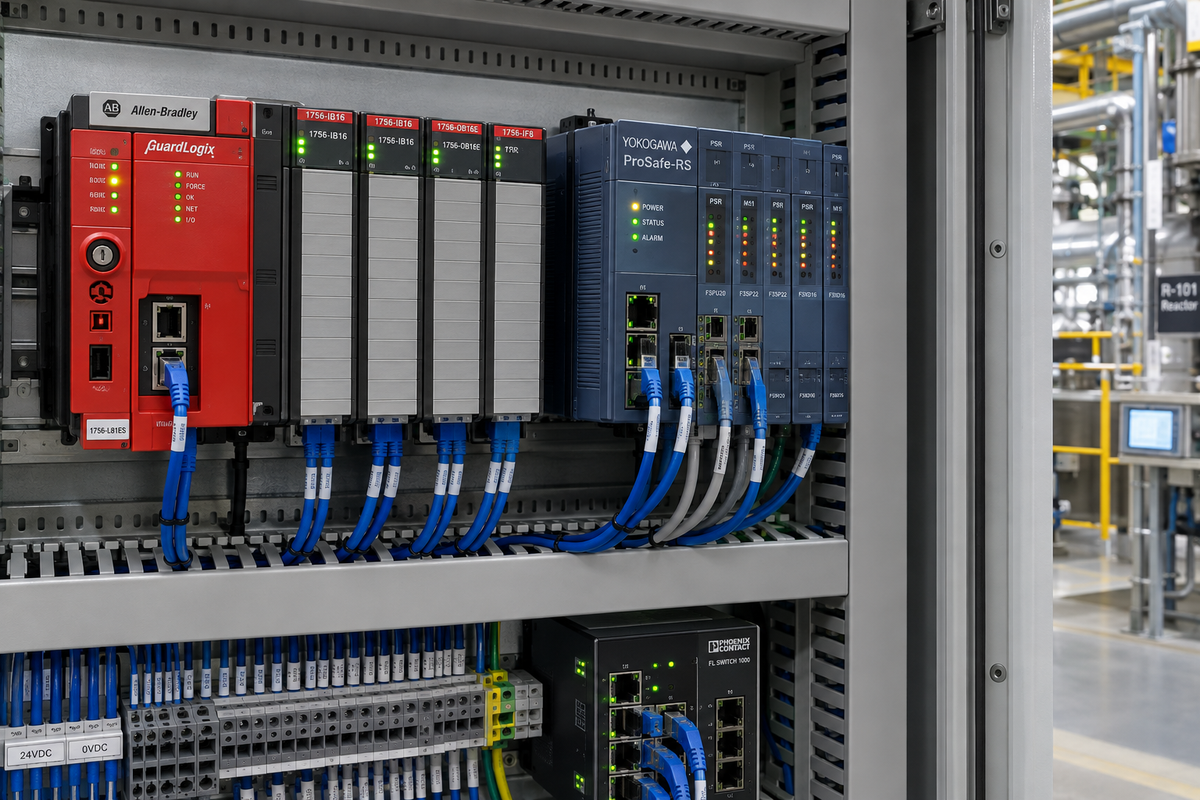

Modern programmable controllers generate diagnostic gold. Operators see the tip. Engineers rarely mine the rest. An Allen-Bradley ControlLogix rack, for example, records Connection Object statistics per EtherNet/IP port via communication modules like the Allen-Bradley 1756-EN2TR. A Yokogawa ProSafe-RS logs every processor-scan overshoot and safety-IO channel fault on nodes like the SNB10D Safety Node Unit. Both are perfect inputs to a predictive maintenance platform. However, control systems were never designed to manage technicians. A CMMS or asset-management system does that job. The trick is to feed the CMMS only qualified conditions, not every rising-edge alarm.
Allen-Bradley GuardLogix Diagnostic Registers Worth Mining
GuardLogix platforms—such as the GuardLogix 1756-L82ES Safety Controller—combine standard ControlLogix diagnostics with safety-task monitoring:
- Safety I/O Adapter Status: Subscribe to the Fault Code (attribute 0x00) and Fault Ext Code (attribute 0x01) on each Safety I/O adapter.
- Connection Object Polling: Poll the Connection Object counters every sixty seconds. Track Successful Connections, Timed Out Connections, and Received Bytes. A single timeout per week is normal; however, five timeouts per hour points to a switch, a cable, or a noisy variable-frequency drive.
- Safety CPU Scan Time: GuardLogix exposes Scan Time in microseconds via CIP. Sustained values above eighty percent of the configured task period indicate code drift or a memory leak.
- Module Configuration Sequence Number: Log this attribute continuously. A mismatch triggers hidden reconfiguration chatter across the backplane.
- Historian Archiving: Archive every fault to a plant historian for at least ninety days to establish baseline patterns.
Yokogawa ProSafe-RS Event Model and OPC UA Bridge
ProSafe-RS is Yokogawa's safety instrumented system family, often deployed with hardware like the Yokogawa SSC50D Duplexed Safety Control Unit. It integrates tightly with CENTUM VP via dedicated communication hardware such as the VI702 Vnet/IP Interface Card. Its event model uses three severity levels: alarm, event, and log.
- Alarms & Conditions Subscriptions: The OPC UA server on the CENTUM VP historian exposes Alarms and Conditions subscriptions. Subscribe only to state changes, not message text. Message text bloats the historian, whereas state changes are compact and easily queryable.
- Field Control Network (FCN) Diagnostic Tags: The FCN ring time must remain below forty milliseconds for SIL2 applications. Ring-time creep is a strong predictor of network switch degradation.
- CPU Load Average: Yokogawa exposes this metric through a system diagnostic variable. Sustained loads above sixty percent deserve an intervention plan before the next trip.
- Cross-Referencing: Cross-reference every ProSafe-RS fault with the CENTUM VP I/O station health variable to distinguish true process trips from network drops.
From Alarm to Work Order: A Four-Gate Qualification Model
An alarm is not automatically a maintenance trigger. Use four gates so that only qualified events become work orders:
- Step 1 — Repetition Gate: Require three or more occurrences within a rolling twenty-four-hour window. A one-off dropout is rarely real.
- Step 2 — Duration Gate: Ignore events shorter than the process time constant. A three-second I/O blip on a sixty-second temperature loop is noise.
- Step 3 — Trend Gate: Compare the current value against the asset's own baseline. Deterioration is a drift, not a spike.
- Step 4 — Historical Gate: Cross-check with the last three repairs. A recurring communication fault closed as a bad crimp is a pattern, not a fluke.
The four-gate model eliminates roughly seventy percent of low-value noise. Maintenance technicians see only actionable tickets, and operators stop resenting the alarm banner.
EtherNet/IP RPI Tuning for Fault Detection
Relaxed Requested Packet Interval (RPI) settings hide faults, while overly tight settings generate false alarms. For GuardLogix safety I/O, set RPI between ten and twenty milliseconds on a fully managed network, and set the Connection Timeout Multiplier to four. That combination gives a forty-to-eighty-millisecond detection window. Standard non-safety I/O can run at fifty milliseconds.
Never mix safety and standard classes on one switch VLAN without IGMP snooping enabled. IGMP snooping prevents multicast floods from starving CPU time. Yokogawa's SLCD switch defaults IGMP snooping off—turn it on during commissioning. Similarly, enable Spanning Tree Rapid Reconfiguration on every ring to ensure a single cable cut does not reboot the entire network segment.
Closing the Loop Between Control and CMMS
A control system is not a maintenance system; keep responsibilities clean. GuardLogix continues to execute safety logic. CENTUM VP presents process data. The CMMS handles technician assignment, spare parts, and repair history. Bind them with a shared Asset ID following ISA-95 Equipment Hierarchy naming, and write the Asset ID into every controller tag descriptor.
OPC UA subscriptions carry that descriptor through the historian bridge into the CMMS connector. A technician opening a mobile ticket therefore sees the last three repairs, the current fault, and the previous calibration certificate—converting a raw event into informed, efficient work.
Conclusion & Action Advice
Predictive maintenance is an integration discipline, not a technology purchase. Start by inventorying the diagnostic attributes your platform already exposes. Subscribe via OPC UA rather than raw register polling, and keep the CMMS and historian linked by a shared asset ID. Adopt the four-gate model to filter noise, and review ticket closure notes weekly: technician findings are the highest-quality training data your plant owns. GuardLogix and ProSafe-RS will tell you what is breaking—your process decides what to do about it.
