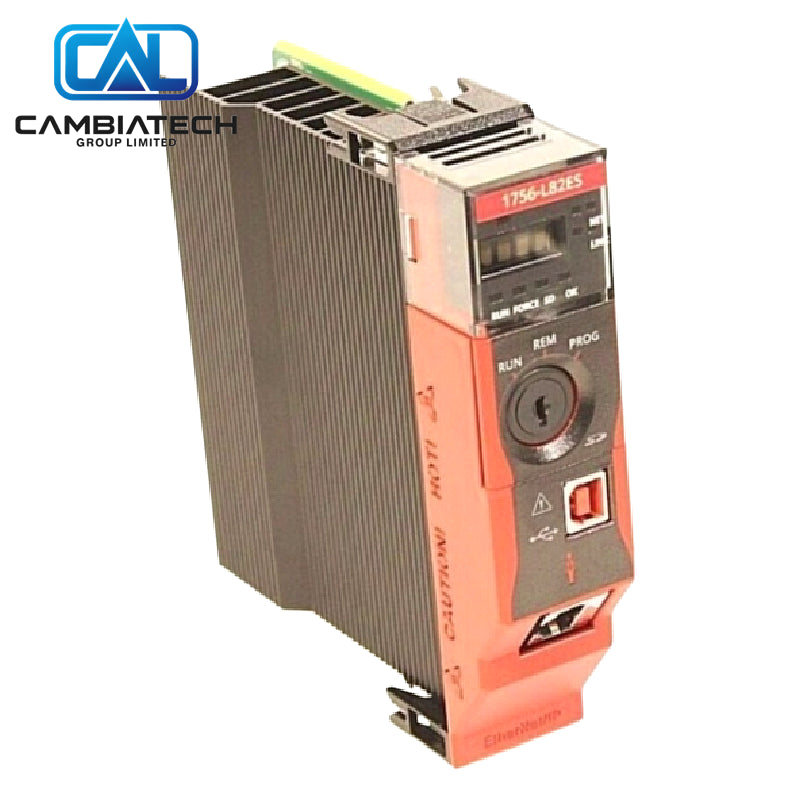

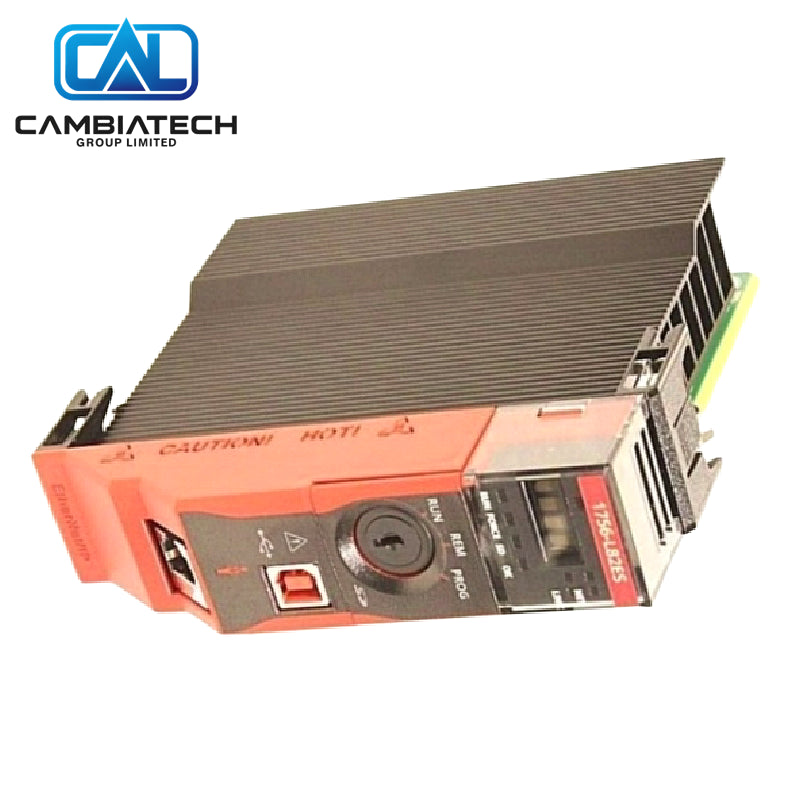

GuardLogix Safety 1756-L82ES Allen Bradley Controller
In stock, ready to ship
Manufacturer: Allen-Bradley
Product No.: 1756-L82ES
Product Type: GuardLogix Safety Controller
Product Origin: USA
Payment: T/T
Weight: 1800g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
Product Overview
The Allen-Bradley 1756-L82ES is a GuardLogix 5580 safety controller with 5 MB standard memory and 2.5 MB safety memory. It delivers integrated safety and standard control with a 1 Gbps embedded Ethernet port supporting up to 175 EtherNet/IP devices for mid-range safety applications.
Key Specs
- Standard memory: 5 MB
- Safety memory: 2.5 MB
- EtherNet/IP nodes: Up to 175 devices
- Ethernet port: 1 Gbps embedded RJ45
- USB port: USB 2.0 (12 Mbps)
- Tasks: 31 standard + 1 safety task
- Current draw: 5 mA @ 1.2 V DC, 1.20 A @ 5.1 V DC
Why Choose This
- Integrated safety reduces hardware count and wiring complexity
- 1 Gbps Ethernet supports high-speed motion and safety communication
- 4-character display for enhanced diagnostics
- Role-based access control and digitally-signed firmware
Common Questions
- What safety partner is required? The 1756-L8SP must be installed in the slot immediately to the right.
- What is the maximum I/O? 128,000 digital and 4000 analog I/O points.
- Which chassis are compatible? Series B and C 1756-A4, A7, A10, A13, and A17 chassis.
Mounting Steps
- Install the controller in any slot of a compatible 1756 chassis.
- Install the 1756-L8SP safety partner immediately to the right.
- Connect the embedded Ethernet port to the network.
- Verify the Energy Storage Module is seated.
- Download the application using Studio 5000 Logix Designer.
Buying Advice
- Choose 1756-L82ES for applications with up to 175 EtherNet/IP devices.
- For larger systems, the 1756-L83ES supports 250 nodes with 10 MB memory.
- Select the K suffix variant for conformal coating in harsh environments.
