Yokogawa Model VI702 Vnet/IP Interface Card for CENTUM VP and ProSafe-RS

In stock, ready to ship

  • Manufacturer: Yokogawa

  • Product No.: VI702

  • Product Type: Interface Card

  • Product Origin: Japan

  • Payment: T/T

  • Weight: 180g

  • Shipping port: Xiamen

  • Warranty: 12 months

Yokogawa Model VI702 Vnet/IP Interface Card for CENTUM VP and ProSafe-RS

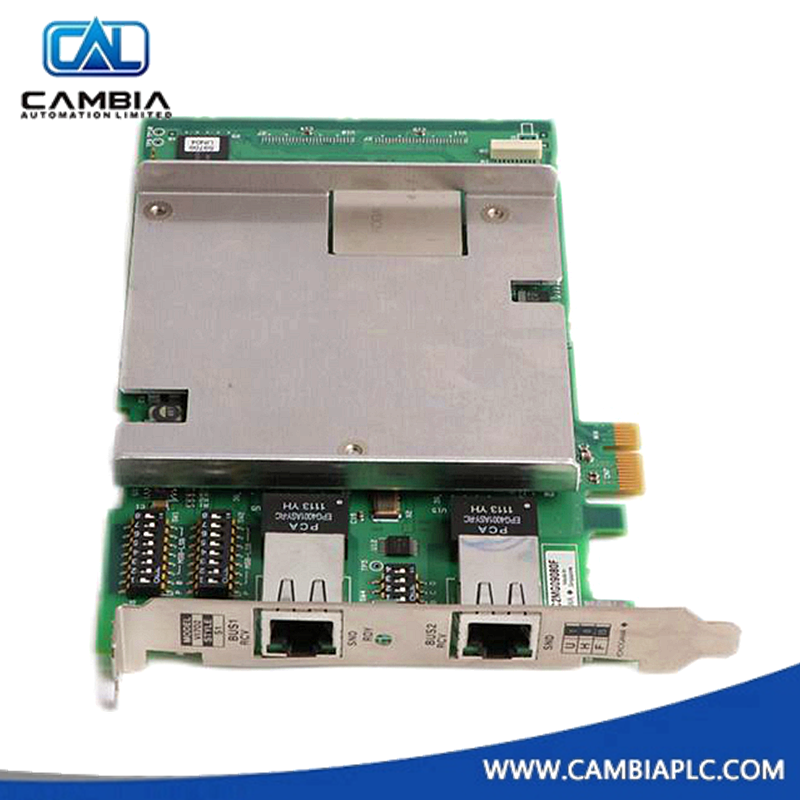

Yokogawa VI702

Vnet/IP Interface Card for CENTUM VP and ProSafe-RS

Product Description

The Yokogawa VI702 is a Vnet/IP interface card designed for use in Yokogawa control systems, particularly within the CENTUM VP and ProSafe-RS platforms. It enables high-speed, deterministic communication between field control stations (FCS) and other system components over Vnet/IP, Yokogawa’s real-time Ethernet-based control network.

Technical Specifications

Parameter Specification
Manufacturer Yokogawa Electric Corporation
Model Number VI702
Product Type Vnet/IP Interface Card
Network Protocol Vnet/IP (Ethernet-based)
Power Supply Voltage 3.3 VDC ±9%
Maximum Current Consumption 2.5 A
Diagnostic Indicators RDY (Ready), RCV (Receive), SND (Send)
Ethernet Connector RJ45 (CAT5e cable recommended)
Compatible Systems CENTUM VP, ProSafe-RS
Replacement For Vnet/IP Interface Card V1701
Weight 0.18 kg
Shipping Weight 1.5 kg
Warranty 12 months (varies by supplier)

Dimensions and Weight

Attribute Specification
Module Width Standard single-slot card
Approximate Weight 0.18 kg
Shipping Weight 1.5 kg (with packaging)
Installation Orientation Horizontal card slot in FCS rack
Cooling Method Passive (natural convection)

Product Questions

  • Q: What is the function of the VI702 in a Yokogawa control system?
    A: The VI702 serves as the communication interface between the field control station and other system components via Vnet/IP. It enables real-time data exchange and system synchronization.
  • Q: Is the VI702 compatible with legacy systems?
    A: Yes. It is designed as a direct replacement for the V1701 card and is compatible with existing CENTUM VP and ProSafe-RS architectures.
  • Q: What diagnostic indicators are available on the module?
    A: The module includes three LEDs: RDY (diagnostic OK), RCV (receiving data), and SND (transmitting data), which assist in basic operational status monitoring.
  • Q: What type of cable should be used for Ethernet connection?
    A: A CAT5e (Enhanced Category 5) cable is recommended for optimal performance and compliance with Vnet/IP specifications.
  • Q: Is firmware required for operation?
    A: Yes. The VI702 operates with system firmware managed by the FCS. Firmware compatibility should be verified during system integration.
