Rotating machinery rarely fails overnight. Vibration channels do. A plant trips a turbine because a cable chafed, a junction oxidized, or a technician swapped a proximitor without recalibrating. Bently Nevada 3500 and Emerson Ovation Epro both announce faults aggressively. However, the announcement is not the diagnosis. First, always treat a single-channel alarm as a data problem. Second, treat multi-bearing alarms as a machine problem. Third, correlate with phase, thrust, and speed before accepting any trip. These three rules save real money and prevent unnecessary downtime.
Probe, Extension Cable, and Proximitor: Field Checks

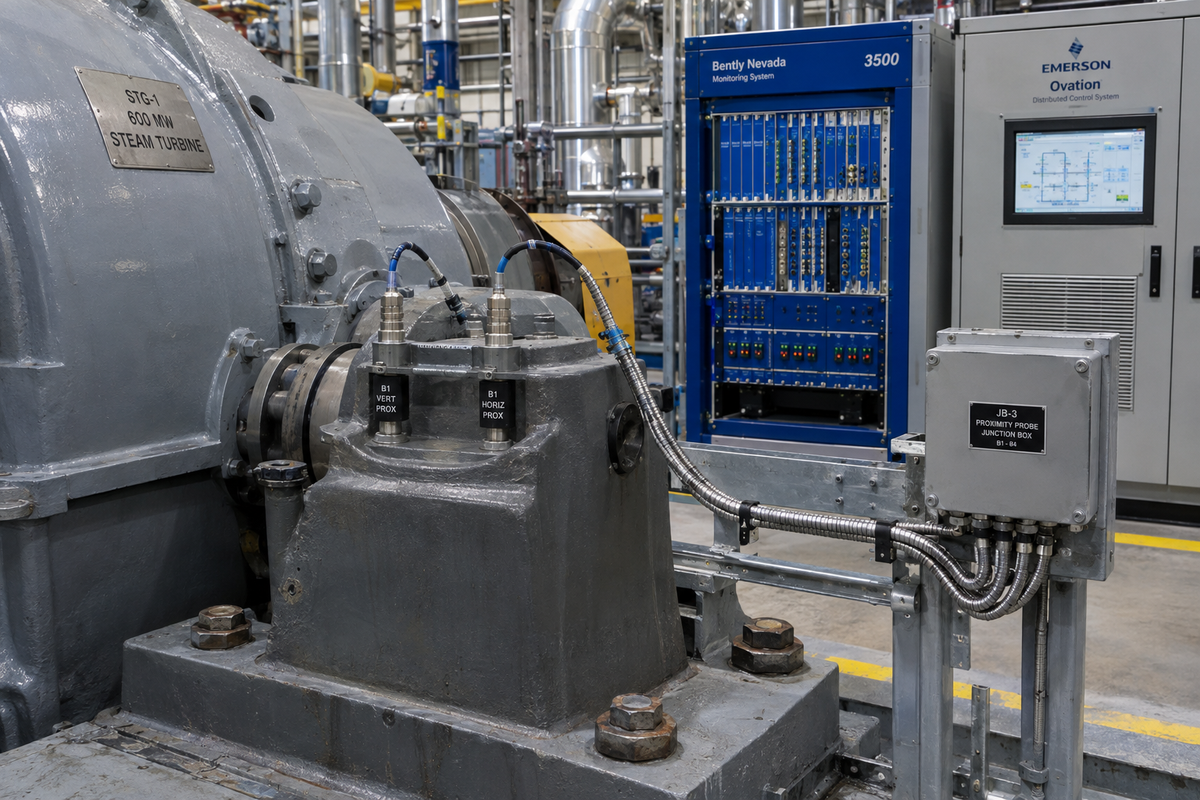

Start at the physical layer by inspecting the transducer assembly: the Bently Nevada 3300 XL 8mm proximity probe, the matched 3300 XL extension cable, and the 3300 XL proximitor sensor. Check every connector and confirm torque on the coaxial bulkhead fittings.
The junction where the probe meets the extension cable requires the special self-fusing tape Bently Nevada ships with the probe. Never substitute Teflon: Teflon leaves the junction vulnerable to electromagnetic noise from adjacent variable-frequency drives. Wrap the joint twice, then over-wrap with a half-lap of PVC tape. That pattern is a proven field standard.
Next, monitor gap voltage for at least fifteen seconds. Typical targets are -8.5 V or -9.5 V for 8 mm probes on 3300 series extension systems (always confirm against the specific system datasheet). Tap the probe cable gently with one finger while observing the meter: gap voltage must remain dead still. Any deflection indicates an internal conductor break. Replace the assembly immediately rather than chasing an intermittent phantom fault.
Linearity Test and Component Substitution
When gap voltage looks clean but vibration readings remain abnormal, run a linearity check with a micrometer spindle calibration fixture. Step the target through the calibrated range, recording output at every tenth of a millimeter. The Bently 3300 XL 8 mm system should hold ±2% incremental scale factor (ISF) across the linear range from 0.5 to 2.0 mm. Deviation outside this tolerance indicates component failure.
- Step 1 — Known-Good Substitution (Probe): Pair the suspect probe with a known-good extension cable and proximitor. Retest.
- Step 2 — Known-Good Substitution (Cable): Pair the suspect extension cable with a known-good probe and proximitor. Retest.
- Step 3 — Known-Good Substitution (Proximitor): Pair the suspect proximitor with a known-good probe and cable. Retest.
- Step 4 — Component Replacement: Replace whichever leg produced non-linearity, and verify DC loop resistance against the datasheet specification.
- Step 5 — Verification Sweep: Repeat the full linearity sweep on the restored assembly before releasing the machine back to service.
Emerson Ovation Epro and the Modbus TCP Register Map
The Emerson Ovation Epro vibration system integrates directly into the Ovation distributed control system using dedicated I/O and processor hardware like the Emerson Ovation automation controller module. Its channels publish shaft displacement, casing velocity, thrust position, and bearing temperature. Modbus TCP servers—such as the Bently Nevada 3500/92 Gateway Module—expose these measurements to plant historians, alarm routers, and condition-monitoring platforms.
However, register-map drift is a silent hazard. When a firmware update shifts base register offsets by just one address, half the plant's historian trends break silently. Freeze the register map in a versioned YAML file and cross-check after every Epro or 3500 firmware upgrade. Standardize on Function Code 03 for holding registers and Function Code 04 for input registers. Set polling intervals at 1 second for protection channels and 5 seconds for trend logging—faster polling on a shared bus risks TCP retry storms during plant grid disturbances.
API 670 Logic and the AND-Gate Trap
API 670 guidelines mandate that orthogonal X-Y shaft vibration be monitored using two perpendicular eddy-current probes. In monitoring racks such as the Bently Nevada 3500/42M Prox/Velom Module, trip relays implement this voting logic using configurable AND gates; Emerson Ovation Epro executes the equivalent in DCS software logic blocks.
A common commissioning pitfall occurs when the secondary probe is mis-wired: one channel reads active shaft displacement while the partner channel reads an open floating cable. Because the AND gate requires dual confirmation, the machine fails to trip during a severe dynamic event. Always perform a manual dynamic shake test on both probes during commissioning to confirm trip logic asserts as intended, and archive the captured shake-test waveform for API 670 compliance audits.
Conclusion & Action Advice
Vibration channel reliability demands a physical-first discipline. Walk the machine deck, inspect terminal torque, seal connectors with approved tape, and verify DC gap voltages under steady conditions. Run linearity sweeps with a micrometer fixture rather than adjusting software scaling factors. Bridge to DCS and supervisory platforms using strictly version-controlled Modbus register maps, and re-verify AND-gated trip interlocks before each startup. A turbine protection system that trips only on genuine machine distress protects both personnel and plant capital.
