Bently Nevada 165844-14 3300 XL 8mm Proximity Probe
In stock, ready to ship
Manufacturer: Bently Nevada
Product No.: 165844-14
Product Type: Proximity Probe
Product Origin: USA
Payment: T/T
Weight: 300g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
Product Description:

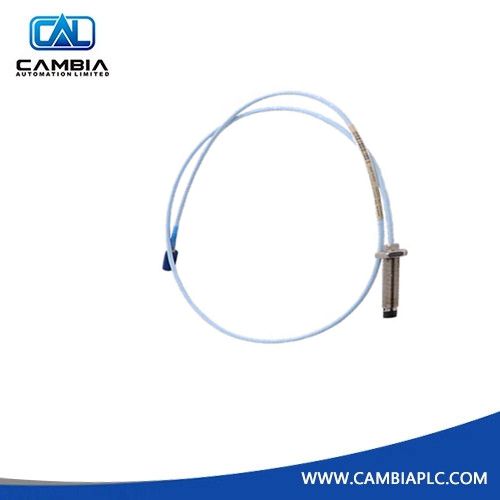

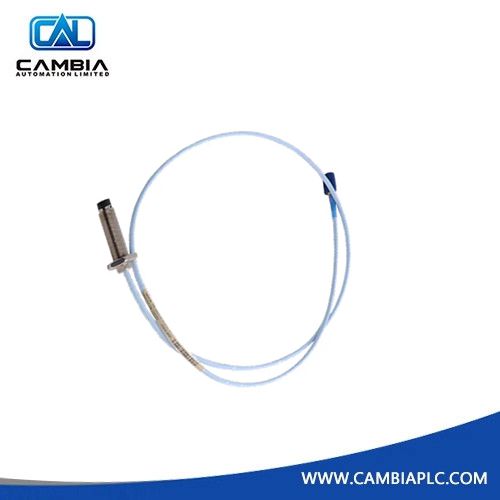

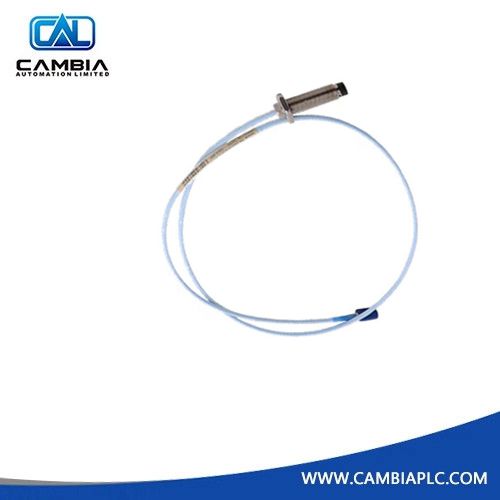

The 165844-14 is a high-precision non-contact displacement sensor designed for critical machinery monitoring. Part of the renowned 3300 XL 8mm Proximity Transducer System, this probe is engineered to measure key parameters like radial vibration, shaft position, and axial thrust. Utilizing eddy current technology, the 165844-14 generates a linear voltage output that is directly proportional to the gap between the probe tip and the target material, such as a rotating shaft.
The 3300 XL series is recognized for its Extended Linear Range, enabling accurate measurements even if the probe is not perfectly centered within its sensing field. This model features a 1.4-meter (4.6 ft) integrated cable and is compatible with 3300 XL Proximitors and extension cables, allowing for total system lengths of 5 or 9 meters.
Technical Specifications:
| Specification | Details |
|---|---|
| Probe Tip Diameter | 8 mm |
| Series Compatibility | 3300 XL (Compatible with 3300 and 3300 XL Proximitors) |
| Total Cable Length | 1.4 meters (4.6 feet) |
| Thread Type | Standard 3/8-24 UNF (verify mounting thread per P/N) |
| Linear Range | 2.0 mm (80 mils), starting at approximately 0.25 mm (10 mils) |
| Sensitivity | 7.87 V/mm (200 mV/mil) with AISI 4140 steel target |
| Operating Temperature | -52°C to +177°C |
| Environmental Rating | Fully encapsulated; moisture-resistant, for submerged oil applications |
| Connector Type | Miniature coaxial ClickLoc™ connector (gold-plated) |
Advanced Measurement Capability:
The 165844-14 features high-resolution signal processing, minimizing cross-talk and interference in high-density sensor environments. The rugged PPS (Polyphenylene Sulfide) tip is chemically resistant to industrial lubricants and solvents, ensuring long-term measurement accuracy even in harsh turbine or compressor environments.
Frequently Asked Questions:
Q: Can this probe be used without an extension cable?
A: No, the 165844-14 requires pairing with a correct length extension cable (typically 3.6m or 7.6m) to match the total system length required for proper calibration with the 3300 XL Proximitor®.
Q: What does the "-14" suffix signify?
A: The "-14" suffix in Bently Nevada's part number usually refers to the unthreaded length or the total length of the integrated cable (in this case, 1.4 meters). It's important to verify specific housing requirements (e.g., threaded vs. smooth) before installation.
