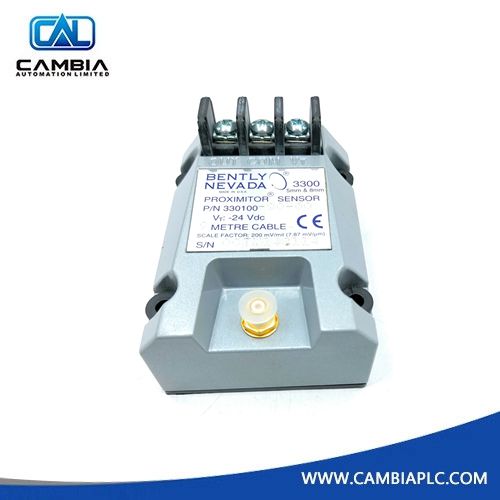

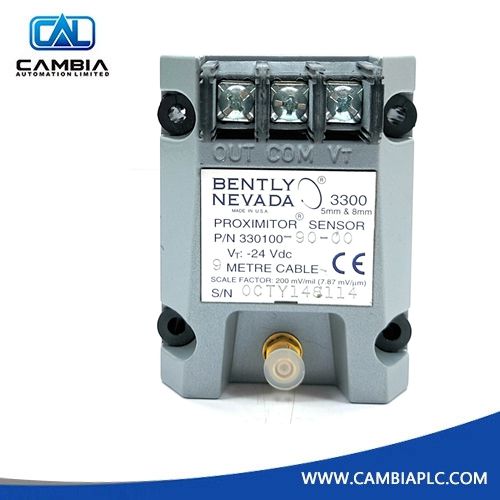

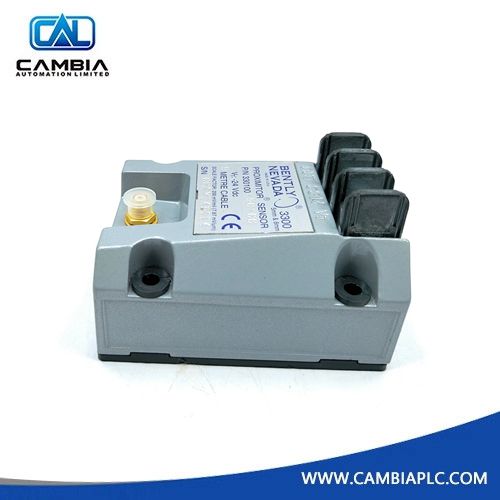

Bently Nevada 330100-90-00 3300 XL Proximitor Sensor
In stock, ready to ship
Manufacturer: Bently Nevada
Product No.: 330100-90-00
Product Type: 3300 XL Proximitor Sensor
Product Origin: USA
Payment: T/T
Weight: 500g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
Product Description
The Bently Nevada 330100-90-00 is a high-precision Proximitor Sensor and the core electronic component of the 3300 XL 8 mm Proximity Transducer System. It measures shaft vibration, axial position, and speed on critical rotating machinery by converting the change in gap between a proximity probe and the target into a standardized voltage output of 200 mV/mil.
The “-90” configuration is calibrated for a 9.0-meter total system length, enabling longer cable runs between machinery and monitoring cabinets, providing greater flexibility in large-scale plants. Like all 3300 XL components, this sensor offers Total Interchangeability, meaning it can be used with any 3300 XL 8 mm probe and extension cable, provided the total physical length matches the 9.0 m calibration.
Technical Specifications
| Feature | Specification |
|---|---|
| Product Series | 3300 XL 8 mm Proximity Transducer System |
| Part Number | 330100-90-00 |
| Total System Length | 9.0 m (29.5 ft) |
| Output Scale Factor | 7.87 V/mm (200 mV/mil) |
| Linear Range | 2.0 mm (80 mils) |
| Input Voltage | -17.5 V DC to -26 V DC |
| Frequency Response | 0 Hz (DC) to 10 kHz |
| Operating Temperature | -51 °C to +100 °C |
Application Scenarios
The 330100-90-00 is essential for machinery protection and condition monitoring in:
-
Steam and Gas Turbines: Monitoring radial vibration to detect rotor unbalance or bearing issues.
-
Centrifugal Compressors: Tracking axial thrust to prevent catastrophic internal contact.
-
Hydroelectric Generators: Measuring eccentricity and shaft runout at low speeds.
-
Keyphasor® Applications: Providing once-per-turn timing pulses for vibration phase analysis.
Frequently Asked Questions
Q: Can I use a 5-meter extension cable with this 9-meter sensor?
A: No. Using a shorter cable with a sensor calibrated for 9 m will result in non-linear output and an incorrect scale factor. The sensor’s system length must match the combined probe + cable length.
Q: What are the advantages of the 3300 XL over older 3300 models?
A: The 3300 XL offers improved temperature stability, better signal-to-noise ratio, and features the ClickLoc connector system, which prevents connectors from loosening due to machinery vibration.
