A reference design for SIL3 networks that must pass a TÜV review on a shared brownfield plant.

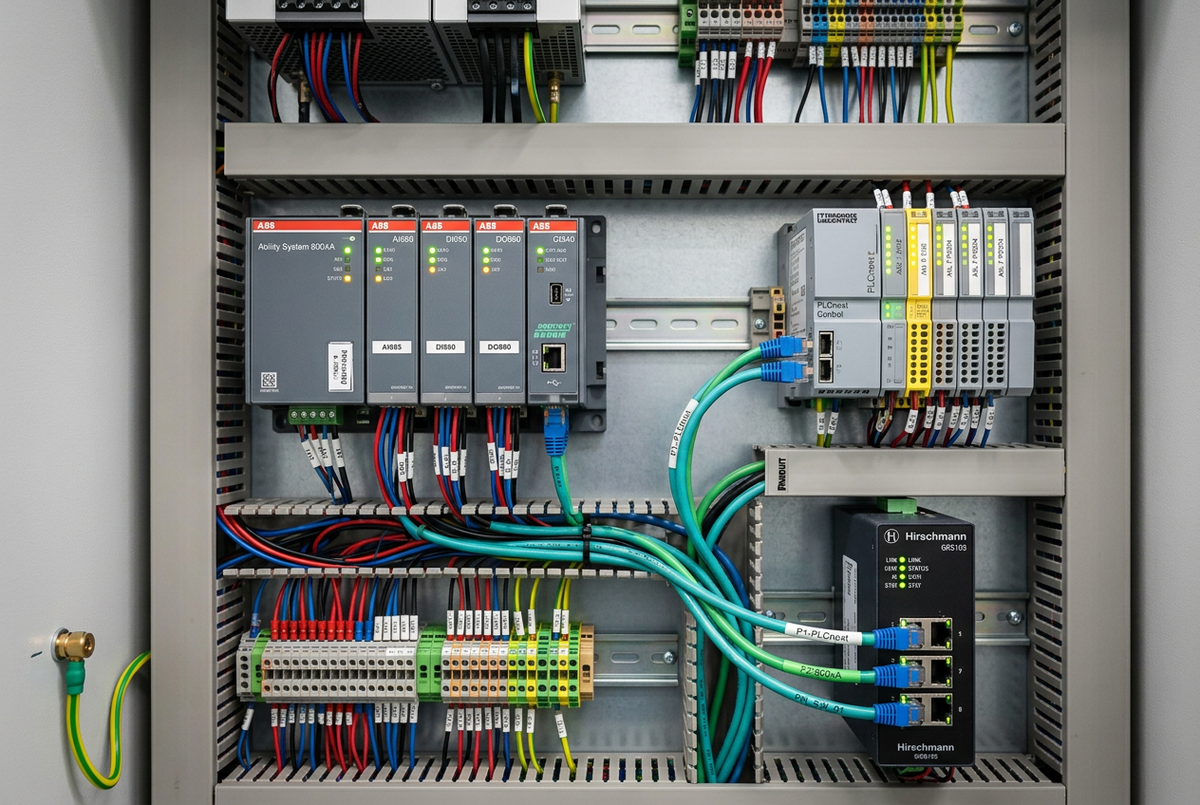

Where 800xA and PLCnext Meet in Modern Plants
Water utilities, food plants, and material-handling sites increasingly split control across two families. ABB Ability 800xA handles process loops, historian, and operator interface. Phoenix Contact PLCnext handles skid-level safety I/O, remote actuators, and machine interlocks. Both speak PROFINET. However, that common language does not automatically yield a compliant safety architecture. IEC 61784-3 and the PROFINET Redundancy Guide set the rules. Follow them. A shortcut here fails the safety audit later. Therefore, start from the network, not from the code.
PROFINET RT, IRT, and the Role of PROFIenergy
PROFINET RT is best-effort. It works fine for standard control. It is not sufficient for a safety function. PROFINET IRT reserves time slices on the wire. That reservation gives deterministic latency under one millisecond. Moreover, IEC 61784-3 Profile 4 requires IRT for the highest-permission safety loops. Profile 1 allows RT with strict supervision. Choose deliberately. Document the choice inside the safety requirement specification. If you skip that paperwork, the assessor will reject the architecture regardless of performance.
- Step 1 — Classify every loop as control, monitoring, or safety.
- Step 2 — Assign safety loops to IRT Cycle Class 1 or 2. Cycle Class 3 is a compromise.
- Step 3 — Reserve bandwidth for background PROFIenergy traffic, HSE bridges, and diagnostics.
- Step 4 — Publish the schedule to every managed switch on the segment.
- Step 5 — Freeze the plan in a versioned GSDML registry.
PROFIsafe Address Allocation and Watchdog Timing
PROFIsafe rides on the same PROFINET frame. It appends a safety telegram with a sequence counter and a CRC. Every safety device carries a 16-bit PROFIsafe address. That address must be unique across the entire plant, not just the segment. Therefore, plan the address range at the enterprise level. A common convention assigns the high byte to the plant unit and the low byte to the loop. Phoenix Contact PLCnext fail-safe modules accept the address via the PLCnext Engineer tool. ABB AC 131 safety modules accept the address via 800xA Control Builder. Both tools warn on duplicates. However, warnings disappear if you skip a project review. Enforce the review.
Second, tune the F-watchdog. Standard PROFIsafe watchdog is 100 milliseconds. Reduce it for high-speed E-stops. Increase it for cold-start machines. Verify the resulting PFDavg against the SIL target. Then confirm with a stopwatch measurement at the field device, not from the engineering station.
AC 500 V3 and PLCnext EIP 300 Sizing Rules
ABB's AC 500 V3 supports redundant C3 Ethernet and dual power supplies, often paired with a Phoenix Contact QUINT redundancy module to ensure uninterrupted supply. It hosts safety programs through the 800xA Safety Control Builder. Program cycle time should stay below forty milliseconds on a SIL3 loop. Phoenix Contact's PLCnext EIP 300 fail-safe CPU supports up to 31 safety modules per station. Its safety scan runs in fifteen milliseconds by default. However, mixing scan classes on a shared segment increases jitter. Therefore, keep safety scan classes isolated from high-throughput vision or barcode traffic. Finally, size the power supply with twenty percent headroom using a robust supply such as the Phoenix Contact 2866718 Power Supply Unit. Undersized rails cause intermittent safety faults that mimic real trips.
Physical Layer Discipline: Cables, Switches, and VLANs
A safety network is only as strong as its patch panel; deploying a dedicated Phoenix Contact 2901646 Patch Panel ensures clean line termination and shield continuity. Use shielded S/FTP Cat 6A on every safety leg. Ground both ends. Route safety cables at least one hundred fifty millimeters from power drives. Where crossing is unavoidable, cross at ninety degrees. Second, choose managed industrial switches with IGMP snooping enabled, such as the ABB 3BSE080207R1 Network Switch. Without it, multicast safety traffic floods the segment. Third, isolate safety and standard traffic on separate VLANs. Fourth, enable Media Redundancy Protocol or High-availability Seamless Redundancy. MRP recovers in about twenty milliseconds. HSR recovers instantly. However, HSR doubles switch cost. Choose based on the process, not on marketing.
Cyber Segmentation Under IEC 62443
Moreover, IEC 62443-3-3 defines zones and conduits for industrial networks. Treat the safety PLC segment as a Zone with a Security Level target of SL2. Place a firewall between it and the historian segment. However, do not firewall the safety traffic to the physical trip devices. The trip must remain wired. Third, disable unused switch ports. Fourth, force 802.1X authentication on engineering laptops. ABB and Phoenix Contact both support 802.1X through standard RADIUS. Finally, archive the switch configuration hash monthly. A quiet change to the switch is the classic precursor to a safety failure.
Conclusion & Action Advice
Hybrid 800xA and PLCnext architectures reward disciplined network design. First, classify every loop before writing code. Second, put safety traffic on PROFINET IRT with a documented profile choice. Moreover, allocate PROFIsafe addresses from a plant-wide range, not from station defaults. However, do not forget the physical layer. Cable routing, switch models, and patch discipline determine whether the design survives summer heat. Therefore, treat the network as a safety instrumented system, not as a plumbing task. Finally, rehearse a failover test every twelve months. Measure recovery with a stopwatch at the field device. Trust the measurement, not the datasheet. A documented architecture passes the audit. An undocumented one becomes the corrective action after the incident.
Author: Meihua Liu is an industrial automation engineer with over 10 years of experience in PLC, DCS, and control systems.
