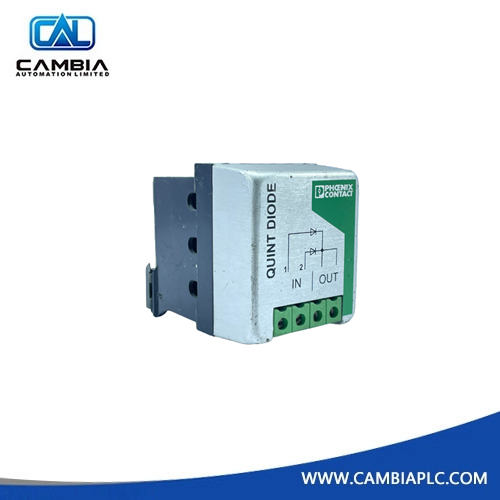

Phoenix Contact QUINT-DIODE/40 Redundancy Module Brand New

Phoenix Contact QUINT-DIODE/40 Redundancy Module Brand New

Overview

The Phoenix Contact QUINT-DIODE/40 Redundancy Module is a specialized electronic device designed to provide a redundant power supply for critical applications. This module is specifically designed for use with Phoenix Contact QUINT power supplies, ensuring a highly reliable and uninterrupted power source for your equipment.

Input Data

• DC Operation:

• 2x 19 A (6 mm² at 40°C)

• 1x 39 A (6 mm² at 40°C)

• 2x 16 A (6 mm² at 60°C)

• 1x 32 A (6 mm² at 60°C)

• 2x 27 A (10 mm² at 40°C)

• 1x 54 A (10 mm² at 40°C)

• 2x 21 A (10 mm² at 60°C)

• 1x 43 A (10 mm² at 60°C)

• 2x 30 A (16 mm² at 40°C)

• 1x 60 A (16 mm² at 40°C)

• 2x 24 A (16 mm² at 60°C)

• 1x 48 A (16 mm² at 60°C)

• 2x 20 A

• 1x 40 A

• Input Voltage: 24 V DC

• Nominal Input Voltage Range: 24 V DC

• Input Voltage Range: 0 V DC ... 30 V DC

• Voltage Type of Supply Voltage: DC

• Reverse Polarity Protection: < 60 V

• Nominal Input Current (I_N):

• Maximum Current (I_max):

• Transient Surge Protection: Transil diode

• Voltage Drop, Input/Output: 0.5 V

Output Data

• Efficiency: > 97 %

• Nominal Output Voltage: 24 V DC

• Nominal Output Current (I_N): 40 A

• Power Loss Nominal Load Max.: 20 W

• Connection in Series: No

Dimensions

• Width: 62 mm

• Height: 84 mm

• Depth: 102 mm

• Horizontal Pitch: 3.4 Div.

Ambient Conditions

• Degree of Protection: IP20

• Ambient Temperature (Operation): -25 °C ... 70 °C (Derating above 60 °C; Recommended operating range: -25 °C ... 60 °C)

• Ambient Temperature (Storage/Transport): -40 °C ... 85 °C

• Max. Permissible Relative Humidity (Operation): ≤ 95 % (at 25 °C, non-condensing)
