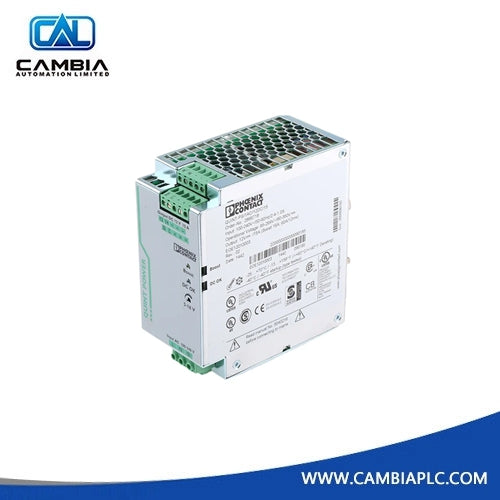

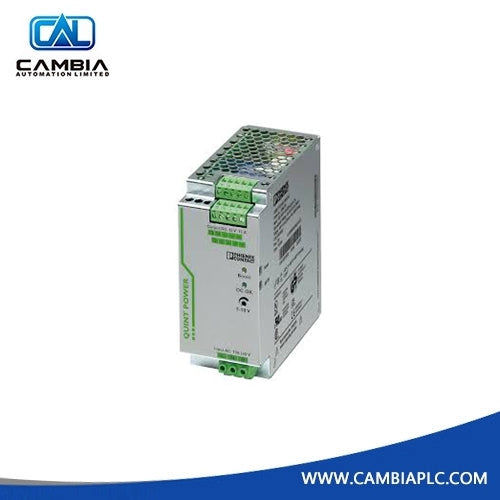

Phoenix Contact 2866718 Power Supply Unit in Stock

Phoenix Contact 2866718 Power Supply Unit in Stock

• Type: Primary-switched power supply unit

• Technology: QUINT POWER, SFB Technology (Selective Fuse Breaking)

• Connection: Pluggable screw connection, DIN rail mounting

• Input: 1-phase

• Output: 12 V DC / 15 A

• Nominal Input Voltage Range: 100 V AC ... 240 V AC

• Input Voltage Range: 85 V AC ... 264 V AC / 90 V DC ... 350 V DC (UL 508: ≤ 250 V DC)

• Electric Strength, Max: 300 V AC

• Voltage Type of Supply Voltage: AC/DC

• Inrush Current: < 15 A

• Inrush Current Integral (I²t): < 1.5 A²s

• AC Frequency Range: 45 Hz ... 65 Hz

• Frequency Range DC: 0 Hz

• Mains Buffering Time: > 65 ms (120 V AC) / > 65 ms (230 V AC)

• Current Consumption: 1.9 A (120 V AC) / 0.9 A (230 V AC) / 1.9 A (110 V DC) / 0.9 A (220 V DC)

• Nominal Power Consumption: 210 VA

• Protective Circuit: Transient surge protection; Varistor

• Typical Response Time: < 0.5 s

• Input Fuse: 6.3 A (slow-blow, internal)

• Permissible Backup Fuse: B10 B16 AC

• Permissible DC Backup Fuse: Connect a suitable fuse upstream

• Recommended Breaker for Input Protection: 10 A ... 16 A (AC: Characteristics B, C, D, K)

• Discharge Current to PE: < 3.5 mA

• Efficiency: > 89 % (for 230 V AC and nominal values)

• Output Characteristic: U/I

• Nominal Output Voltage: 12 V DC ±1 %

• Setting Range of the Output Voltage (USet): 5 V DC ... 18 V DC (> 12 V DC, constant capacity restricted)

• Nominal Output Current (I_N): 15 A (-25 °C ... 60 °C)

• POWER BOOST (I_Boost): 16 A (-25 °C ... 40 °C permanent)

• Selective Fuse Breaking (I_SFB): 60 A (12 ms)

• Magnetic Circuit Breaker Tripping: B2 / B4 / B6 / C2 / C4

• Derating: 60 °C ... 70 °C (2.5 %/K)

• Feedback Voltage Resistance: Max. 25 V DC

• Protection Against Overvoltage at the Output (OVP): < 25 V DC

• Control Deviation:

• < 1 % (change in load, static 10 % ... 90 %)

• < 2 % (change in load, dynamic 10 % ... 90 %)

• < 0.1 % (change in input voltage ±10 %)

• Residual Ripple: < 10 mVPP (with nominal values)

• Short-Circuit-Proof: Yes

• Output Power: 180 W

• Maximum No-Load Power Dissipation: 5 W

• Power Loss Nominal Load Max.: 21 W

• Rise Time: < 0.5 ms

• Width: 60 mm

• Height: 130 mm

• Depth: 125 mm
