Why plants bypass safety functions, how to do it under control, and how to prove you stayed compliant.
Bypass Is Sometimes Necessary, Never Casual
Every process plant eventually faces this choice. A transmitter fails at 2 a.m. The safety function it feeds demands a trip. Shutting down costs a fortune in production. Therefore, the operations team asks whether the function can be bypassed until replacement hardware arrives. A recent instrumentationtools.com review addressed this dilemma directly. Regulations draw the boundary. The US rule 30 CFR 250.803(c)(1) permits bypassing safety devices only for startup, maintenance, or testing. Moreover, only the minimum number of devices may leave service, and personnel must monitor them until restoration. IOGP Report 38 calls bypassing detestable. However, the European Process Safety Center accepts managed override as a fundamental practice. The difference between the two views is management. An unmanaged bypass is a ticking incident. A managed bypass is a controlled, temporary risk.
Inhibit, Override, and Three Bypass Types
First, know your vocabulary. Inhibit cuts the signal path, so the logic never sees the field value. Override substitutes a forced healthy value instead. Both degrade the safety function identically. Second, classify every bypass event. A planned bypass covers instrument calibration or scheduled proof testing. An unplanned bypass responds to a random hardware failure. A permissive bypass supports startup, where conditions legitimately exceed trip settings. Each type needs its own risk review, duration limit, and approval level. Moreover, the hazard study must define the compensating measures before the bypass begins. Extra operator watch, fire watch, increased patrol frequency, or a temporary hardwired alarm all count. Therefore, write these measures into the permit form. A bypass without compensating measures is just an uncontrolled shutdown avoidance.
A Nine-Step Controlled Bypass Procedure
- Step 1 — Raise a bypass request with reason, affected SIF, and requested duration.
- Step 2 — Run a documented risk assessment covering failure modes and affected hazard areas.
- Step 3 — Verify the remaining protective layers, such as relief valves or other independent SIFs.
- Step 4 — Define compensating measures and assign a named responsible person.
- Step 5 — Obtain authorization per the plant MOC and bypass hierarchy, never verbally.
- Step 6 — Apply the bypass in the SIS, log it in the bypass register, and flag it visibly.
- Step 7 — Annunciate the state continuously, with a flashing BYPASS ACTIVE alarm at the operator console.
- Step 8 — Monitor the process manually at the agreed patrol interval until restoration.
- Step 9 — Restore, verify by functional test, close the permit, and audit the bypass duration record.
Implementation on Triconex Platforms

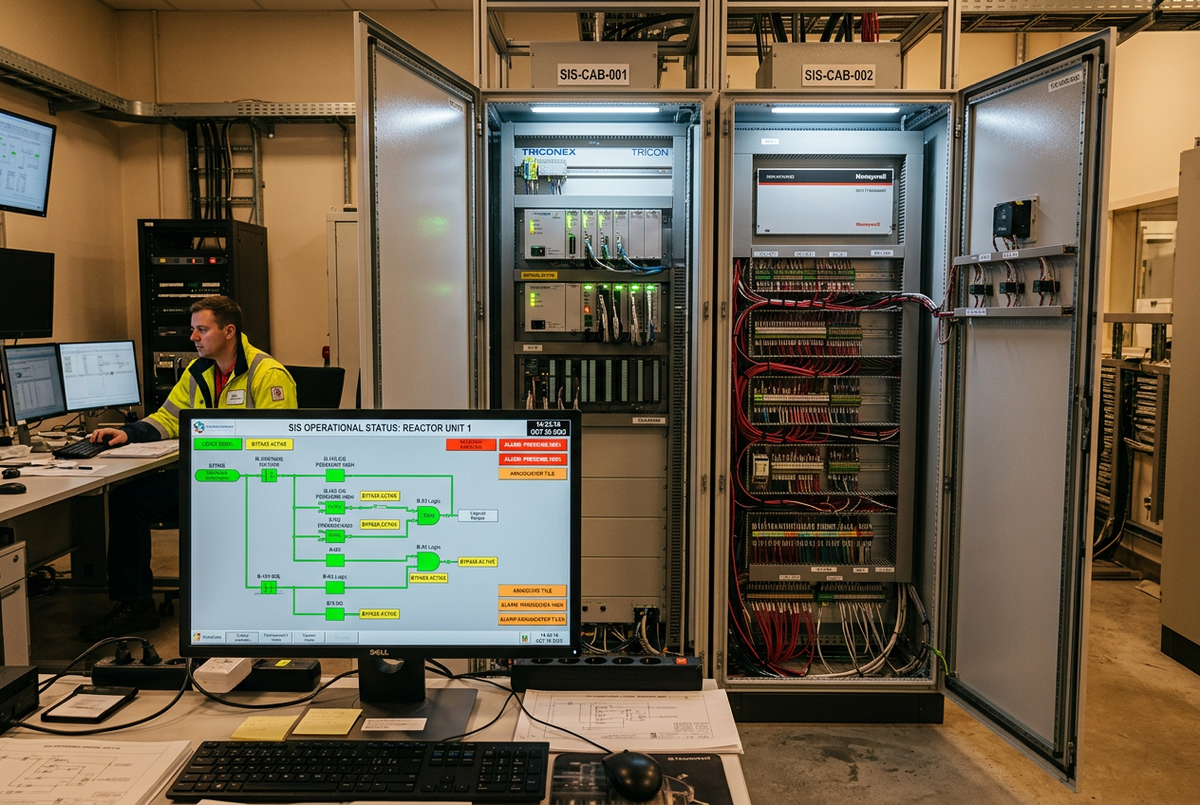

Triconex Tricon and Trident controllers support forcing at the I/O level through TriStation 1131. A forced input overrides the voted field signal in the logic solver, whether applied on analog channels such as the Triconex 3704E Analog Input Module or digital field loops wired into a Triconex DI3311 Digital Input Module. However, forces persist quietly unless you build visibility around them. Therefore, never rely on the engineering station alone. Add a separate force-status report to the shift routine. Moreover, export the active force table daily and attach it to the bypass register. Best practice uses a dedicated bypass flag per SIF in the application logic. The flag drives a hardwired annunciator window and a Modbus TCP register read by the DCS via high-integrity interfaces like the Triconex 4352AN Communication Module. That gives operators continuous, independent confirmation. Triple modular redundancy protects against random hardware faults. It does not protect against a deliberate, long-forgotten force. Consequently, count every active force at shift handover, and treat an unexpected force as a plant upset.
Implementation in Honeywell Safety Manager
Honeywell Safety Manager handles overrides through Safety Builder function blocks with built-in bypass logic. The standard pattern adds an inhibit input, a permissive condition, and a bypass-active output to each safety function. Because the logic is compiled, auditors can trace exactly which functions are degraded, including executive action routed through digital output hardware like the Honeywell FC-DO-1624 Safety Manager Digital Output Module alongside field termination assemblies such as the Honeywell FC-TDO-1624 Field Termination Assembly. Furthermore, Safety Manager exposes bypass states to the Experion PKS system as first-class alarms. Operators see a persistent yellow indication rather than a hidden condition. Use that indication ruthlessly. Configure an independent, non-silenceable summary alarm when any bypass exceeds its permitted duration. In addition, link each bypass action to the plant maintenance system. The work order should hold the same tag, permit number, and restoration deadline. Finally, run a monthly bypass audit. Count active overrides against the register. Any mismatch means somebody bypassed a function without a permit, and that finding deserves a serious incident review.
Conclusion & Action Advice
Bypass is a tool, not a habit. First, permit it only for startup, maintenance, and testing, exactly as regulation demands. Second, demand a risk assessment and compensating measures for every single event. Moreover, make bypass states loudly visible on both Triconex and Honeywell platforms through alarms, reports, and daily force counts. However, visibility alone is insufficient. Therefore, enforce duration limits with automatic escalation, and audit the register against the live controller state every month. Finally, treat restoration as seriously as application. A function returns to service only after a documented functional test. Plants that master this discipline keep production running without donating their safety margin.
