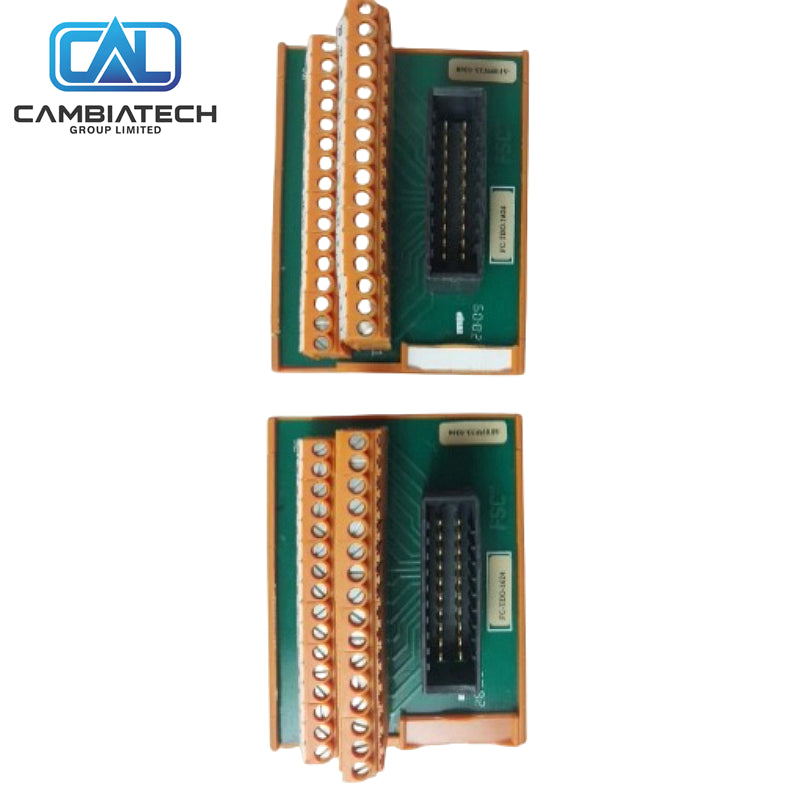

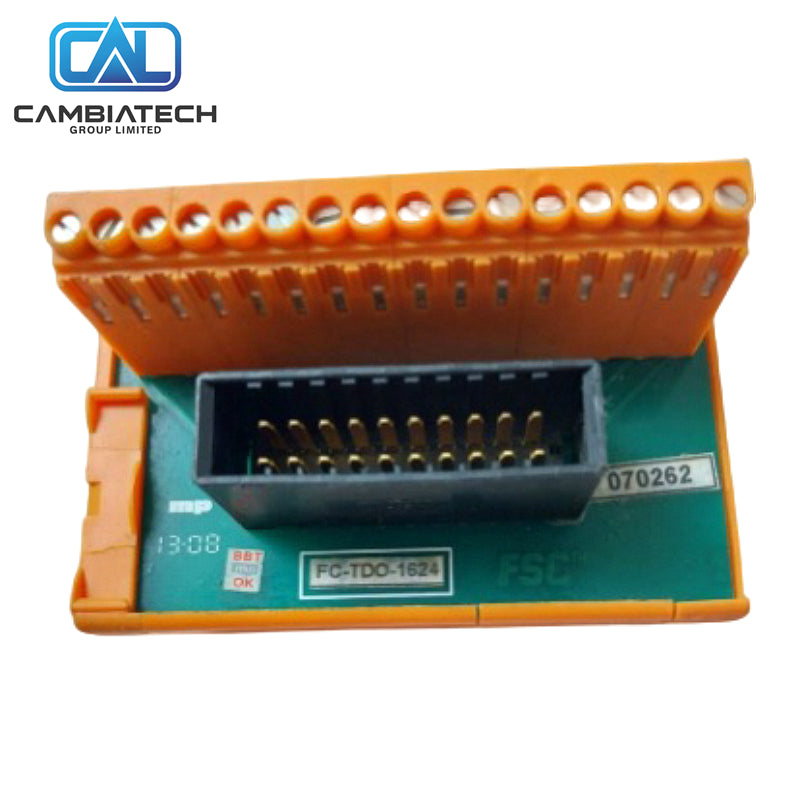

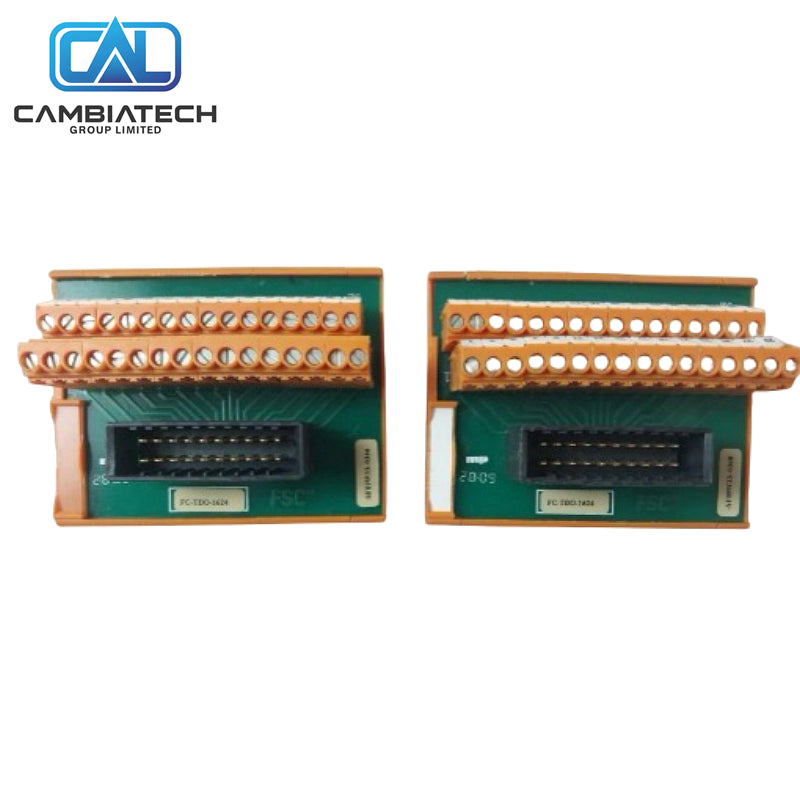

Honeywell FC-TDO-1624 16ch 24VDC Non-Safe Digital Output FTA
In stock, ready to ship
Manufacturer: Honeywell
Product No.: FC-TDO-1624
Product Type: Digital Output Field Termination Assembly
Product Origin: USA
Payment: T/T
Weight: 1600g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
Product Overview
Honeywell FC-TDO-1624 is a non-safe 16-channel 24 VDC Digital Output Field Termination Assembly. It provides the interface between DO-1624 / DO-1224 output modules and field wiring via system interconnection cables in Safety Manager systems.
Key Specs
- Channels: 16
- Voltage: 24 VDC (max continuous 36 VDC class)
- Max continuous current per channel: 1.5 A (actual limit set by output module)
- Type: Non-safe digital output FTA
- Versions: FC- (conformal coated) / FS- (non-coated)
- Dimensions: Approx. 90 × 70 × 58 mm
- Connection: Screw terminals for field wiring
Why Choose This
- Dedicated FTA for non-safe digital outputs
- Simple screw-terminal field connection
- Compatible with DO-1624 series modules
- Conformal-coated FC version for harsh environments
Common Questions
- Safe or non-safe? Non-safe FTA.
- Channels? 16.
- Pairs with? DO-1624 / DO-1224 modules.
Mounting Steps
- Mount the FTA on the DIN rail or mounting plate.
- Connect the system interconnection cable (SICC type) from the DO module.
- Wire field devices to the screw terminals.
- Verify polarity and current ratings.
- Power up and test each output channel.
Buying Advice
- Select FC version when conformal coating is required.
- Confirm matching DO module and cable type.
- Useful spare for non-safe digital output termination.
