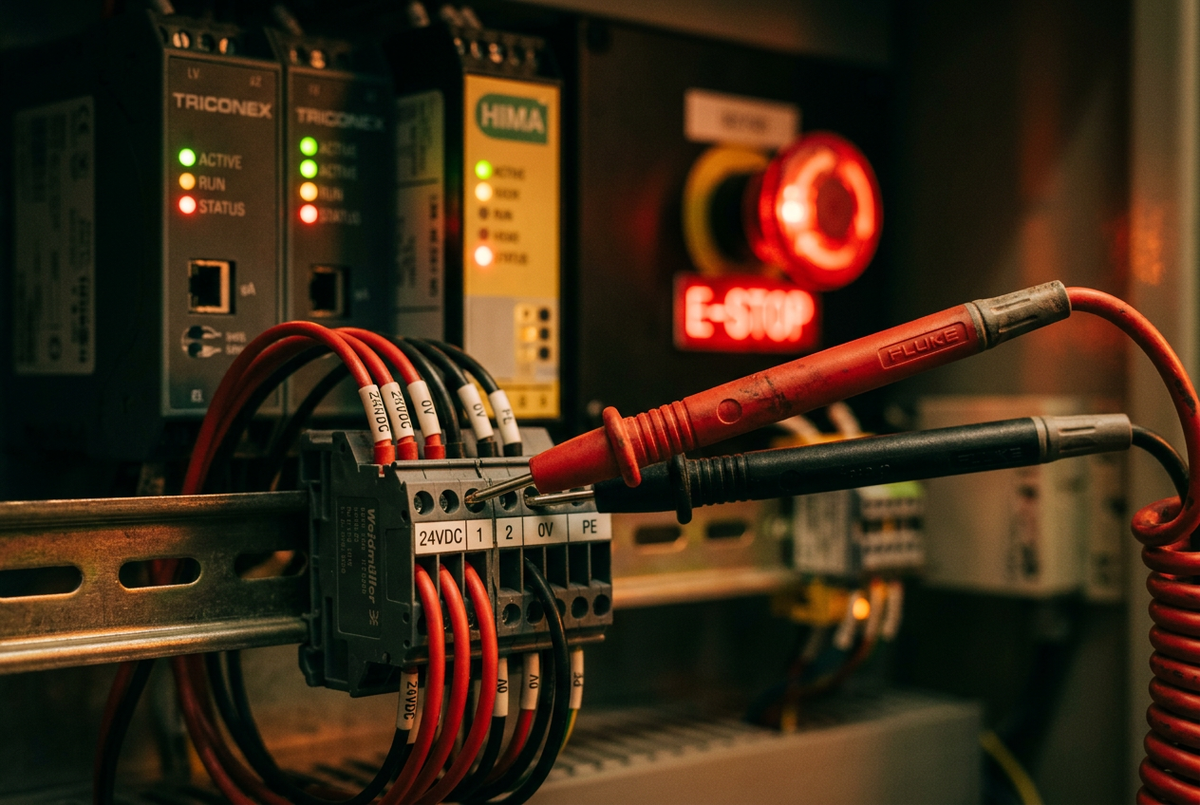

Triconex and HIMA Safety Platforms: Troubleshooting Series E-Stop Circuits Without Guesswork

A field-proven half-split voltage method, and the moment to move the loop into a safety PLC.

One Alarm, Three Suspects

Consider a familiar scene. A ten-meter conveyor stops dead. The HMI shows one generic message: Emergency Stop Active. Three E-stop buttons sit along the line, wired in series. The alarm never tells you which button opened. Many crews respond with the shotgun method. They replace every switch and hope. That wastes hours and spares. However, a systematic voltage survey finds the fault in minutes. A recent RealPars walkthrough demonstrated exactly this on a live conveyor. The method deserves a closer look from a safety-systems perspective. The same logic applies everywhere. It works on a relay string, a standard PLC input, or a Triconex or HIMA safety platform.

Why Normally Closed Wiring Is Non-Negotiable

E-stop contacts are normally closed by design. Voltage sits on the string continuously. This gives proof of continuity every scan. A broken wire or a corroded contact looks identical to a pressed button. Therefore the system fails safe on demand. A normally open design would hide faults until the day you actually need the trip. That delay is unacceptable in any SIL-rated function. Remember one physics detail during diagnosis. When a switch opens, you read 24 VDC across its terminals. The meter input impedance is extremely high, so almost no current flows. Kirchhoff's Voltage Law places the supply voltage across the break. Do not misread that as a healthy circuit.

The Half-Split Method, Step by Step

  1. Step 1 — Walk the line first. Look for physical damage, such as a pallet strike against a switch body.
  2. Step 2 — Set the meter to DC volts. Clamp the black lead on the 0 VDC common inside the panel.
  3. Step 3 — Probe the circuit midpoint. A 24 VDC reading proves every device upstream, including that section's switch.
  4. Step 4 — Split the remaining half again. Each measurement discards half the suspects.
  5. Step 5 — When voltage disappears between two points, inspect terminals for loose screws before swapping hardware.

Second, respect the continuity beeper. Many meters beep up to roughly fifty ohms. A degraded connection can beep and still be the fault. Live voltage testing beats resistance testing here. It needs no lockout, no wire removal, and no production loss. Use resistance checks only with the circuit isolated and LOTO applied.

Moving the Loop into Triconex

Series strings hide causes, so mature plants migrate to individual safety inputs. On a Triconex Tricon or Trident system, each E-stop lands on a dedicated triple modular redundant input channel, using dedicated hardware such as the Triconex DI3311 Digital Input Module. The chassis runs three processors and votes two-out-of-three. Discrepancy between channels raises a fault instead of a mystery trip. Moreover, the sequence-of-events function stamps each transition with millisecond resolution, transmitting timestamped diagnostics across interfaces like the Triconex 4352AN Communication Module to the supervisory network. The SOE log shows which contact opened first, on which module, at which time. That record converts troubleshooting from guesswork into reading. Keep the hardwired string as your transition baseline. Then compare old alarm timing against new SOE data during commissioning.

HIMA Diagnostics that Finish the Job

HIMA HIMax and HIQuad platforms add another layer. Their input modules, including the HIMax HIMA X-DI 3201 Digital Input Module or HIQuad units like the HIMA F3225 Digital Input Module and HIMA F3313 High-Reliability Digital Input Module, pulse-test each channel dynamically. The module detects welded contacts and wire breaks between scans. The system reports channel-level diagnostics to the engineering workstation with a plain-text cause. Therefore your technician arrives knowing the exact terminal number. Configure the project so every E-stop keeps its own tag, alarm text, and first-out flag. First-out logic is cheap to build and priceless after a trip. Finally, verify wetting current. Dry contacts need a few milliamperes to break through surface oxide. Starved contacts pass bench tests yet fail in service.

Conclusion & Action Advice

The half-split method remains the fastest cure for series E-stop pain. First, measure voltage, not resistance. Second, split the circuit at the midpoint and discard half the suspects each round. Moreover, treat the fifty-ohm beeper with suspicion. However, the deeper fix is architectural. Give each E-stop its own safety input on a Triconex or HIMA platform. Enable SOE and first-out reporting. Set wetting current deliberately. Therefore, schedule the migration during the next turnaround, and fold these checks into the IEC 61511 proof test. Finally, train every technician on the midpoint measurement. Ten minutes of voltage discipline saves a full shift of shotgun replacement.

Author: Jianhua Wang is an industrial automation engineer with over 10 years of experience in PLC, DCS, and control systems.
