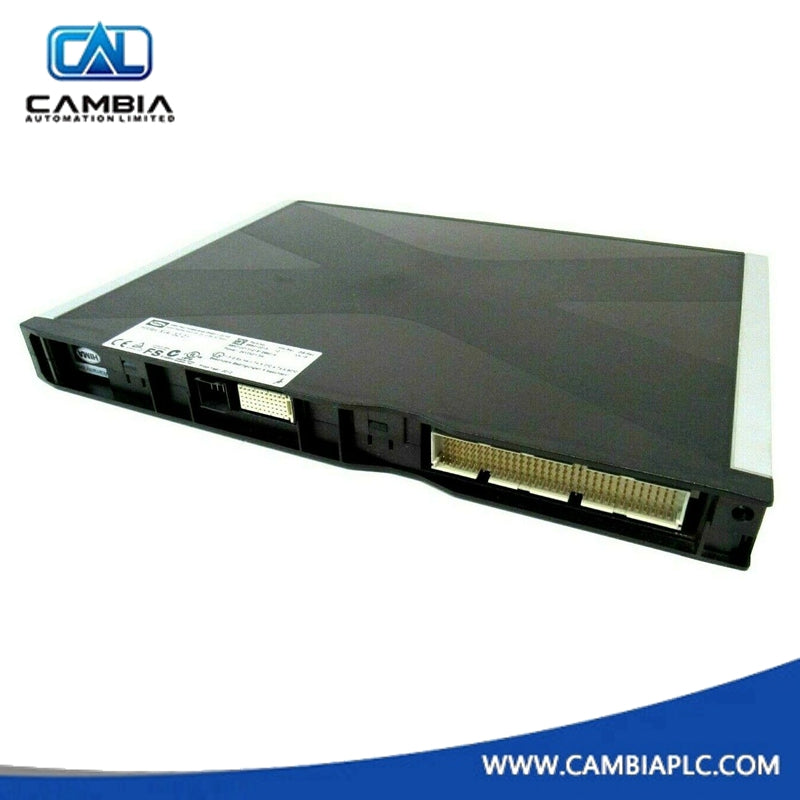

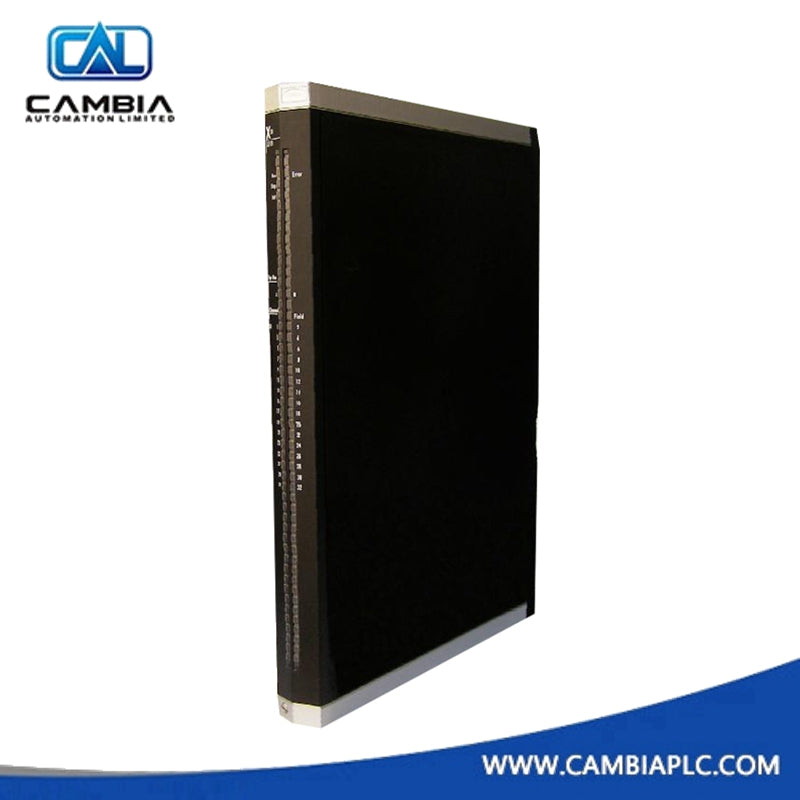

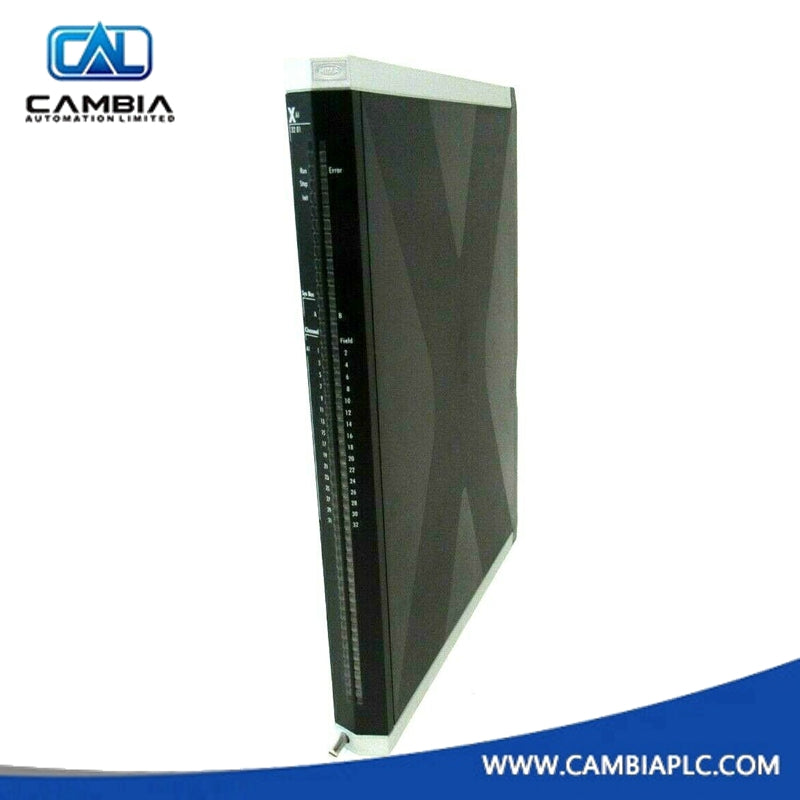

HIMA X-DI 3201 Digital Input Module

The HIMA X-DI 3201 (Part Number: 985210201) is a robust and reliable 32-channel digital input module designed for HIMA F-series and HIMax safety systems. This module is engineered to receive discrete 24 VDC signals from various field devices such as limit switches, push buttons, and interlocks. It ensures that these signals are accurately and safely delivered to the safety controller for further processing.

With advanced diagnostics features, the HIMA X-DI 3201 detects open circuits, short circuits, and signal loss, enhancing the overall safety and performance of the system. Its fully integrated SILworX configuration tool supports filtering, debounce settings, and fail-safe parameters, allowing for flexible and customizable operation.

Key Features of the HIMA X-DI 3201 Digital Input Module

• 32 Discrete Input Channels: The module features 32 input channels, allowing it to handle a large number of field devices for comprehensive monitoring and control.

• Electrical Isolation: Each input channel is electrically isolated with a 500 Vrms rating, ensuring safe operation and reducing the risk of electrical faults.

• Advanced Diagnostics: Includes diagnostics for open/short circuits and signal loss, improving fault detection and minimizing system downtime.

• SIL 3 Compliance: Meets SIL 3 requirements under IEC 61508 and IEC 61511, making it ideal for safety-critical applications in industries like oil & gas, chemical processing, and power generation.

• Redundancy Support: Compatible with TMR (Triple Modular Redundant) architectures, providing enhanced reliability for critical applications.

• Integrated Configuration Tool: The SILworX tool provides flexible configuration options, including filtering, debounce settings, and fail-safe parameters.

Technical Specifications

The HIMA X-DI 3201 offers high-performance capabilities and a wide range of features designed for industrial safety systems. Below are the detailed technical specifications:
