Safety PLC Trips on Nothing: Designing a SIS That Survives Common Cause Failure

A safety PLC trips and production stops. Operators may blame the application logic, yet the initiating fault often lies in a resource shared by supposedly independent channels. Redundancy can tolerate selected random hardware failures. It cannot protect the safety function when one cause defeats every redundant path at once.

This common cause failure, or CCF, must be addressed in design, verification, maintenance, and change control. The right audit follows the entire safety function from sensor to logic solver to final element and proves that independence exists in the field, not only on the drawing.

Important: Use this guide with the site safety lifecycle, safety requirements specification, approved calculations, vendor manuals, and management-of-change process. Any live SIS test or modification requires an authorized procedure and risk controls.

Redundancy defeats random faults, not shared ones

A random failure may affect one channel while a voting architecture continues to provide the required function. A common cause can affect multiple channels through the same physical, environmental, systematic, or human weakness. In that case, duplicated devices may provide little additional protection.

Triconex systems commonly use redundant or triple-modular-redundant architectures, while HIMA platforms use architecture-specific redundancy and diagnostic concepts. The achieved fault tolerance depends on the selected controller family, I/O arrangement, application logic, field architecture, and proof-test strategy. Never infer the behavior of a complete safety function from the controller brand alone.

Shared weaknesses that can defeat redundant channels

• Process connections: Two transmitters share one tap, manifold, impulse line, or sensing element. A blockage or leak can bias both readings.
• Utilities: Multiple final elements depend on one instrument-air header, electrical feed, fuse, or hydraulic source.
• Power: Redundant loops share one supply, distribution board, terminal, grounding path, or protection device.
• Cable routing: Redundant signals occupy the same tray, junction box, gland plate, or fire zone.
• Environment: Heat, flooding, vibration, corrosion, electromagnetic interference, or fire affects all channels together.
• Application logic: Supposedly independent signals are processed by the same unreviewed block, parameter, library defect, or copied logic error.
• Maintenance: One calibration, flushing, bypass, or isolation activity disturbs multiple channels at once.

Loop voltage must be checked against the exact transmitter data sheet at the highest expected current and total loop resistance. There is no universal terminal-voltage minimum that applies to every two-wire instrument.

Independence and diversity must be demonstrated

Independence removes shared resources and failure paths. Diversity can reduce susceptibility to selected common or systematic faults by using different measurement principles, equipment, software, power sources, or physical locations. Diversity is not automatically beneficial, however; it can add interfaces, maintenance complexity, and new failure modes. Its use should be justified by hazard analysis and verified through the safety lifecycle.

Where appropriate, pair different sensing principles, such as radar level and differential pressure, instead of duplicating one vulnerable process connection. Separate the basic process control system and SIS according to the safety requirements, including cabinets, power distribution, networks, engineering access, wiring routes, and application responsibilities.

When auditing field inputs, verify the actual project configuration of equipment such as the Triconex DI3311 digital input module and the HIMA X-DI 3201 digital input module. Product family differences alone do not prove independence; the surrounding power, wiring, process connection, logic, and maintenance practices must also be independent.

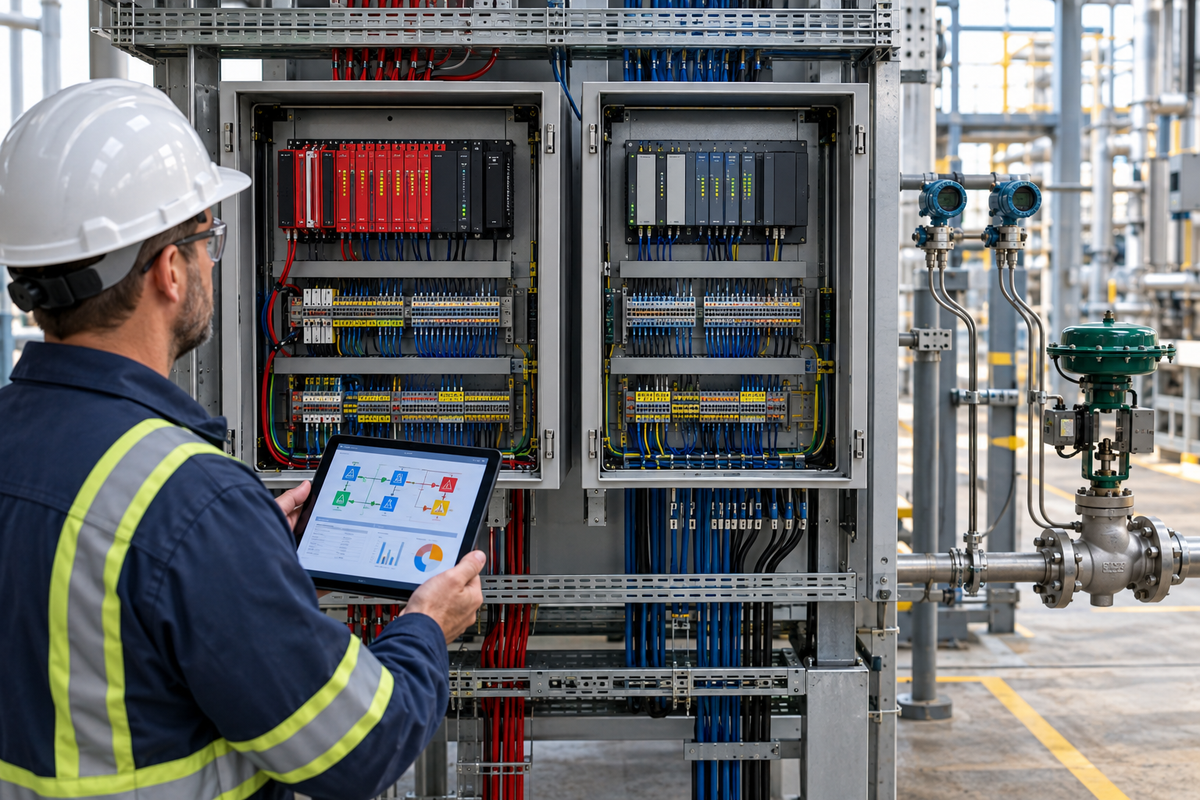

Prove separation between SIS and BPCS

A field-ready independence audit should answer five questions:

• Can a BPCS power, network, cabinet, or engineering-workstation failure disable the SIS function?
• Can a BPCS command or data-quality problem change a safety decision without an engineered and validated boundary?
• Do the SIS and BPCS share sensors, process taps, final elements, utilities, cable routes, or maintenance procedures?
• Are communications failures detected and driven to a defined state without corrupting the safety logic?
• Are access control, change management, backups, and cybersecurity controls separated according to the approved design?

Communication modules can exchange status without making the BPCS part of the safety decision. For example, a Triconex 4352AN communication module or HIMA F8628X Ethernet communication module should be assessed for its configured role, permissions, failure behavior, and diagnostic coverage. A physical network connection does not by itself define whether functional independence has been preserved.

The β factor: put a justified number on CCF

Quantitative SIL verification must include an approved model for common cause failures. In a β-factor model, β represents the fraction of dangerous failures attributed to a common cause across redundant channels. The selected value is not a generic plant constant and should not be copied from an unrelated project.

The justification should reflect the applicable standard, device data, architecture, physical segregation, environmental controls, diversity, diagnostics, proof testing, maintenance quality, and operating experience. Record the method, assumptions, evidence, and limitations in the verification file and safety requirements documentation. Revisit the value after changes to layout, wiring, equipment, utilities, logic, testing, or maintenance practices.

Field procedure: audit one complete safety function

1. Start with the approved cause-and-effect, safety requirements specification, loop drawings, and SIL verification.
2. Trace every sensor connection to the process. Flag shared taps, impulse lines, manifolds, sensing elements, and isolation valves.
3. Trace power, grounding, barriers, marshalling, junction boxes, cable routes, cabinets, networks, and environmental exposure.
4. Measure field-terminal voltage under the worst credible load and compare it with the device data sheet.
5. Review the safety application for shared parameters, common blocks, copied defects, hidden bypasses, and dependence on BPCS data.
6. Trace each final element, including power or air supply, solenoids, actuators, accessories, feedback, and mechanical dependencies.
7. Verify proof-test coverage and intervals against the assumptions used in the SIL calculation.
8. Confirm the CCF model and β-factor justification still match the installed design.
9. Record gaps, risk controls, owners, due dates, and required management-of-change actions.

Partial-stroke testing can detect selected final-element failures, but it does not replace the full proof-test scope unless the approved verification explicitly credits it. Tests must follow the validated procedure and be coordinated with operations.

Conclusion

Common cause failure can turn apparent redundancy into a single point of failure. Hunt for shared process connections, utilities, power, routing, environments, logic, and maintenance actions. Use independence and justified diversity where the hazard analysis requires them, and support every SIL claim with documented assumptions that match the installed field design. The most useful audit is not a controller checklist; it is an end-to-end trace of one complete safety function.
