Topology Design Decides How You Fail

Every industrial network has a topology. That topology decides the failure mode before any component breaks. Line, star, ring, and tree each fail differently. First, know your physical layout. Second, know the recovery behavior of each scheme. A programmer who ignores topology debugs blind during a plant trip. I learned this on a Schneider Modicon M580 installation. The plant ran a daisy-chained Modbus TCP line to four remote I/O drops. One loose RJ45 clamp stopped all communication downstream. Therefore, study the failure modes below before your next shutdown.

First: Line Topology Failures and Termination Discipline

Line topology chains devices in series. It needs minimal cabling and suits small systems. However, one cable break kills everything downstream. Worse, a shorted terminal or a powered-off device breaks the entire chain. Termination resistance matters in serial-based lines. A missing or wrong-value terminator causes reflections and random CRC errors. Over-length cables do the same. Moreover, electrical noise on one device disrupts the whole line.

• Step 1 — Check termination resistance at both line ends with a multimeter. RS-485 lines typically need 120 ohms.
• Step 2 — Measure cable length against the protocol limit. Keep total line length within the vendor specification.
• Step 3 — Power off suspect devices one at a time. A chain that recovers identifies the faulty node.
• Step 4 — Replace any connector with visible corrosion or loose clamps before further testing.

Second: Star Topology and the Single Point of Death

Star topology concentrates all traffic in one central switch. It simplifies troubleshooting and expands easily. However, the central device is a single point of failure. If the switch dies, the whole cell goes dark. In my Schneider case, the M580 CPU talked Modbus TCP through one unmanaged switch. A multicast flood from a misconfigured VFD choked the switch buffer. PLC data timed out even though every cable tested fine. A managed switch with proper port settings prevents this.

• Step 1 — Replace unmanaged switches in control networks with managed industrial Ethernet switches.
• Step 2 — Enable broadcast storm protection. Set the threshold around 10 to 20 percent of port bandwidth.
• Step 3 — Disable unused ports and configure port security to keep rogue devices off the cell network.

Moreover: Ring Topology and MRP Recovery That Actually Works

Ring topology adds a second path. One link is logically blocked in normal operation. When a cable breaks, the ring reconfigures and restores communication automatically. However, this only works when the redundancy protocol is configured correctly. Exactly one device must act as ring manager. Two managers or zero managers create loops, duplicate packets, and flooding. A ring that passes commissioning can still fail badly on the first real cable fault. I saw this on a HIMA HIMax safety network. The ring healed in the lab but collapsed in the field because the ring manager role sat on a switch that shared a configuration with another cell.

• Step 1 — Verify that exactly one switch carries the MRP ring manager role. All others must be MRP clients.
• Step 2 — Test recovery by unplugging one ring cable during a controlled window. MRP should heal in under 200 ms.
• Step 3 — For HIMA HIMax networks, confirm both Ethernet ports on each controller participate in the correct ring.
• Step 4 — Document ring membership per switch. An undocumented second ring caused my field failure.

However: Tree Topology Loops and Broadcast Storms

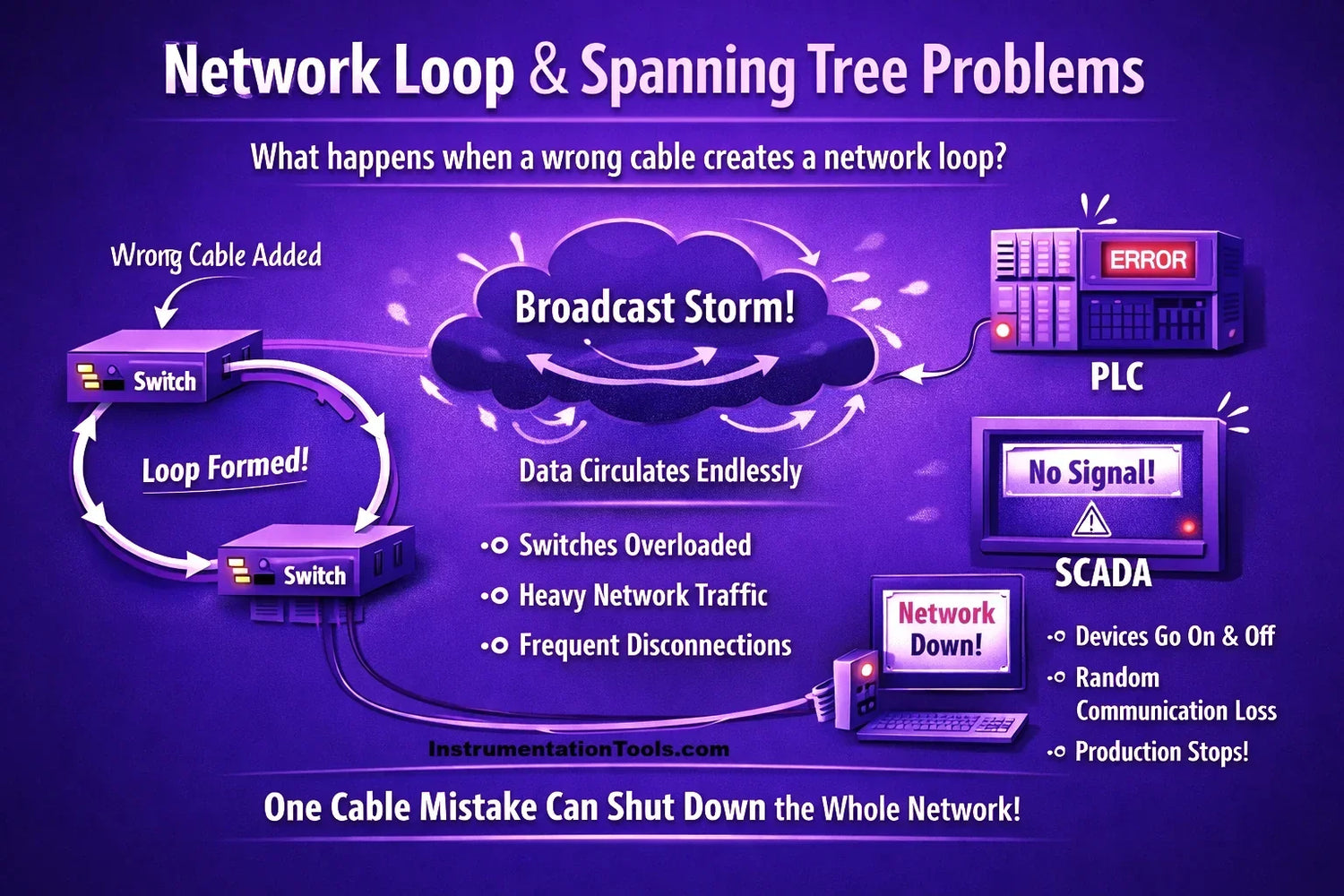

Tree topology scales for large plants. It separates responsibilities and supports security zoning. However, one accidental extra cable creates a loop between switches. Ethernet frames circulate endlessly. The result is a broadcast storm that overloads every switch in the branch. PLCs and HMIs drop off randomly. Devices appear and disappear. If Spanning Tree Protocol reacts too slowly, a small wiring mistake shuts down a production line in seconds. Therefore, guard against unauthorized cabling.

• Step 1 — Enable Rapid Spanning Tree Protocol on every switch that accepts field patch cables.
• Step 2 — Set BPDU guard on edge ports. A rogue loop trips the port instead of the plant.
• Step 3 — Label both ends of every trunk cable with the switch and communication module port assignment.
• Step 4 — Audit the network topology after every maintenance campaign. Compare against the as-built drawing.
