Overview

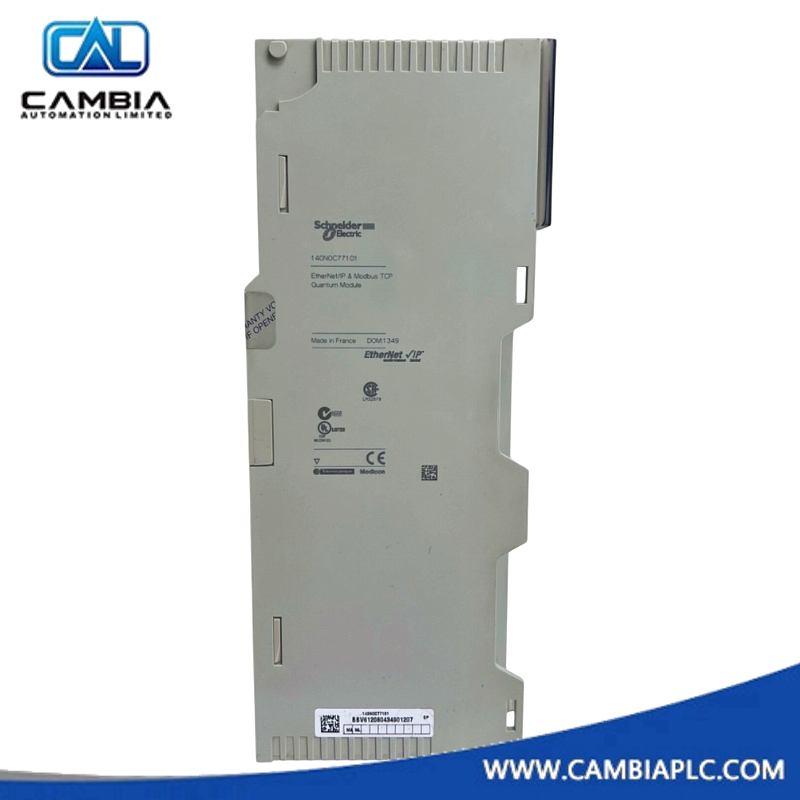

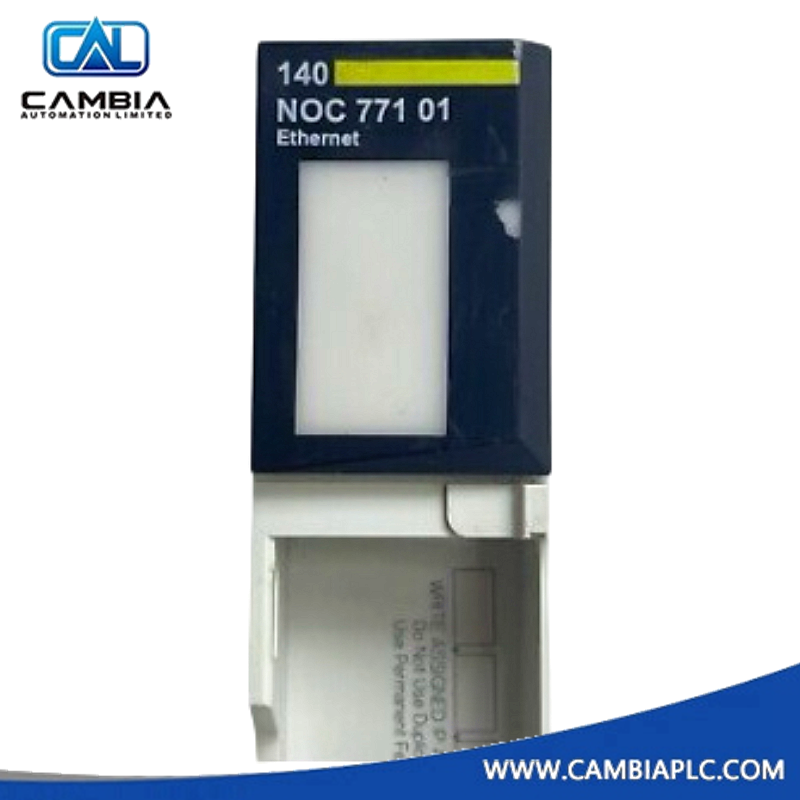

The 140NOC77101 is an Ethernet communication module designed for the Modicon Quantum automation platform. It supports high-speed Ethernet/IP and Modbus TCP protocols, enabling seamless integration into distributed control systems. This module allows transparent communication between Quantum CPUs and external devices such as HMIs, SCADA systems, and third-party controllers. With support for multiple protocols, full-duplex operation, and web-based diagnostics, it is an essential component for industrial networking applications.
Technical Specifications
| Manufacturer | Schneider Electric |
| Catalog Number | 140NOC77101 |
| Product Type | Ethernet Communication Module |
| Platform Compatibility | Modicon Quantum |
| Supported Protocols | Ethernet/IP, Modbus TCP, SNMP, DHCP/BootP, FDR |
| Communication Services | SOAP/XML Web (client/server), CIP messaging, QoS |
| Exchange Mode | Full duplex |
| Max Connections | 128 simultaneous connections |
| Transmission Rate | 10/100 Mbit/s |
| Connector Type | RJ45 (10BASE-T/100BASE-TX) |
| Transmission Medium | Twisted pair cabling |
| Local Signaling | 7 LEDs: Bus Active, Config Ready, Speed, Link, Full Duplex, Transmission Activity, Module/Network Status |
| Supply Voltage | 5 VDC (via rack backplane) |
| Current Consumption | 400 mA at 5 VDC |
| Power Dissipation | 2 W |
| Module Format | Standard Quantum slot |
| Web Server | Embedded (Transparent Ready Class B30) |
| Diagnostics | Web-based, SNMP agent, rack viewer, data editor |
| Operating Temperature | 0 to 60 °C |
| Storage Temperature | -40 to 85 °C |
| Relative Humidity | 95% non-condensing |
| Altitude Rating | ≤5000 m |
| Certifications | CE, UL 508, CSA C22.2 No. 142, FM Class 1 Div 2 |
Installation Notes
- Mounts in a standard Quantum rack slot.
- Connects via RJ45 to Ethernet networks using twisted pair cables.
- Configure IP settings and protocols using Unity Pro or EcoStruxure Control Expert.
- Not hot-swappable; install or remove only when system power is off.
- Embedded web diagnostics accessible through any browser for configuration and monitoring.
