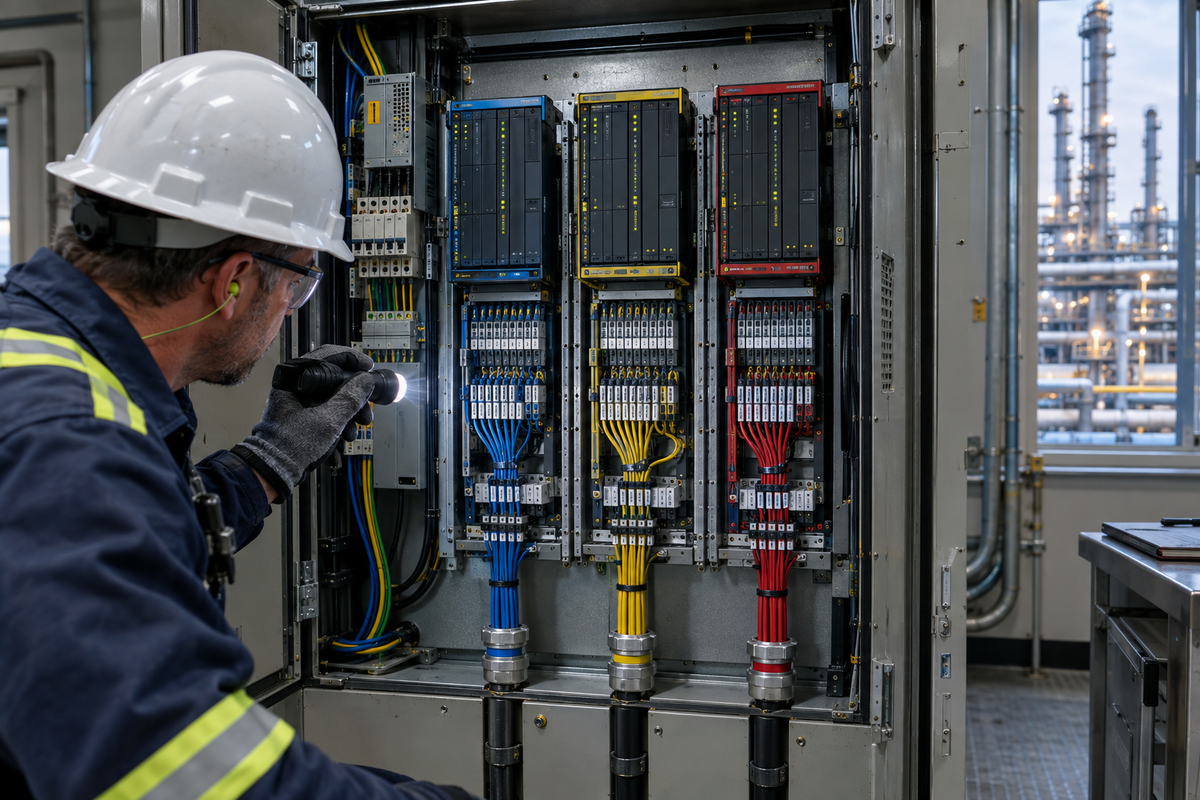

Eliminate Common-Cause Failures in Triconex and HIMA Safety Loops

Redundancy buys little when several channels share the same blind spot. A safety instrumented function can use redundant sensors, logic, and final elements yet remain vulnerable to one plugged process connection, one power source, one cable route, one software defect, or one maintenance action.

Common-cause failure is controlled by proving independence across the complete safety function. Copies of hardware are not enough.

Important: Apply this field guide with the site safety lifecycle, safety requirements specification, SIL verification, approved proof-test procedures, vendor manuals, and management-of-change process.

Why redundancy can still blind itself

Voting architectures can tolerate selected random channel failures, but the achieved fault tolerance depends on the exact controller, I/O, application logic, sensor arrangement, and final-element design. A Triconex 3503E digital input module belongs to a Tricon system, but the module name alone does not prove that every connected safety function uses 2oo3 voting.

HIMA systems likewise use architecture-specific redundancy and diagnostics. Hardware such as the HIMA F60CPU01 controller and HIMA X-DI 3201 digital input module must be assessed from the approved project configuration rather than from a blanket assumption about the brand.

If two transmitters share one impulse tap or primary element, one blockage can bias both readings in the same direction. The voter may see agreement even though the process measurement is wrong. The same principle applies to shared power, utilities, routing, environmental exposure, logic, and maintenance practices.

Audit shared points from process to final element

• Process connection: Trace every tap, impulse line, manifold, root valve, thermowell, stilling well, and primary element.
• Sensor power: Identify shared supplies, fuses, barriers, marshalling terminals, grounding paths, and surge protection.
• Cable route: Check whether redundant channels share trays, junction boxes, penetrations, fire zones, or environmental hazards.
• Logic: Review voting, bypasses, common parameters, library blocks, tag binding, and dependencies on BPCS data.
• Final element: Trace air, hydraulic, electrical power, solenoids, actuators, relays, accessories, and mechanical linkages.
• Maintenance: Identify procedures that isolate, flush, calibrate, or bypass more than one channel at once.

Where separate process connections are reasonably practicable and required by the design, use them. Where they are not, document the dependency, quantify its effect, and apply approved compensating measures rather than pretending independence exists.

Build justified detection diversity

Different sensing technologies may reduce susceptibility to selected common failures. For example, level may be measured by radar and differential pressure where both technologies are suitable for the process. Flow alternatives depend on fluid properties, installation, accuracy, diagnostics, and hazard requirements.

Diversity is not automatically safer. Different technologies introduce different calibration needs, response times, systematic errors, and maintenance burdens. The hazard analysis should justify the combination, and the safety logic should account for each measurement’s range, dynamics, diagnostic behavior, and failure modes.

Keep software and engineering dependencies visible

Physical separation can be defeated by one software or configuration error. Audit:

• Tag references and channel bindings before download.
• Shared function blocks, constants, scaling, and voting parameters.
• Common libraries and copied logic across SIS and BPCS.
• Engineering access, user permissions, backups, and change approval.
• Communication paths that allow non-safety systems to influence safety decisions.

A separate engineering workstation can support independence and access control, but workstation separation alone does not prove functional independence. The complete architecture, permissions, network paths, software lifecycle, and recovery process must be reviewed.

Cable, EMC, grounding, and supply discipline

Route redundant and safety-related circuits according to the approved segregation and EMC design. Separation from high-energy conductors may reduce coupled interference and limit common damage, but tray and conduit rules must follow the site standard, hazardous-area requirements, and equipment instructions.

Shield bonding is frequency-, topology-, and installation-dependent. Do not apply a universal “ground one end only” rule to every analog or network circuit. Follow the engineered grounding philosophy and vendor documentation, considering equipotential bonding, high-frequency interference, intrinsic safety, and surge protection.

For two-wire transmitters, calculate the loop budget using the exact data sheet. Measure terminal voltage at the worst credible current and include cable resistance, barriers, input impedance, indicators, and supply tolerance. There is no universal 10–12 V minimum for every transmitter.

Partial-stroke testing: useful, but not universal

Partial-stroke testing can reveal selected hidden failures in final elements that normally remain stationary. Its interval should come from the approved SIL verification, device capability, operating experience, failure modes, and proof-test strategy. A fixed 30-day interval is not universally appropriate.

• Define the permitted travel and process constraints.
• Coordinate the test with operations and bypass governance.
• Record position, timing, pressure, feedback, and diagnostic results.
• Trend degradation rather than recording only pass or fail.
• Confirm what failure modes the partial test does and does not detect.
• Complete the full proof-test scope at the approved interval.

Field procedure: break the common-cause paths

1. Select one safety function and collect its approved cause-and-effect, loop drawings, SIL verification, and proof-test procedure.
2. Walk each sensor path from process connection to the input channel.
3. Mark every shared process, power, grounding, wiring, environmental, network, and maintenance dependency.
4. Review the installed voting and diagnostics against the approved application logic.
5. Trace the final-element utilities, commands, feedback, and mechanical dependencies.
6. Verify loop voltage and signal integrity under representative operating conditions.
7. Review partial-stroke and proof-test records for coverage, repeatability, and degrading travel time.
8. Document each gap with risk, owner, compensating measure, due date, and management-of-change requirement.
9. Update the common-cause assumptions and SIL verification when the installed design changes.

Conclusion

Redundancy copies channels; it does not remove shared weaknesses. Audit every safety function from the process connection through sensors, power, routing, logic solver, software, and final element. Use independence and justified diversity where the hazard analysis requires them, and treat partial-stroke testing as one diagnostic tool rather than a universal cure. The strongest vote is only as reliable as the dependencies hidden beneath it.
