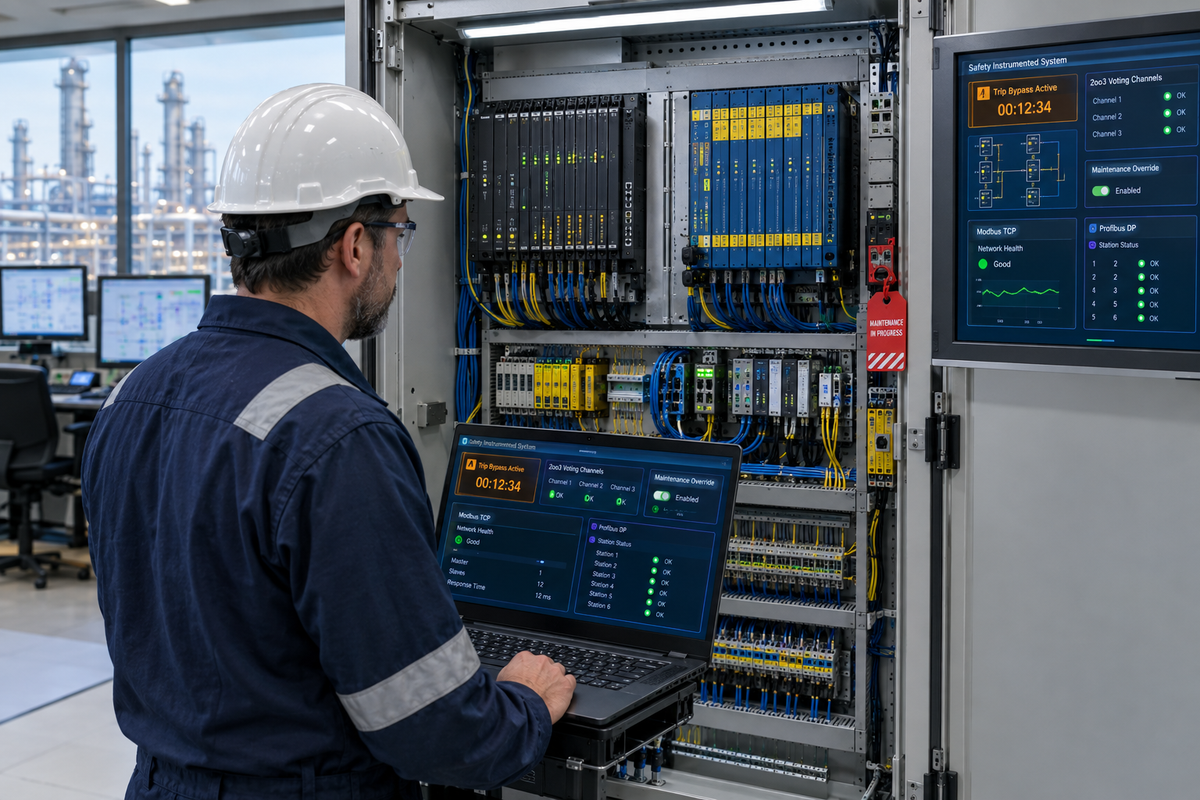

Bypass Discipline for Triconex and HIMA Safety Systems: A Field Guide to Trip Overrides and Bus Diagnostics

Safety instrumented systems must trip when required while remaining available during normal operation. Triconex and HIMA platforms support diagnostics, redundancy, and controlled maintenance states, but poor bypass discipline can quietly weaken the protection assigned to a safety function. Every override should therefore be treated as a temporary risk with a named owner, an expiry time, compensating measures, and a tested restoration plan.

Important: Use this field guide alongside the approved site safety lifecycle procedures, cause-and-effect documentation, application-specific manuals, and management-of-change process. Do not use generic guidance to alter a live safety function.

Why bypass governance decides SIS reliability

An undocumented or forgotten override is a latent failure waiting for the next demand. Good governance makes the risk visible to operations and ensures that the bypass cannot outlive the work that justified it.

• Input bypass: prevents a selected field input from initiating its normal trip action during approved maintenance.
• Output bypass: prevents or substitutes a final-element command during an authorized test.
• Maintenance override: places a defined element in a controlled maintenance state without changing application logic.

Terminology and implementation vary by system, project, and application program. Confirm the actual behavior in the safety requirement specification and vendor documentation. Maintain a bypass register outside the controller if the installed platform does not provide a complete, auditable record.

Know the voting and diagnostic architecture

Triconex systems commonly use redundant or triple-modular-redundant architectures, but the exact voting arrangement depends on the controller family, I/O type, and application design. A channel disagreement may be tolerated and annunciated while the process continues, yet the degraded condition still needs investigation.

Start with the hardware actually installed. For example, a Triconex DI3311 digital input module should be diagnosed using its project configuration and applicable module documentation, not a generic assumption about every Triconex rack.

HIMA safety systems likewise use platform- and module-specific diagnostic strategies. When tracing input discrepancies, confirm the behavior of hardware such as the HIMA X-DI 3201 digital input module against the approved engineering data. Read diagnostic buffers, channel status, and redundancy state together rather than relying on a single healthy/faulted flag.

Protect the protocol layer around the SIS

Plants often publish bypass, trip, and diagnostic status to a DCS or historian over Modbus TCP, Profibus DP, or another industrial network. The monitoring image must remain trustworthy during maintenance.

• Document the register or data-block mapping and its byte order.
• Monitor data quality, update age, communication status, and sequence behavior.
• Use read-only access from non-safety systems unless a formally engineered and access-controlled write path is required.
• Set polling intervals and watchdogs from the validated network design, device manuals, measured update times, and the safety application response requirements.

Communication hardware such as the Triconex 4352AN communication module or HIMA F8628X Ethernet communication module should be checked for link state, error counters, stale data, and configuration consistency. Do not infer healthy SIS operation from an Ethernet link light alone.

Field procedure: executing a controlled input bypass

1. Confirm the approved work permit, risk assessment, and management-of-change requirements for the tag.
2. Identify the affected safety function, voting impact, compensating measures, and maximum permitted bypass duration.
3. Notify the board operator and shift supervisor before activation.
4. Apply the bypass only through the authorized key switch, engineering station, or HMI control defined by site procedure.
5. Verify that the sequence-of-events log captured the bypass, operator identity, and timestamp.
6. Place the required physical identification at the field or cabinet location, including the owner and expiry time.
7. After maintenance, confirm the field signal is healthy, remove the bypass, and function-test the loop according to the approved procedure.
8. Record the result and close the bypass entry only after operations accepts the restored protection.

Review open bypasses at every shift handover. Any extension should require renewed authorization and a documented review of the risk and compensating measures.

Troubleshoot mismatches and stuck channels

A noisy or failed transmitter can create channel disagreement, but the first visible diagnostic is not always the root cause.

• Review the sequence-of-events record and trend the deviating value.
• Inspect field wiring, shielding, grounding, terminals, impulse lines, and sensor power.
• Compare channel diagnostics and module status across the redundant architecture.
• Check communication errors and time synchronization before correlating events.
• Do not return a voted-out or faulted channel to service until the cause is understood and the approved recovery test passes.

Stuck final-element feedback can result from mechanical problems, wiring faults, or damaged auxiliary contacts. Prove commanded movement, actual travel, and feedback independently before removing the associated override.

Proof testing without nuisance trips

Partial-stroke testing can reveal selected hidden failures between full proof tests, but it does not automatically replace the full proof-test scope defined by the safety lifecycle.

• Coordinate the test window with operations.
• Override only the element necessary for the approved test.
• Confirm the remaining voting and protection state before starting.
• Run the valve to the validated travel target and record position, timing, and diagnostics.
• Restore the output, verify the complete loop state, and close the bypass record.

Keep the test within the limits established by the safety requirement specification, proof-test procedure, and final-element design.

Conclusion

Bypass discipline protects people, equipment, and production. Treat every override as a live risk with a visible clock. Understand the actual voting architecture in the installed rack, preserve trustworthy protocol diagnostics, and close each bypass with a function test and signed record. A focused audit of the open-bypass register is often the fastest way to uncover protection that was never fully restored.
