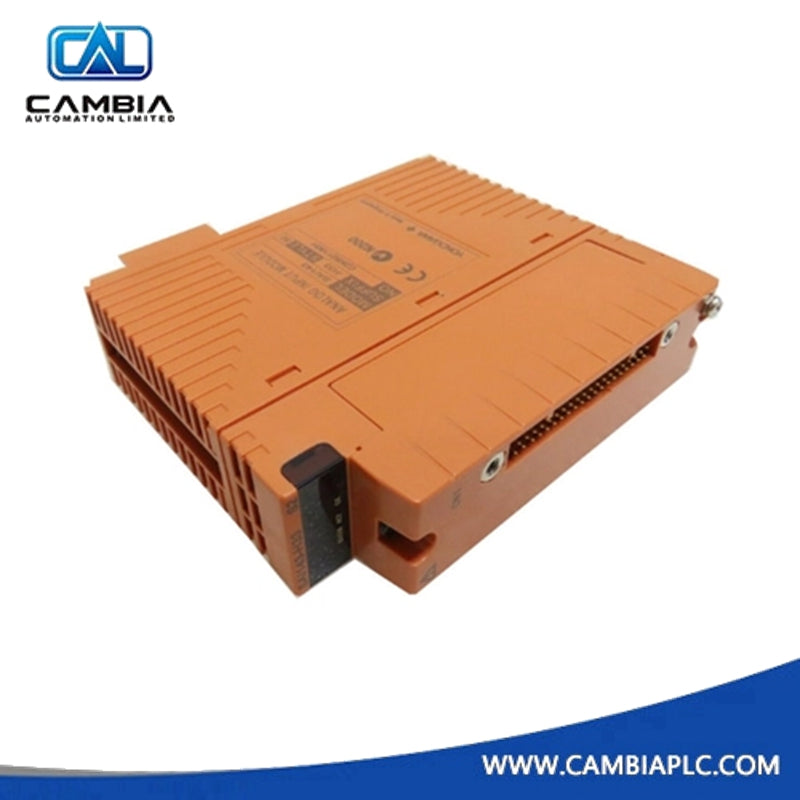

The Yokogawa SAV144-S63 is a 16-channel isolated analog input module designed for ProSafe-RS safety systems. It supports 1-5 V / 1-10 V voltage signals and features an integrated signal cable interface adapter. The module provides enhanced noise immunity and can be configured for dual-redundant operation with the /A4D00 module. Additionally, it includes false insertion prevention for added security.

Features

• 16 isolated voltage input channels

• Integrated signal cable interface adapter

• Module isolation for noise immunity

• Supports dual-redundant configuration (with /A4D00)

• False insertion prevention available (with /PRP)

Technical Specifications

• Input Range: 1–5 V, 1–10 V

• Channels: 16 (module-isolated)

• Update Rate: 40 ms (typical)

• Operating Temperature: -20°C to +70°C (ISA G3 compliant)

• Withstand Voltage: 1.5 kV AC (signal to system, 1 minute)

• Power Consumption:

• 5 V system: 320 mA

• 24 V system: 300 mA (approximate)

• Weight: 0.33 kg (with signal cable adapter)

• Dimensions: 130 mm (H) × 94 mm (W) × 32.8 mm (D) ±0.8 mm
