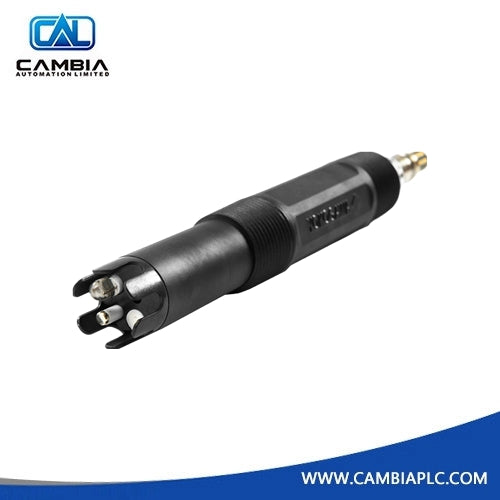

Yokogawa FU20-VP-T1-NPT Wide Body Sensor in Stock
In stock, ready to ship
Manufacturer: Yokogawa
Product No.: FU20-VP-T1-NPT
Product Origin: Japan
Payment: T/T
Weight: 1000g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
YokogawaFU20-VP-T1-NPT
Manufacturer : Yokogawa
Product No. : FU20-VP-T1-NPT
Product Type : FU20 Wide Body Sensor
Model - FU20 : Wide Body Sensor
Suffix code - VP : Variopin connector
Temp. element - T1 : Pt1000
Model - NPT : Dome shape model
Body : PPS 40GF (glass filled Ryton)
Earthing pin : Solid platinum
O-ring : None
Cable : Coaxial with 4 extra leads
Sheet material : Thermoplastic rubber
Measuring Sensor : G-Glass
Temperature : -10 to 105ºC (14 to 221 °F)
Pressure : 0 to 10 bar ( 0 to 145 PSIG)
Overview
The Yokogawa FU20-VP-T1-NPT is a wide body pH/ORP sensor designed for industrial applications. It’s part of the FU20 series, renowned for its robust construction and reliable performance.
Features
Wide body design: Offers enhanced durability, resistance to clogging, and improved signal stability.
All-in-one design: Combines pH, ORP, and temperature measurement in a single unit.
Differential reference system: Provides improved sensor life and accuracy by reducing the impact of process contaminants.
PTFE diaphragm: Offers chemical resistance and prevents clogging.
PT1000 temperature sensor: Enables accurate temperature compensation.
NPT process connection: Standard industrial fitting for easy installation.
