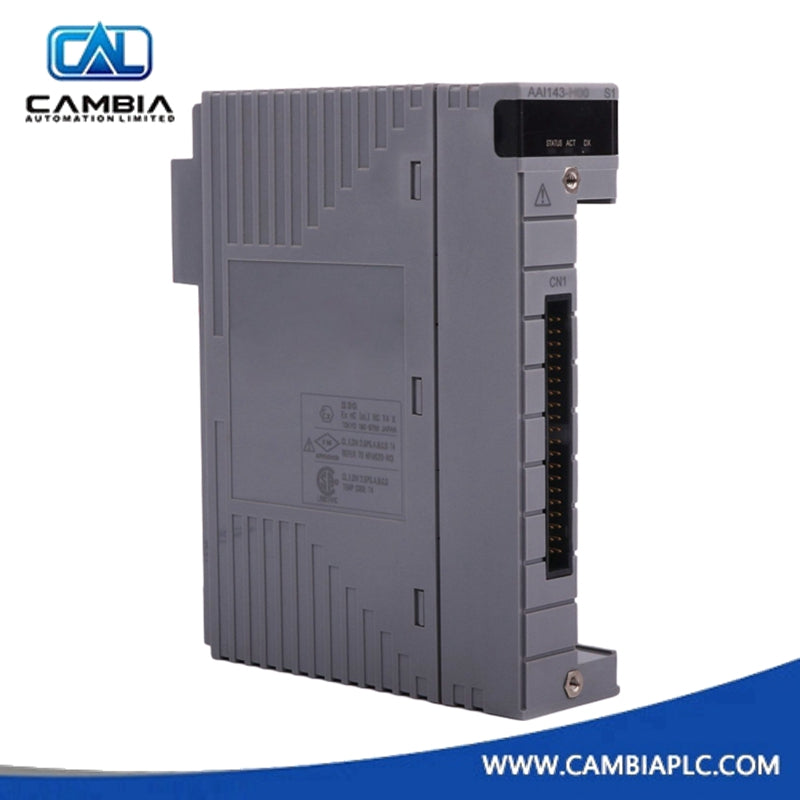

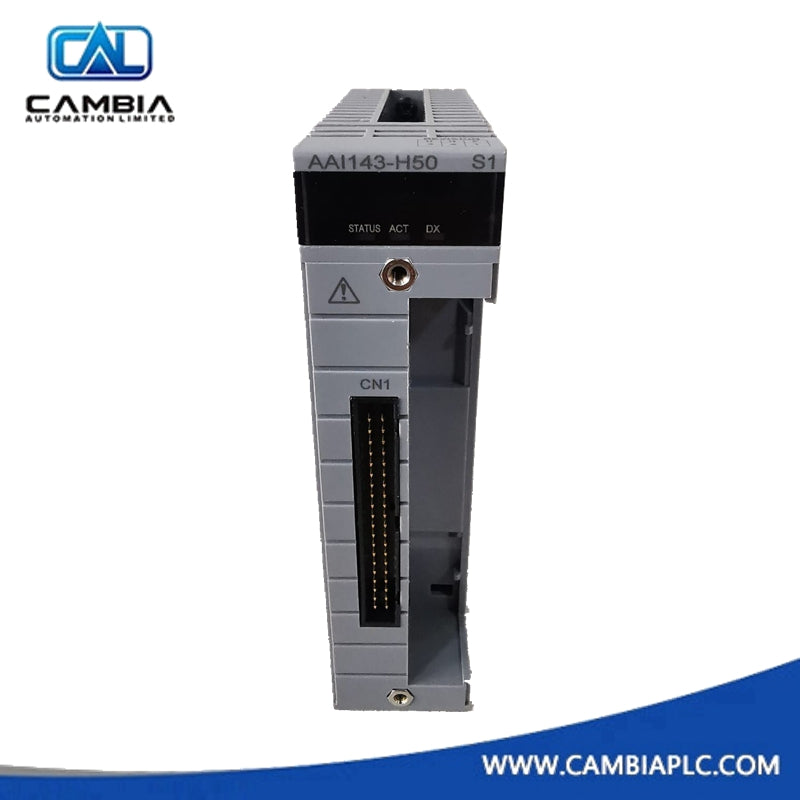

Yokogawa AAI143-H50 Analog Input Module

The AAI143-H50 from Yokogawa is an advanced analog input module designed for industrial automation applications. It provides 16 isolated input channels that accept 4-20mA signals, ensuring precise and reliable data acquisition from field devices such as sensors and transmitters. A key feature of this module is its built-in HART communication protocol, which goes beyond simple measurement reading to enable device configuration and real-time diagnostics, significantly enhancing system maintenance efficiency and intelligence.

Core Technical Specifications

Key Features and Benefits

1. High Precision and Speed

• The AAI143-H50 module delivers exceptional accuracy of ±16 µA, ensuring precise capture of even minor changes in field signals and providing a reliable data foundation for critical process control.

• Its 10 ms data update period ensures the system can reflect field conditions in real-time, a crucial performance metric for dynamic control processes that require rapid response.

2. Reliable Isolation and HART Intelligence

• Each channel features electrical isolation and can withstand a 1500 V AC test, effectively preventing interference between different signal loops and mitigating potential equipment damage risks.

• The integrated HART communication is a core advantage. It allows engineers in the control room to communicate directly with HART-compatible field devices via the AAI143-H50, enabling parameter reading, modification, and diagnostics without visiting the field, thus significantly reducing maintenance time and costs.

3. Robust Power Driving and Industrial Design

• The module can provide a stable power supply (ranging from 19.0V to 25.5V) for field transmitters, ensuring sufficient operating voltage even in scenarios involving long cable runs or multiple parallel devices.

• Weighing 0.3 kg, the module features a compact and rugged industrial design that can withstand harsh factory environments, ensuring long-term operational stability and reliability.
