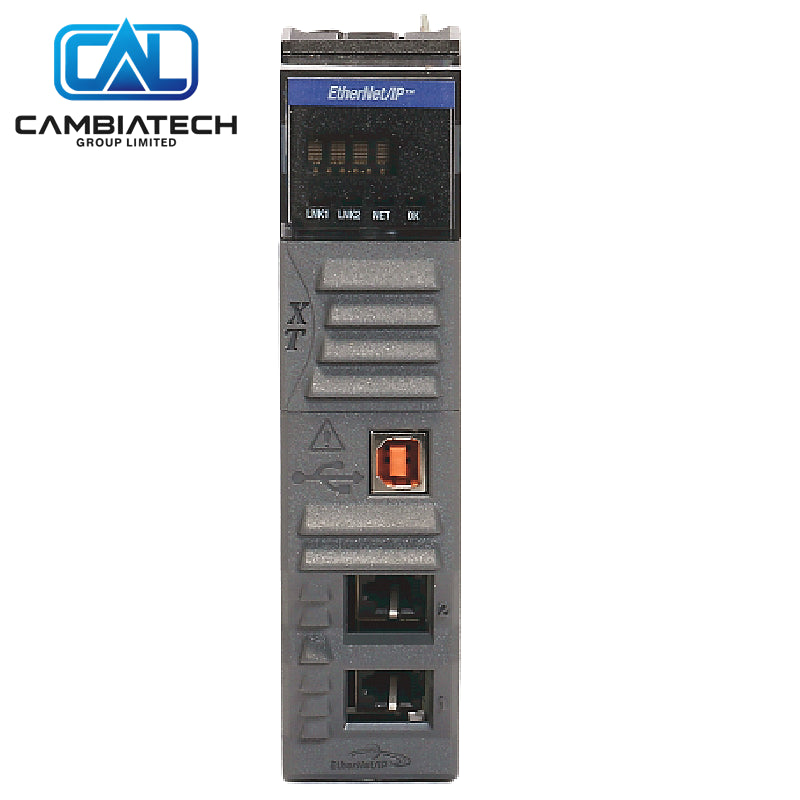

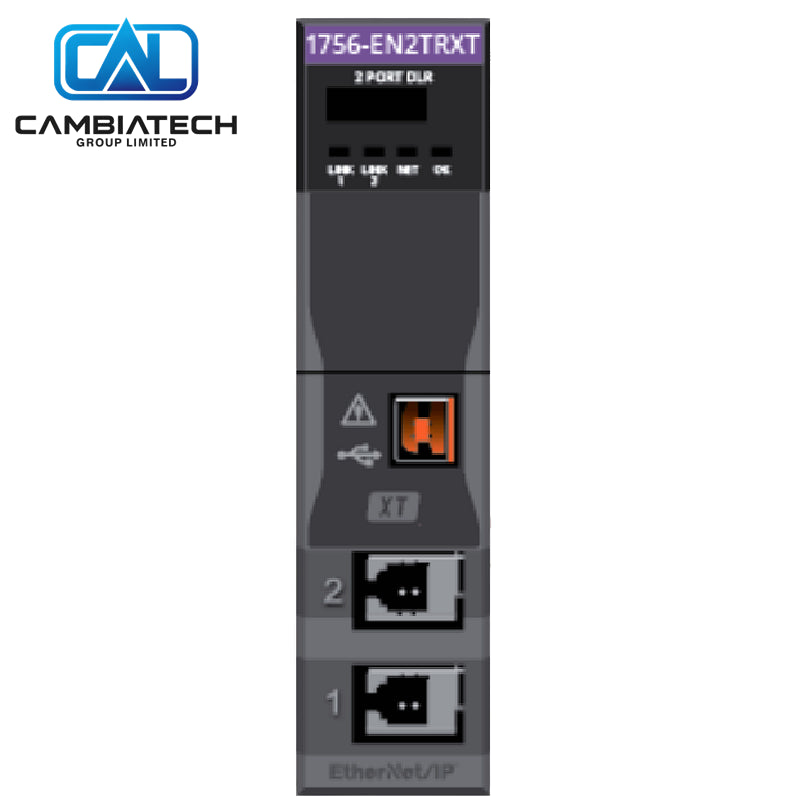

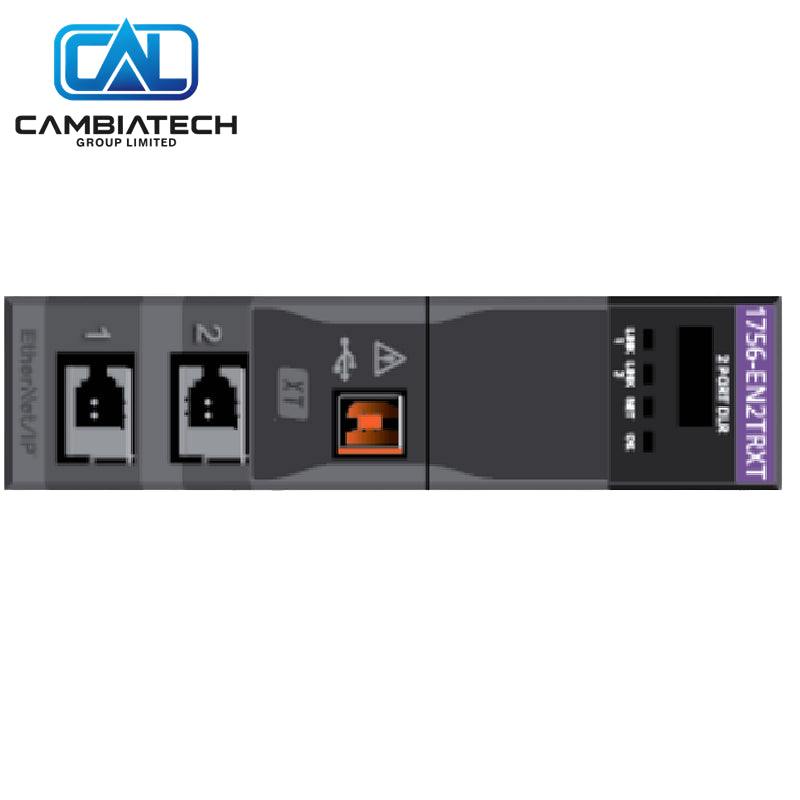

XT EtherNet/IP Bridge 1756-EN2TRXT Allen Bradley
In stock, ready to ship
Manufacturer: Allen-Bradley
Product No.: 1756-EN2TRXT
Product Type: EtherNet/IP Communication Module
Product Origin: USA
Payment: T/T
Weight: 1100g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
Product Overview
The Allen-Bradley 1756-EN2TRXT is a ControlLogix-XT EtherNet/IP bridge module with embedded switch for extended temperature applications. It provides dual RJ45 ports supporting device-level ring topology, 256 Logix connections, and operation from -25 to +70 °C for harsh industrial environments.
Key Specs
- Communication rate: 10/100 Mbps auto-sensing
- Connections: 256 Logix connections, 128 TCP
- Ports: 2 RJ45 Category 5 with embedded switch, 1 USB 1.1
- Operating temperature: -25 to +70 °C
- Isolation voltage: 30 V continuous, type tested at 980 V AC for 60 s
- Slot width: 1
- Compatible chassis: 1756-A4LXT, A5XT, A7XT, A7LXT, A10XT
Why Choose This
- Extended temperature rating for outdoor or unheated enclosures
- Dual ports with embedded switch enable DLR ring topology without external switches
- 256 Logix connections support large distributed I/O architectures
- USB port enables local configuration and firmware updates
Common Questions
- What is the difference between EN2TRXT and EN2TR? The EN2TRXT is the ControlLogix-XT variant rated for -25 to +70 °C; the EN2TR is rated for 0 to 60 °C.
- Does it support motion control? Yes, it supports up to 8 axes of integrated motion on EtherNet/IP.
- Which cable is required? Category 5 or better shielded twisted-pair Ethernet cable.
Mounting Steps
- Power down the XT chassis before installation.
- Insert the module into any available slot.
- Connect the dual RJ45 ports to the EtherNet/IP network or DLR ring.
- Set the IP address via BOOTP/DHCP or the USB configuration port.
- Configure the module in Studio 5000 Logix Designer.
Buying Advice
- Choose 1756-EN2TRXT for extreme temperature installations with ring topology requirements.
- For standard temperature environments, the 1756-EN2TR offers identical functionality.
- Confirm chassis compatibility: requires ControlLogix-XT chassis for full temperature rating.
