Schneider
X80 Shielding Kit 8-Slot BMXXSP0800 Schneider M340
In stock, ready to ship
Manufacturer: Schneider
Product No.: BMXXSP0800
Product Type: Shielding Connection Kit
Product Origin: USA
Payment: T/T
Weight: 1300g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
Product Overview

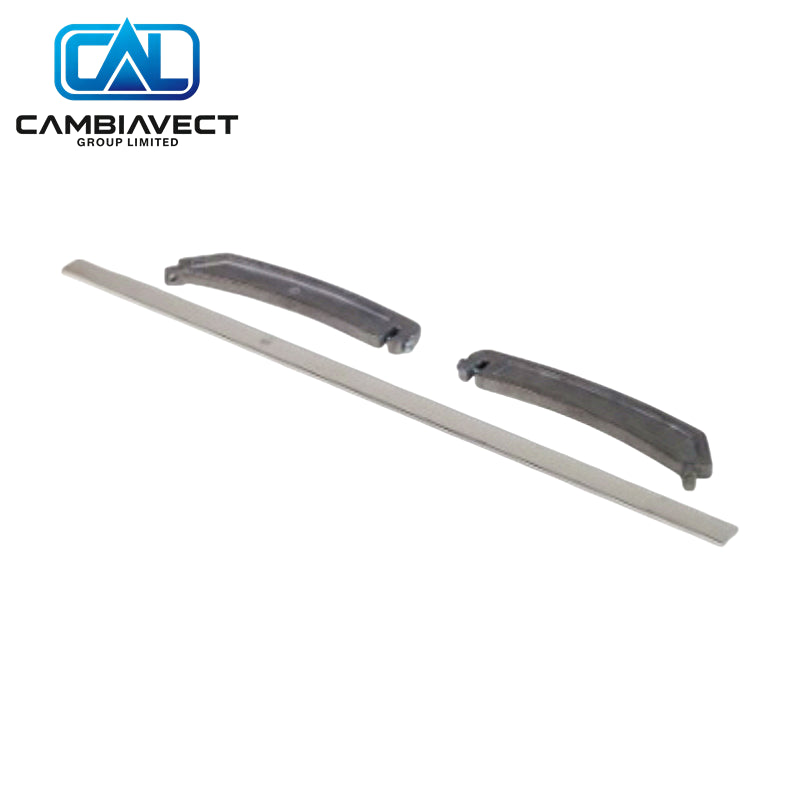

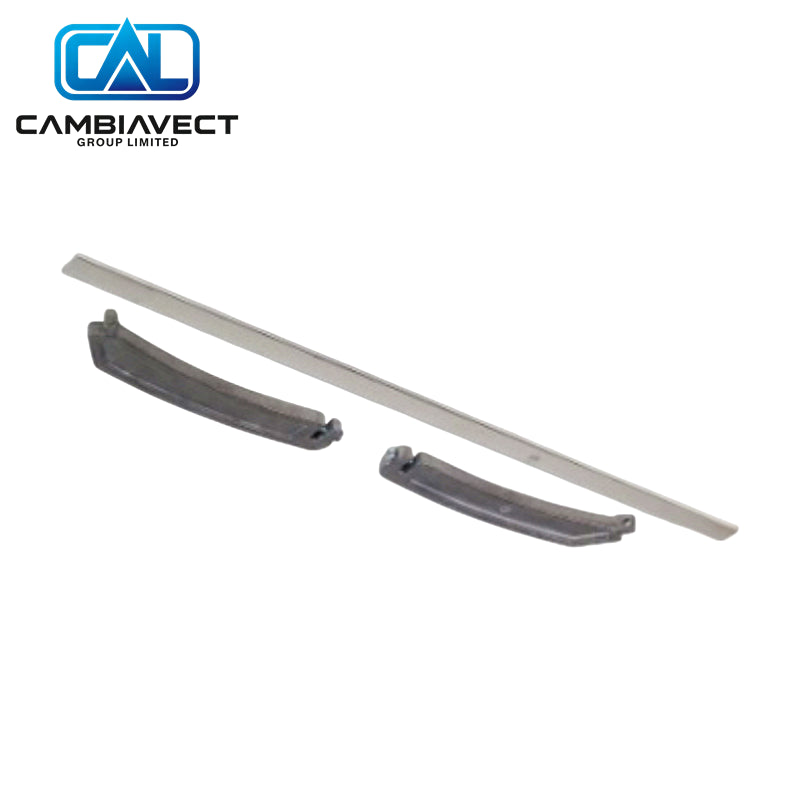

Schneider BMXXSP0800 is a shielding connection kit for 8-slot Modicon X80 / M340 racks. It provides a metal bar and sub-bases to terminate cable shields and improve EMC performance.
Key Specs
- Slots supported: 8
- Contents: Metal bar + two sub-bases
- Compatibility: BMXXBP0800 and similar 8-slot backplanes
- Platform: Modicon X80 / M340
Why Choose This
- Improves immunity to electrostatic discharge and noise
- Simple mechanical solution for shield termination
- Designed specifically for X80 8-slot racks
- Helps meet EMC requirements in industrial environments
Common Questions
- For how many slots? 8-slot racks.
- What is included? Metal bar and support sub-bases.
- Platform? Modicon X80 / M340.
Mounting Steps
- Mount the sub-bases on the rack according to the instructions.
- Install the metal shielding bar.
- Terminate cable shields to the bar using appropriate clamps.
- Ensure good electrical contact and mechanical security.
- Verify overall system grounding scheme.
Buying Advice
- Recommended for installations with high EMC requirements.
- Match the kit to the exact rack size (8-slot).
- Useful accessory for new or upgraded M340 panels.
