Schneider
X80 Shielding Kit 12-Slot BMXXSP1200 Schneider M340
In stock, ready to ship
Manufacturer: Schneider
Product No.: BMXXSP1200
Product Type: Shielding Connection Kit
Product Origin: USA
Payment: T/T
Weight: 1700g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
Product Overview

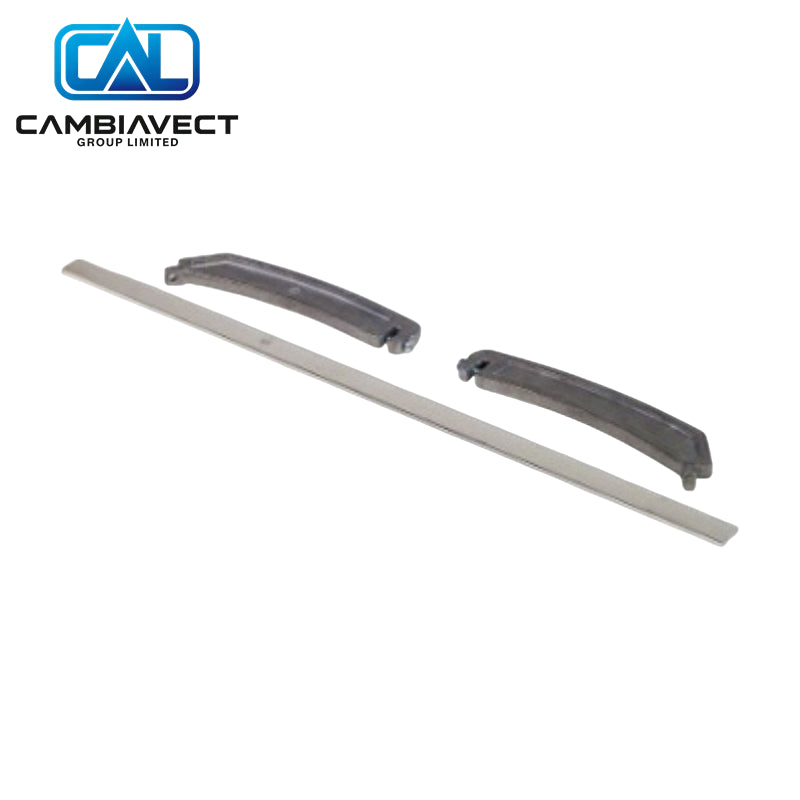

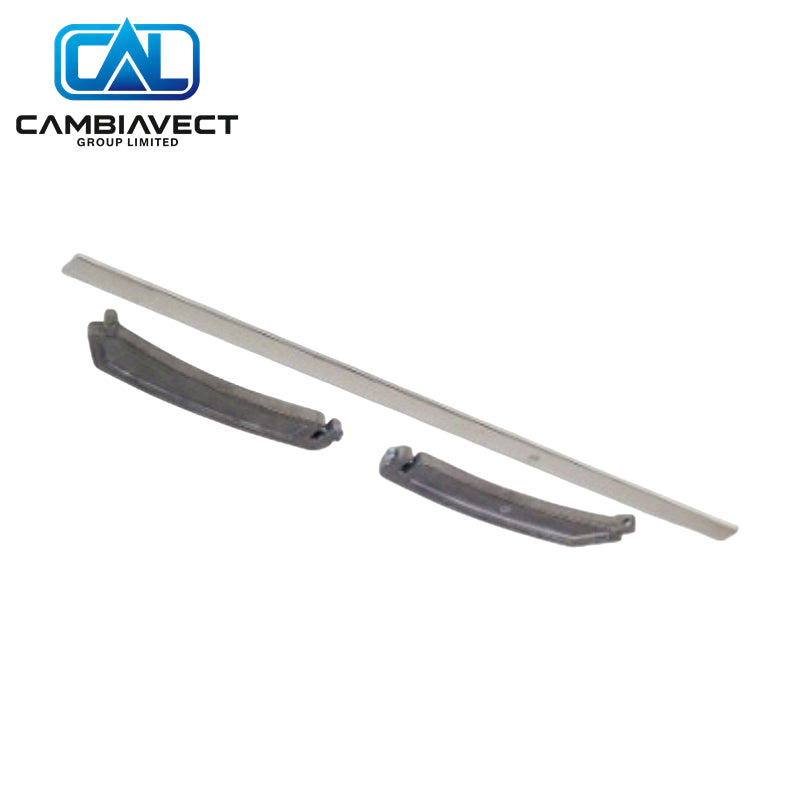

The Schneider BMXXSP1200 is a shielding connection kit designed for 12-slot Modicon X80 / M340 racks. It includes a metal bar and sub-bases for proper cable-shield termination and enhanced EMC performance.
Key Specs
- Slots supported: 12
- Contents: Metal bar + two sub-bases
- Compatibility: BMXXBP1200 and equivalent 12-slot backplanes
- Platform: Modicon X80 / M340
- Weight: approx. 0.4 kg
Why Choose This
- Provides dedicated shield termination for larger racks
- Reduces noise and electrostatic discharge effects
- Mechanical solution optimized for 12-slot X80 backplanes
- Supports reliable operation in electrically noisy environments
Common Questions
- For how many slots? 12-slot racks.
- What is included? Metal bar and support sub-bases.
- Platform? Modicon X80 / M340.
Mounting Steps
- Fit the sub-bases to the 12-slot rack.
- Install the metal shielding bar securely.
- Connect cable shields to the bar with proper clamps.
- Check continuity of the shield path to ground.
- Complete cabinet wiring and final inspection.
Buying Advice
- Select the 12-slot kit when using BMXXBP1200 racks.
- Recommended for panels with many analog or communication cables.
- Pair with the correct rack size for full coverage.
