Schneider

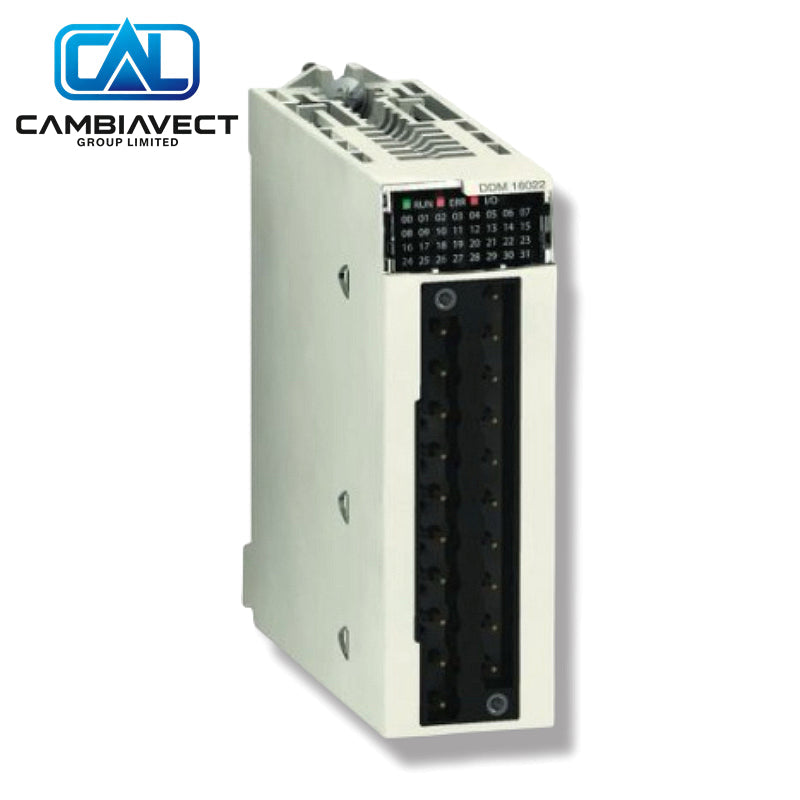

X80 Mixed I/O 8DI 8 Solid-State BMXDDM16022 Schneider
In stock, ready to ship
Manufacturer: Schneider
Product No.: BMXDDM16022
Product Type: Discrete Mixed I/O Module
Product Origin: USA
Payment: T/T
Weight: 1000g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
Product Overview
Schneider BMXDDM16022 is a discrete mixed I/O module for the Modicon X80 platform. It offers 8 positive-logic 24 V DC inputs and 8 solid-state (transistor) outputs rated 0.5 A at 24 V DC.
Key Specs
- Inputs: 8 × 24 V DC (sink, positive logic)
- Outputs: 8 × solid-state 24 V DC, 0.5 A per channel
- Max current per module: 5 A
- Power dissipation: 3.7 W
- Connection: 20-pin removable terminal block
- Weight: 0.115 kg
- Platform: Modicon X80 / M340 / M580
Why Choose This
- Fast solid-state outputs for high switching rates
- Combined inputs and outputs save rack space
- Built-in protection and channel diagnostics
- Standard X80 format
Common Questions
- Output type? Solid-state (transistor), 0.5 A.
- Input voltage? 24 V DC positive.
- Platform? Modicon X80.
Mounting Steps
- Insert the module into an X80 rack slot.
- Wire field devices via the 20-pin terminal block.
- Apply external fusing as recommended.
- Configure channels in the control software.
- Power up and check status LEDs.
Buying Advice
- Prefer over relay version when fast switching or high cycle rates are required.
- Confirm total load current stays within module limits.
- Common spare for 24 V DC mixed I/O on X80 systems.
