Schneider

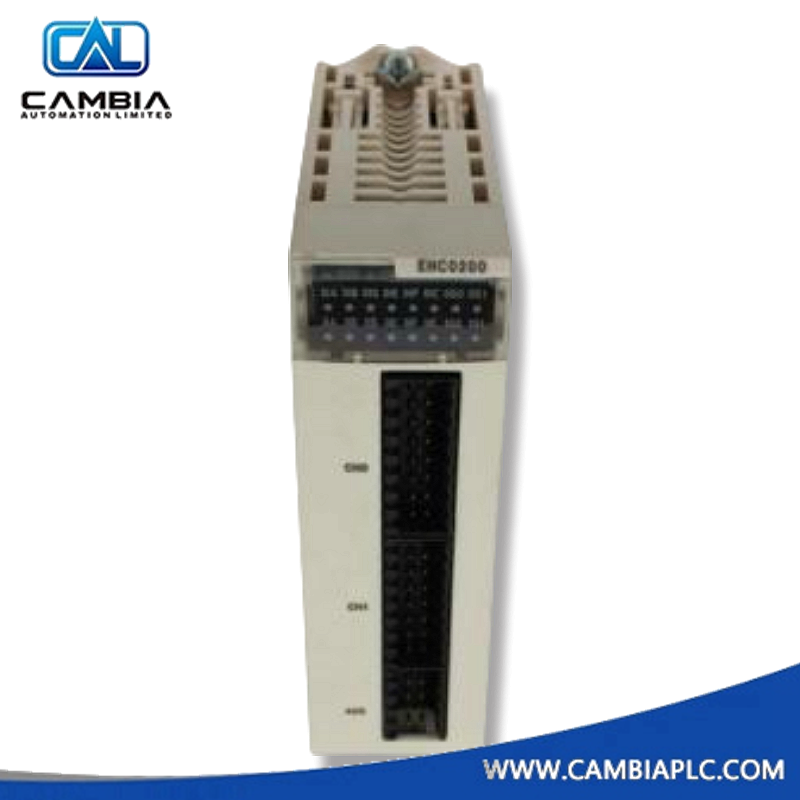

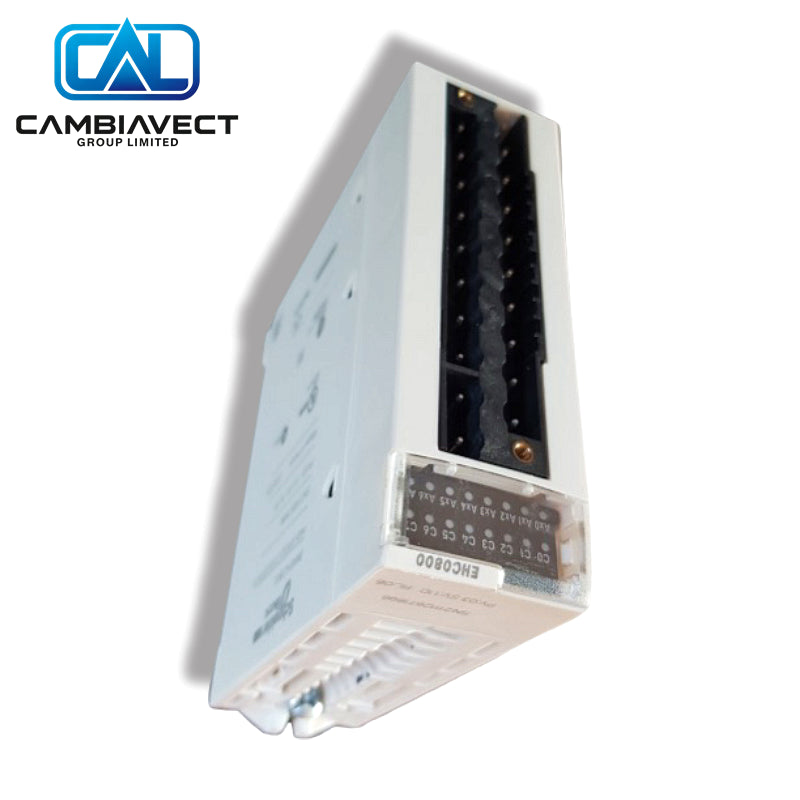

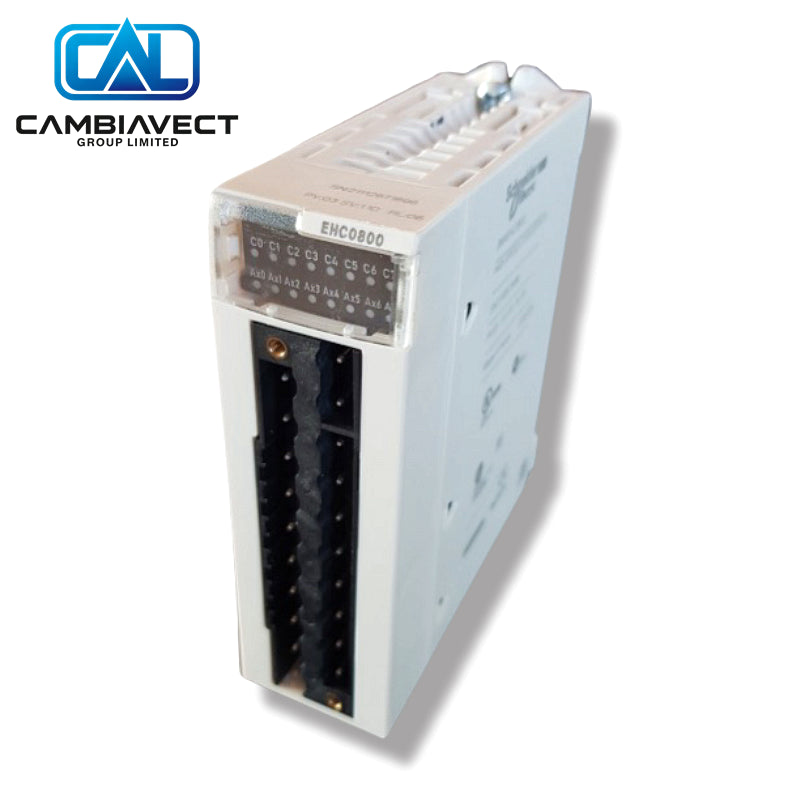

X80 High-Speed Counter 8ch BMXEHC0800 Schneider 10kHz
In stock, ready to ship
Manufacturer: Schneider
Product No.: BMXEHC0800
Product Type: High-Speed Counter Module
Product Origin: USA
Payment: T/T
Weight: 1600g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
Product Overview
The Schneider BMXEHC0800 is an 8-channel high-speed counter module for the Modicon X80 / M340 platform. It supports up to 10 kHz counting with proximity sensors or incremental encoders and offers multiple counter functions including frequency metering and event counting.
Key Specs
- Channels: 8
- Max frequency: 10 000 Hz
- Input voltage: 24 V DC Type 3
- Functions: Up/down, frequency meter, loop (modulo), event count
- Connection: 20-pin connector
- Current: 200 mA at 3.3 V bus + 80 mA sensor
- Weight: 0.113 kg
Why Choose This
- Dedicated high-speed counting for encoders and sensors
- Flexible single or dual-phase input modes
- Standard X80 format for M340 and M580 systems
- Built-in comparison, capture and reset functions
Common Questions
- Max counting speed? 10 kHz.
- Compatible sensors? 24 V proximity and push-pull encoders.
- Platform? Modicon X80 / M340 / M580.
Mounting Steps
- Insert the module into an X80 rack slot.
- Connect sensors or encoders via the 20-pin terminal block.
- Configure channels and functions in EcoStruxure Control Expert.
- Power up and verify module status.
- Test counting accuracy with known pulse sources.
Buying Advice
- Ideal for position, speed or event counting applications.
- Confirm encoder output type matches module input.
- Keep as a spare for high-speed I/O requirements on X80 platforms.
