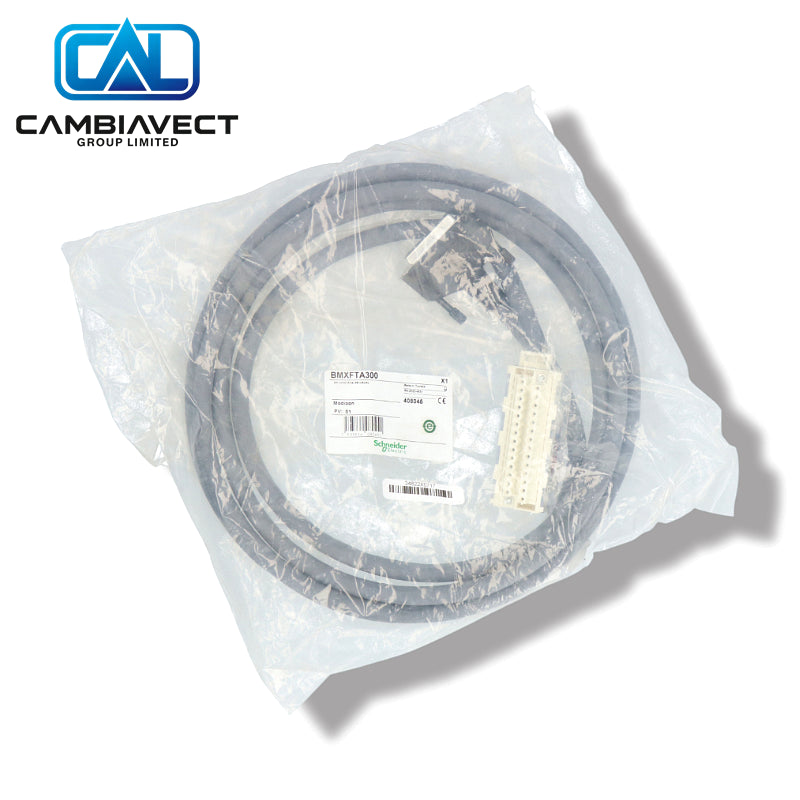

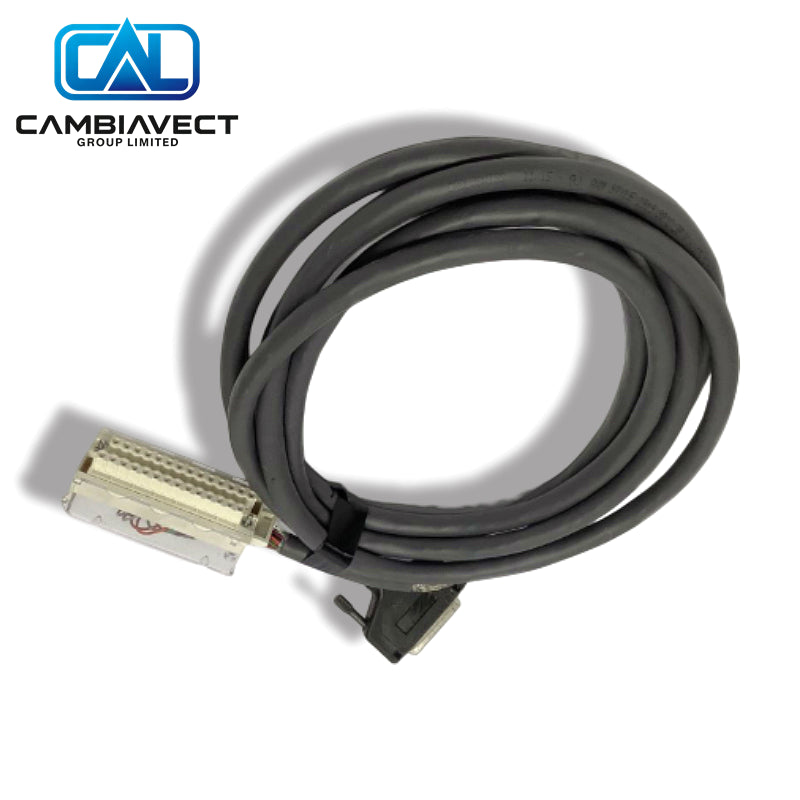

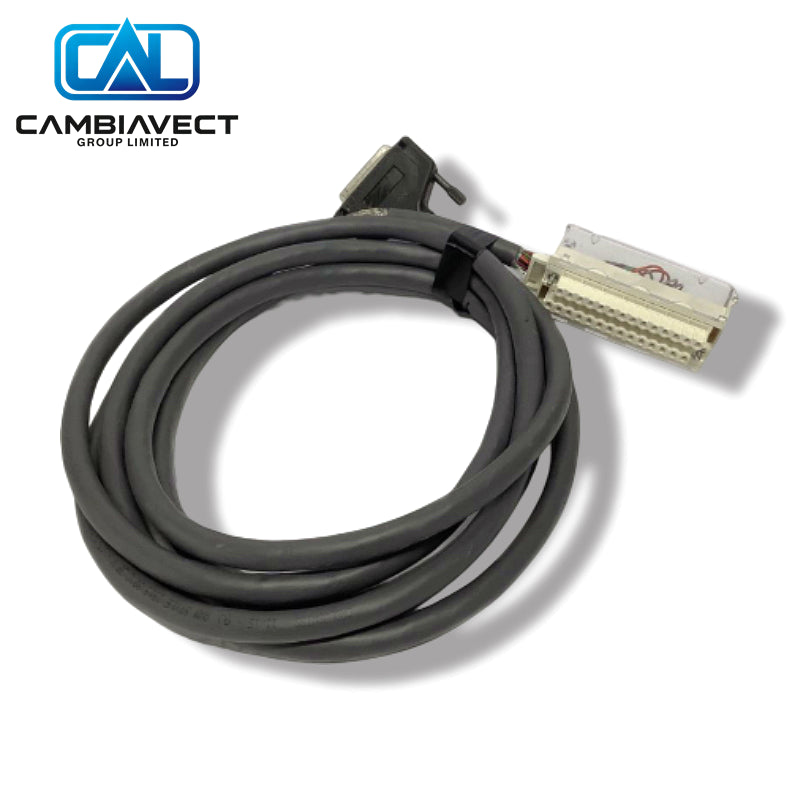

X80 Analog Cordset 3m BMXFTA300 Schneider 28-way SUB-D
In stock, ready to ship
Manufacturer: Schneider
Product No.: BMXFTA300
Product Type: Preformed Cordset
Product Origin: USA
Payment: T/T
Weight: 1200g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
Product Overview
The Schneider BMXFTA300 is a 3-metre preformed cordset that connects X80 analog input modules (BMXAMI0800 / BMXAMI0810) to TELEFAST ABE7 sub-bases via a 28-way terminal block and SUB-D25 connector.
Key Specs
- Length: 3 m (9.84 ft)
- Module side: 28-way removable terminal block
- Sub-base side: SUB-D25 connector
- Compatible modules: BMXAMI0800, BMXAMI0810
- Compatible sub-bases: ABE7CPA02 / 03 / 31 / 31E
- Weight: 0.5 kg
Why Choose This
- Pre-wired solution reduces installation time
- Reliable connection between X80 analog modules and TELEFAST
- Standard length for most cabinet layouts
- Genuine Schneider accessory
Common Questions
- Length? 3 metres.
- Compatible modules? BMXAMI0800 and BMXAMI0810.
- Connector types? 28-way terminal + SUB-D25.
Mounting Steps
- Attach the 28-way terminal block to the analog input module.
- Connect the SUB-D25 end to the TELEFAST sub-base.
- Secure both ends and route the cable neatly.
- Verify pin assignment and continuity if required.
- Power up and test analog signal integrity.
Buying Advice
- Use when interfacing X80 analog modules with TELEFAST bases.
- Confirm exact module and sub-base part numbers.
- Order as a matched accessory with the analog modules.
