Schneider
X-Bus Extension Kit BMXXBE2005 Schneider 0.8m
Manufacturer: Schneider
Product No.: BMXXBE2005
Product Type: Bus Extension Kit
Product Origin: USA
Payment: T/T
Weight: 2000g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
Product Overview

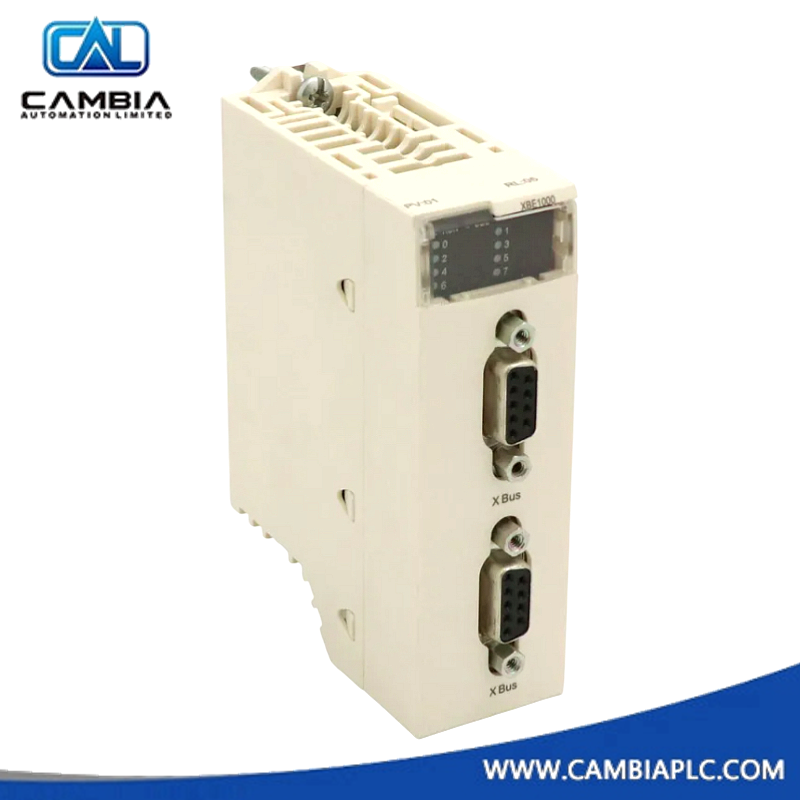

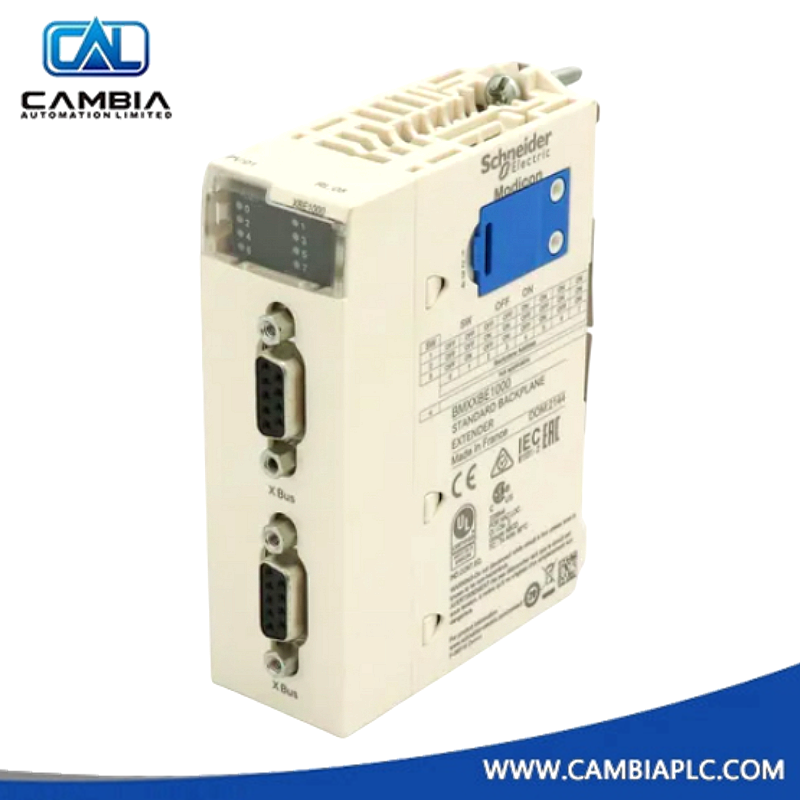

Schneider Electric BMXXBE2005 is a complete X-bus extension kit for Modicon M340 / X80. It includes two expander modules, a 0.8 m cable and two line terminators for connecting a remote I/O rack to the main CPU rack.
Key Specs
- Type: X-bus backplane extension kit
- Contents: 2× BMXXBE1000, 1× 0.8 m cable, 2× terminators
- Platform: Modicon M340 / X80
- Connection: SUB-D 9 class
- Distance: 0.8 m inter-rack
Why Choose This
- Complete kit for short-distance rack expansion
- Includes required terminators
- Maintains deterministic X-bus communication
- Supports distributed I/O layouts
Common Questions
- Contents? 2 expanders + 0.8 m cable + 2 terminators.
- Function? X-bus remote rack link.
- Platform? M340 / X80.
Mounting Steps
- Install expanders in main and remote racks.
- Connect the 0.8 m cable between expanders.
- Fit line terminators on open bus ends.
- Power both racks and verify bus status.
- Configure remote rack and test I/O.
Buying Advice
- Use for 0.8 m distances; longer cables available separately.
- Confirm remote rack power capacity.
- Critical kit for expanding single-rack systems.
