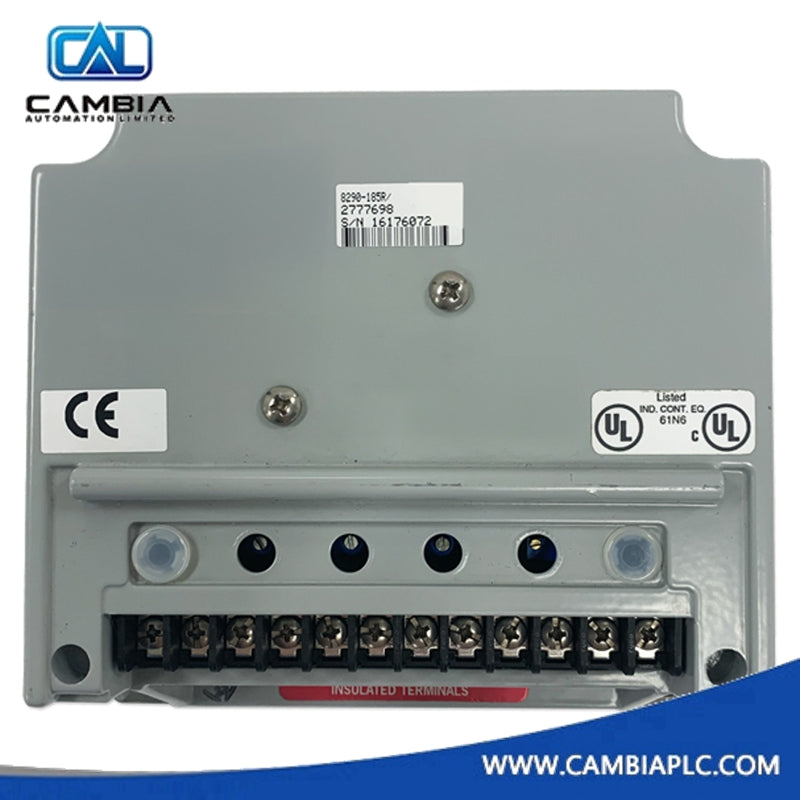

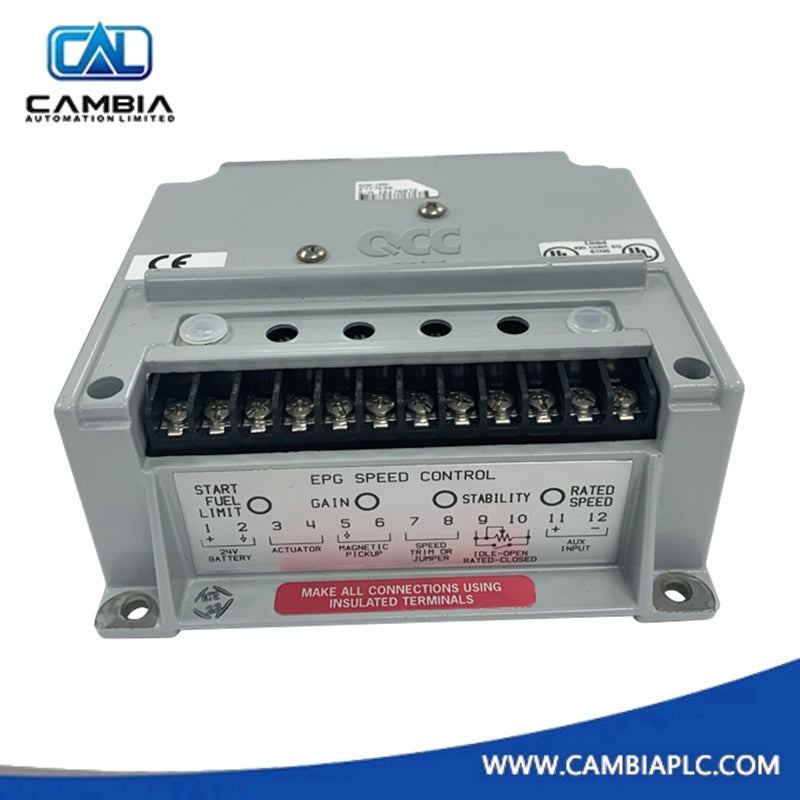

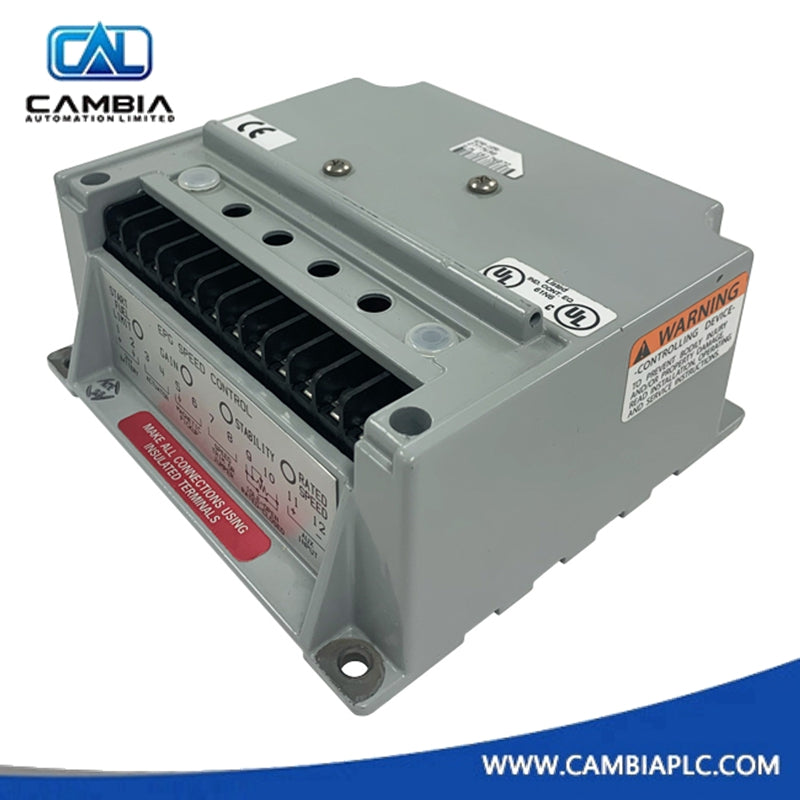

Woodward 8290-185 POWERED GOVERNOR
In stock, ready to ship
Manufacturer: Woodward
Product No.: 8290-185
Product Type: POWERED GOVERNOR
Product Origin: USA
Payment: T/T
Weight: 760g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
The WOODWARD 8290-185 is a 24 VDC electrically powered governor (EPG) designed for natural gas or gasoline engines. This speed control system includes an electronic speed control, actuator, and magnetic pickup. It supports isochronous operation with a start fuel-limit feature to prevent overspeed and minimize emissions during engine startup.
As part of the EPG series, the 8290-185 provides robust speed regulation for generator or prime mover applications. The governor allows for adjustable gain and stability, and protects against issues related to low sensor signals or battery problems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 8290-185 |
| Application | Natural gas / gasoline engines; speed control governor |
| System Voltage | 24 VDC |
| Features | Isochronous control; Start Fuel Limit option; Dual Dynamics selectable |
| Magnetic Pickup (MPU) Requirement | Minimum ~ 1.5 Vrms while cranking; usable over typical engine RPM ranges |
| Operating Voltage Range | ≈ 20-32 VDC nominal |
| Power Consumption | Up to ~ 95 W maximum when governor and associated components are active |
| Fuse / Protection | Requires ~ 10 A fuse or circuit breaker in non-grounded battery lead |
| Speed Adjustment / Control | Gain and Stability adjustable; Idle and Rated speed pots; idle/rated switch |
| Mounting & Wiring | Requires close wiring to battery, actuator, and MPU; wire length limits for different gauge wires |
| Operating Temperature | −40 to +75 °C |
| Contains Actuator | Yes, actuator is included as part of the full EPG system |
| Return / Shut-off Torque | Provided by internal return springs in actuator for decrease fuel direction |
| Certification / Compliance | Conformant with directives for EPG series; start fuel limit feature is EU-directive compliant |
Key Features & Benefits
-
Isochronous Control: Provides precise and consistent speed regulation.
-
Start Fuel Limit: Helps prevent overspeed and excessive emissions during engine startup.
-
Dual Dynamics Selectable: Offers flexibility in speed control performance.
-
Wide Operating Voltage Range: Supports 20-32 VDC, making it suitable for a variety of engine applications.
-
Powerful Protection: Designed with a 10 A fuse or circuit breaker requirement to ensure safe operation.
