Schneider

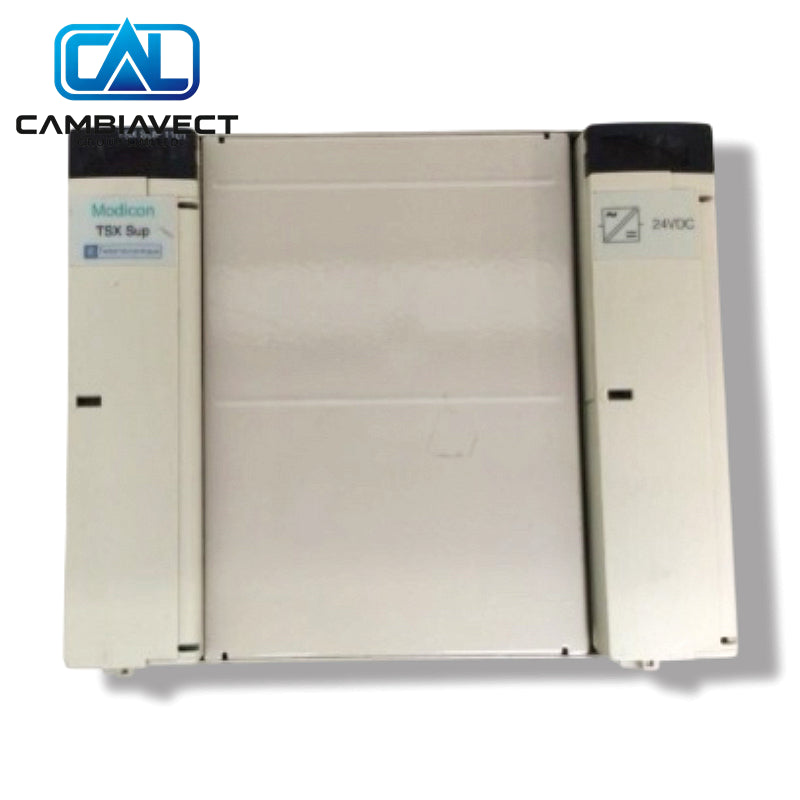

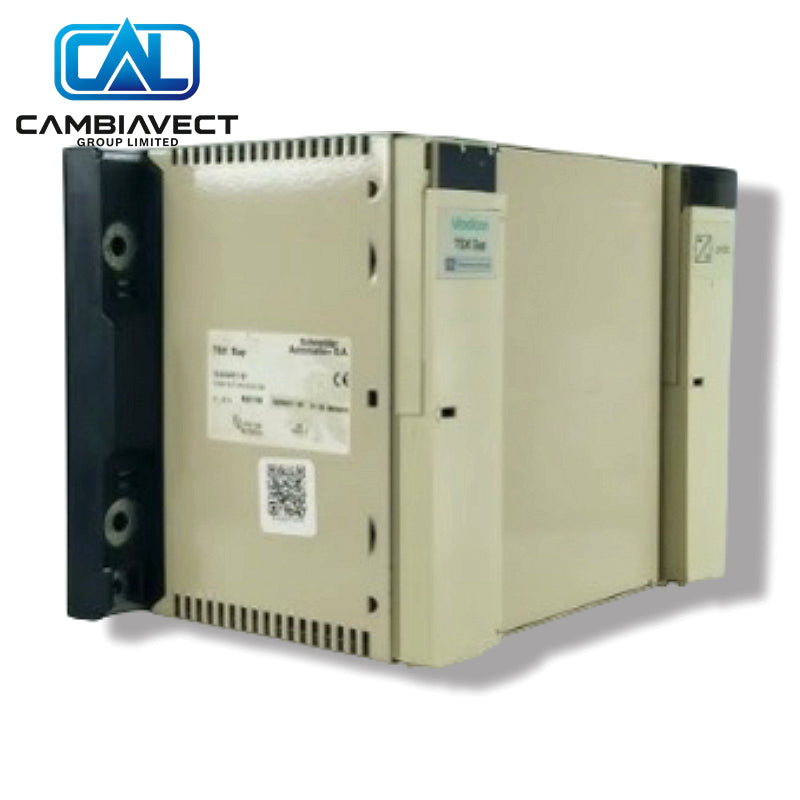

TSX Power Supply 24VDC 10A TSXSUP1101 Schneider
In stock, ready to ship
Manufacturer: Schneider
Product No.: TSXSUP1101
Product Type: Power Supply
Product Origin: USA
Payment: T/T
Weight: 1700g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
Product Overview
Schneider TSXSUP1101 is a process power supply for Modicon TSX Micro and Premium systems. It converts 100–240 V AC input to a regulated 24 V DC output rated at 10 A for powering I/O and field devices.
Key Specs
- Input: 100–240 V AC
- Output: 24 V DC / 10 A
- Platform: Modicon TSX Micro / Premium
- Mounting: Panel or perforated plate
- Protection: Overload and short-circuit
Why Choose This
- Dedicated 24 V DC supply for TSX systems
- 10 A capacity for multiple I/O modules and sensors
- Wide AC input range
- Industrial-grade design for continuous operation
Common Questions
- Output rating? 24 V DC at 10 A.
- Input voltage? 100–240 V AC.
- Platform? TSX Micro and Premium.
Mounting Steps
- Mount the supply on panel or Telequick plate.
- Connect AC input and protective earth.
- Wire the 24 V DC output to the system and field devices.
- Observe polarity and recommended wire sizes.
- Power up and verify output voltage under load.
Buying Advice
- Use when additional or replacement 24 V DC capacity is needed.
- Calculate total load including sensors and actuators.
- Standard spare for TSX Micro/Premium installations.
