Bently Nevada

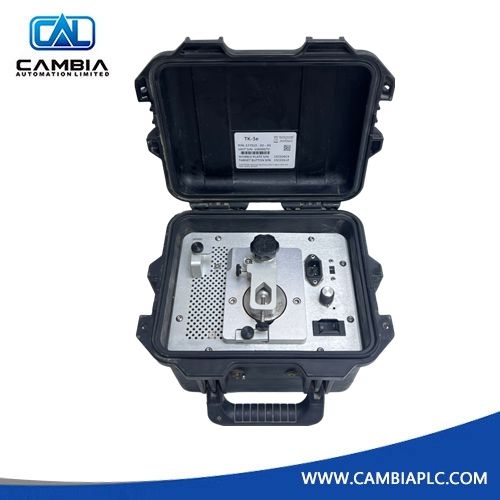

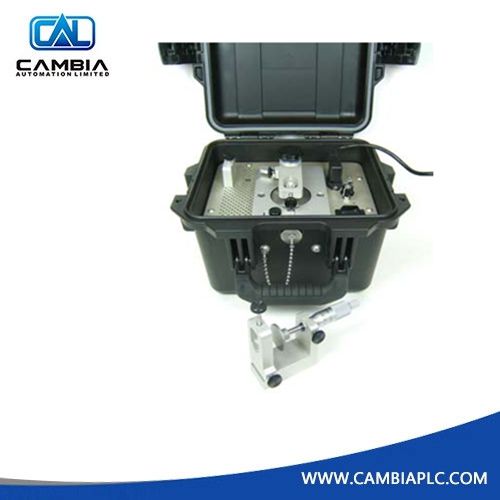

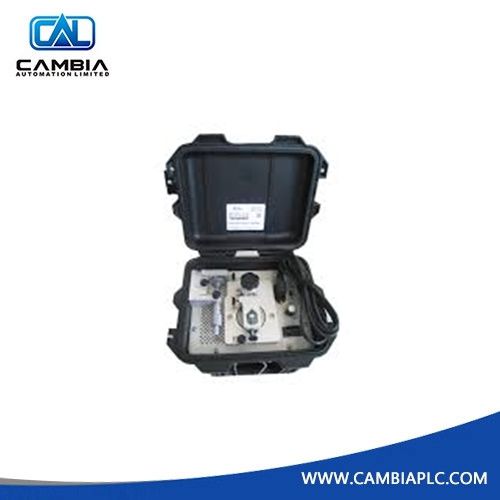

TK-3e 177313-02-01 Bently Nevada Proximity System Calibration Kit
In stock, ready to ship
Manufacturer: Bently Nevada
Product No.: TK-3e 177313-02-01
Product Type: Proximity System Calibration Kit
Product Origin: USA
Payment: T/T
Weight: 8000g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
Product Description
The 177313-02-01 (TK-3e) is a precision calibration and verification instrument for Bently Nevada proximity transducer systems. It simulates shaft vibration and displacement, enabling technicians to verify calibration of proximity probes, extension cables, and Proximitor® sensors without removing them from machinery. Compatible with 3500, 3300, and 2300 series systems, it ensures displacement readings comply with API 670 standards.
Technical Specifications
| Item | Specification |
|---|---|
| Model | TK-3e (Electric Driven) |
| Part Number | 177313-02-01 |
| Operating Temperature | 0°C to 54°C (32°F to 130°F) |
| Dimensions | 19.5 cm x 29.9 cm x 24.8 cm |
| Weight | 8.0 kg |
Key Features & Benefits
-
Universal Compatibility: Supports nearly all Bently Nevada proximity probes (5mm, 8mm, 11mm, 25mm).
-
Dual Calibration Modes: Static micrometer verification and dynamic wobble plate vibration simulation.
-
Ruggedized Portability: Heavy-duty, impact-resistant carrying case for harsh industrial environments.
-
Accurate Verification: Ensures alarm and trip setpoints of monitors meet API 670 requirements.
Operational Application
The TK-3e is used for field or in-situ verification of proximity probes in turbines, compressors, and other rotating machinery. It allows calibration of displacement signals before they reach 3500, 3300, or 2300 series monitors, ensuring accurate vibration and position readings for machinery protection systems.
Technical FAQ
Q: Does the TK-3e require a separate power supply for the micrometer?
A: No. The micrometer is mechanical for static tests. The electric motor powers only the dynamic vibration simulation.
Q: Can this unit calibrate Velocity sensors or Accelerometers?
A: No. TK-3e is designed for proximity (displacement) probes. Accelerometers require the TK-3g or a dedicated shaker table.
