GE

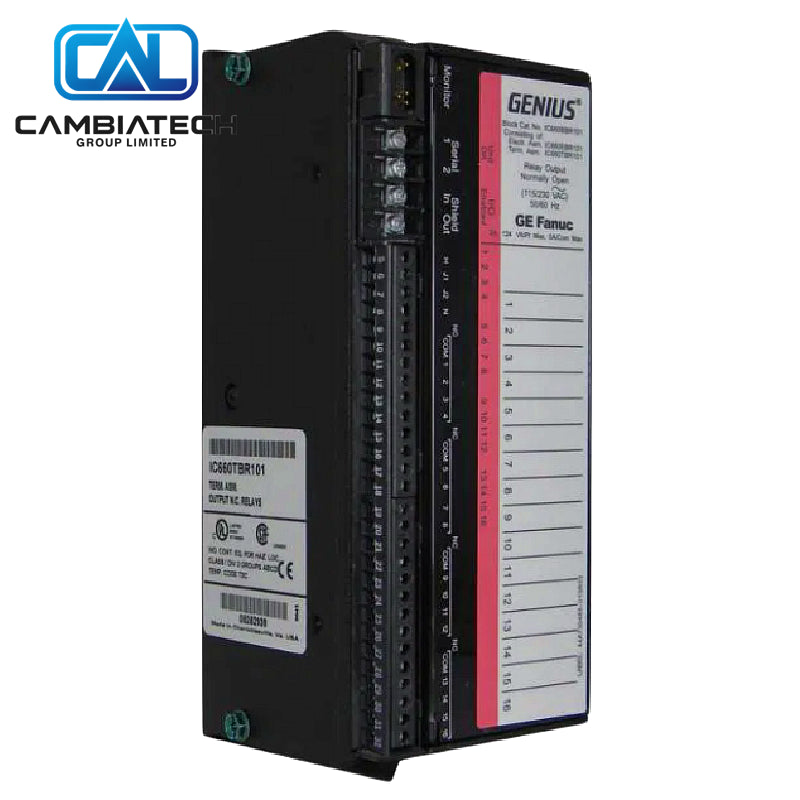

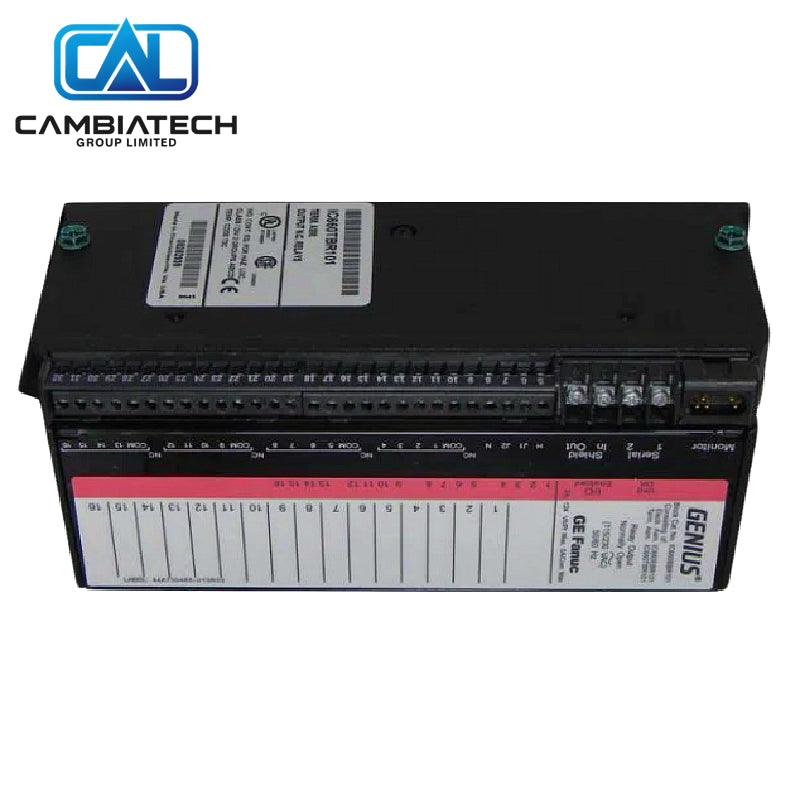

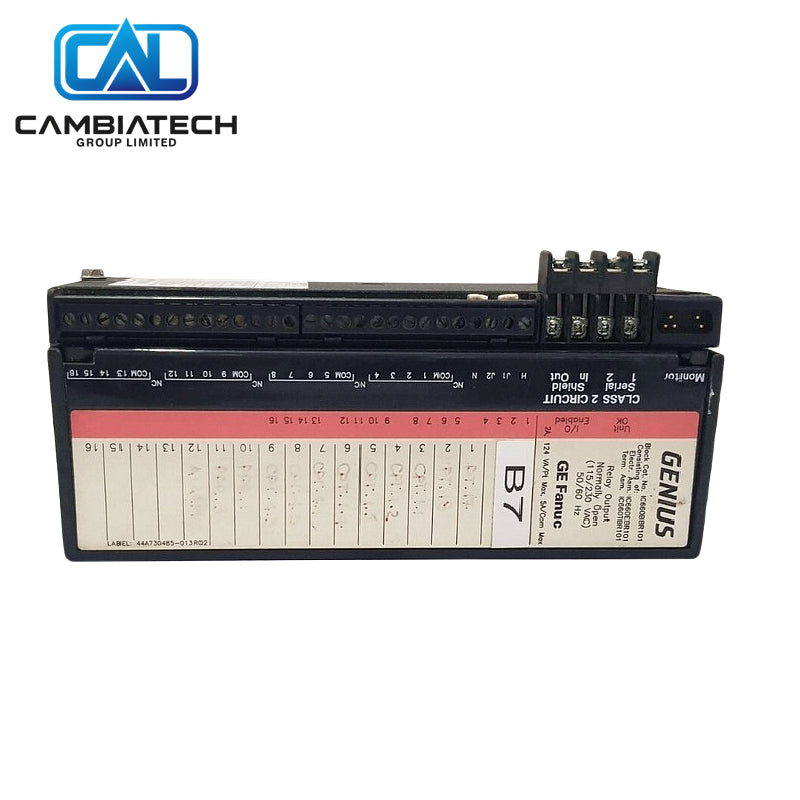

Terminal Assembly 16 Relay Output IC660TBR101 GE Genius
In stock, ready to ship
Manufacturer: GE
Product No.: IC660TBR101
Product Type: Terminal Assembly
Product Origin: USA
Payment: T/T
Weight: 1500g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
Product Overview
The GE IC660TBR101 is a terminal assembly for Genius I/O providing 16 relay output circuits in a screw-terminal enclosure. It supports 115/230 VAC selectable voltage and allows the electronics block to be removed while leaving field wiring intact.
Key Specs
- Circuits: 16 relay outputs
- Voltage rating: 115/230 VAC selectable
- Enclosure: Screw terminal box
- Field wiring: 22–12 AWG copper
- Terminals: 32 positions
- Feature: Remove block with wiring intact
- System: GE Genius I/O
Why Choose This
- 16-channel relay output termination
- Field wiring remains when electronics are removed
- Selectable 115/230 VAC
- Robust screw-terminal design
Common Questions
- Outputs? 16 relay.
- Voltage? 115/230 VAC selectable.
- Feature? Wiring stays when block is removed.
Mounting Steps
- Mount the terminal assembly in the panel.
- Wire the field loads to the screw terminals.
- Install the matching Genius electronics block.
- Connect the Genius Bus.
- Configure and test the relay outputs.
Buying Advice
- Required terminal assembly for corresponding Genius relay output blocks.
- Confirm voltage selection and load ratings.
- Useful spare for Genius relay output installations.
