Emerson
Temperature Converter MTL4573 THC/RTD to 4-20mA
Manufacturer: Emerson
Product No.: MTL4573
Product Type: Temperature Converter
Product Origin: USA
Payment: T/T
Weight: 1700g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
Product Overview

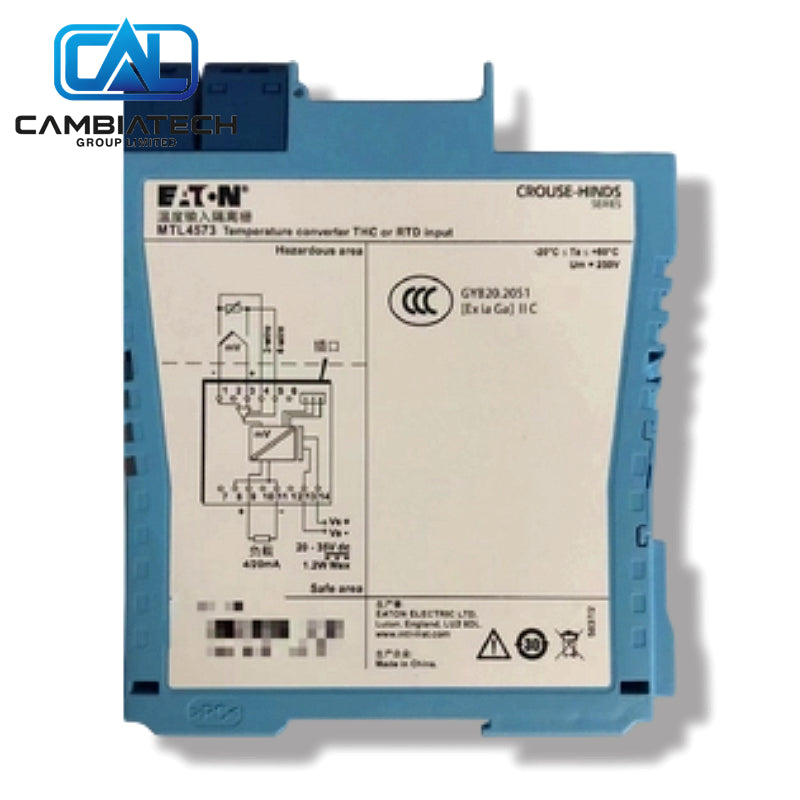

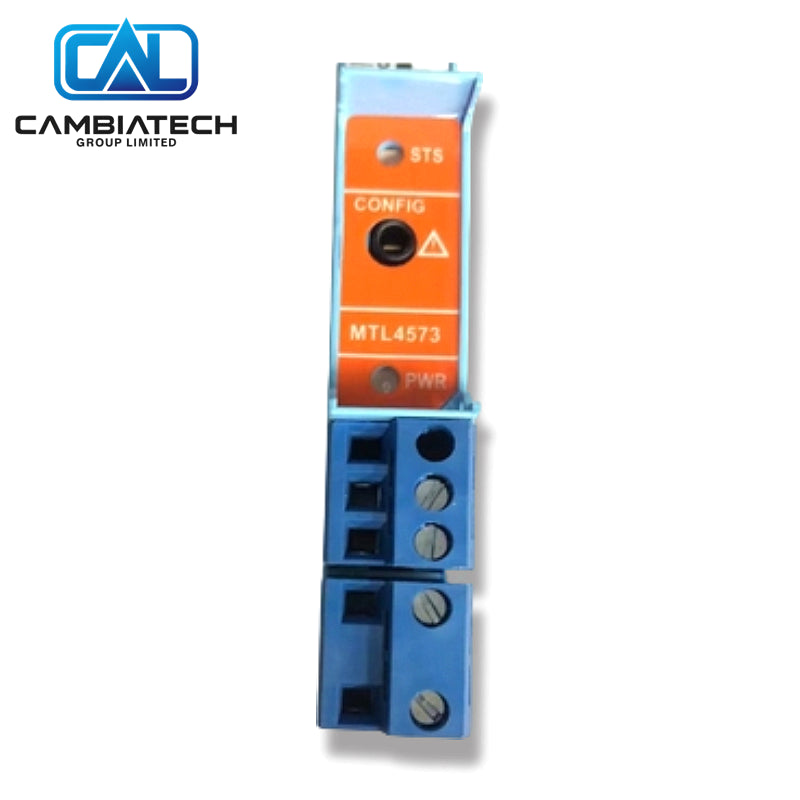

The MTL4573 is a single-channel temperature converter from the MTL4500 series. It converts thermocouple or RTD signals from hazardous areas into a 4–20 mA safe-area output, with configurable linearization, cold-junction compensation and early burnout detection.
Key Specs
- Channels: 1
- Input: Thermocouples and RTDs (2/3/4-wire)
- Output: 4–20 mA
- Features: Built-in CJC, early burnout detection
- Configuration: PC software (MTL PCS45 class)
- Mounting: MTL4500 backplane
- Hazardous area: Zone 0 / Div 1 class
Why Choose This
- Supports multiple THC and RTD sensor types
- Configurable ranging and linearization
- Early burnout detection for thermocouples
- Compact backplane-mounted design
Common Questions
- Input? THC or RTD.
- Output? 4–20 mA.
- CJC? Yes, built-in.
Mounting Steps
- Install on the MTL4500 backplane.
- Connect the hazardous-area sensor and safe-area output.
- Apply 24 V DC power.
- Configure sensor type and range via software.
- Verify 4–20 mA output and diagnostics.
Buying Advice
- Select for single-channel temperature conversion without dedicated alarm output.
- Confirm sensor compatibility and backplane type.
- Useful spare for MTL4500 temperature converter applications.
