Emerson

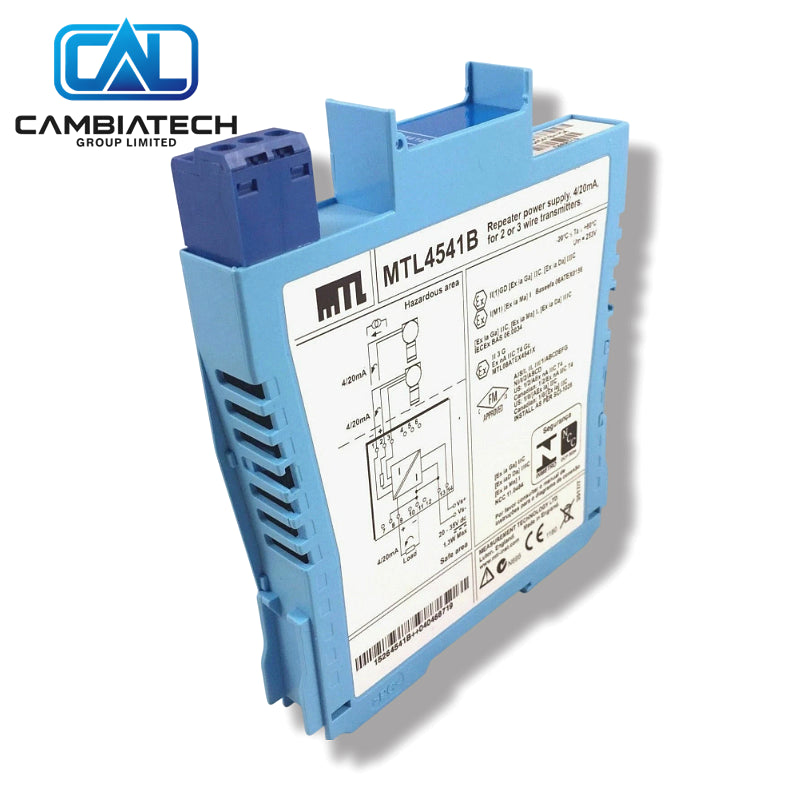

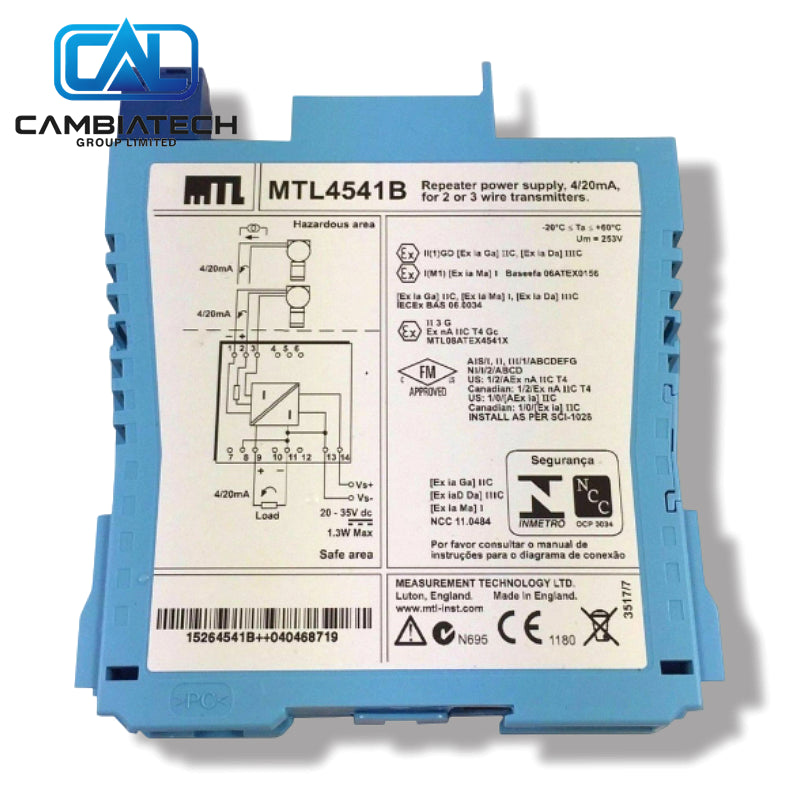

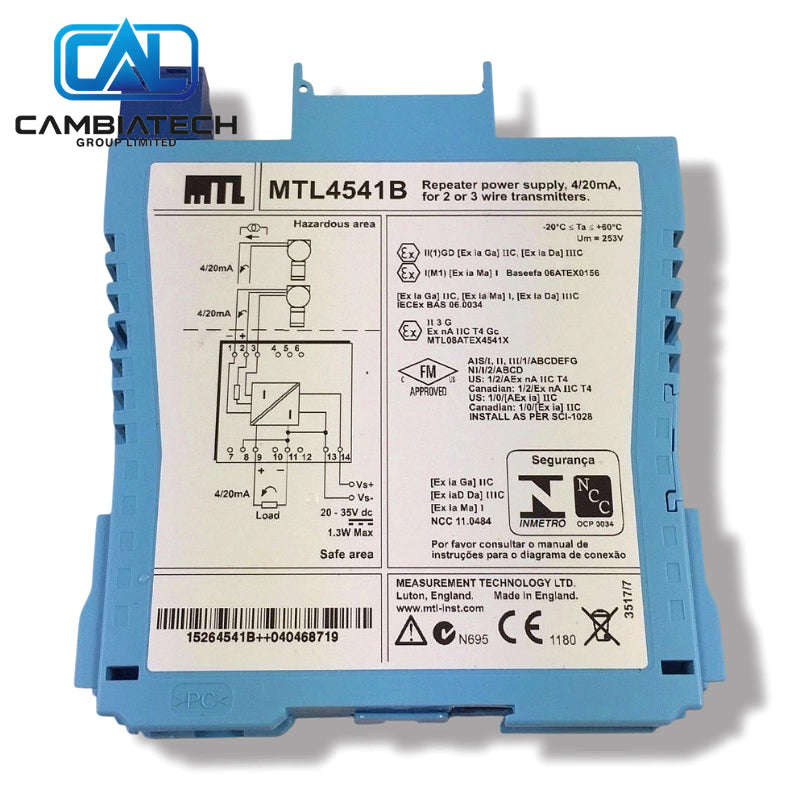

Single Channel HART Isolator MTL4541B 4-20mA
Manufacturer: Emerson
Product No.: MTL4541B
Product Type: Transmitter Isolator / Repeater Power Supply
Product Origin: USA
Payment: T/T
Weight: 1600g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
Product Overview
MTL4541B is a single-channel intrinsically safe isolator for 2-wire or 3-wire 4–20 mA/HART transmitters in hazardous areas. It provides 16.5 V transmitter power and repeats the signal to the safe area. The “B” version is adapted for direct substitution of legacy MTL4041B modules on existing backplanes.
Key Specs
- Channels: 1
- Signal: 0–24 mA (4–20 mA nominal) with HART
- Transmitter supply: 16.5 V at 20 mA
- Safe-area load: Up to 450 Ω @ 20 mA class
- Accuracy: ±15 µA at 20 °C class
- Legacy compatibility: Adapted for MTL4041B substitution
- Mounting: MTL4500 backplane
Why Choose This
- Single-channel HART-compatible isolator
- Powers hazardous-area transmitters
- Direct replacement path for MTL4041B installations
- Certified for Zone 0 / Div 1 applications
Common Questions
- Channels? 1.
- HART? Yes.
- Legacy? Compatible with MTL4041B backplanes.
Mounting Steps
- Install the module on the compatible backplane.
- Wire the hazardous-area transmitter and safe-area load.
- Connect system power.
- Verify loop current and HART communication.
- Confirm isolation and status.
Buying Advice
- Choose for single-channel HART transmitter isolation or MTL4041B replacement.
- Confirm backplane and load requirements.
- Useful spare for MTL4500 / legacy isolator positions.
