Honeywell

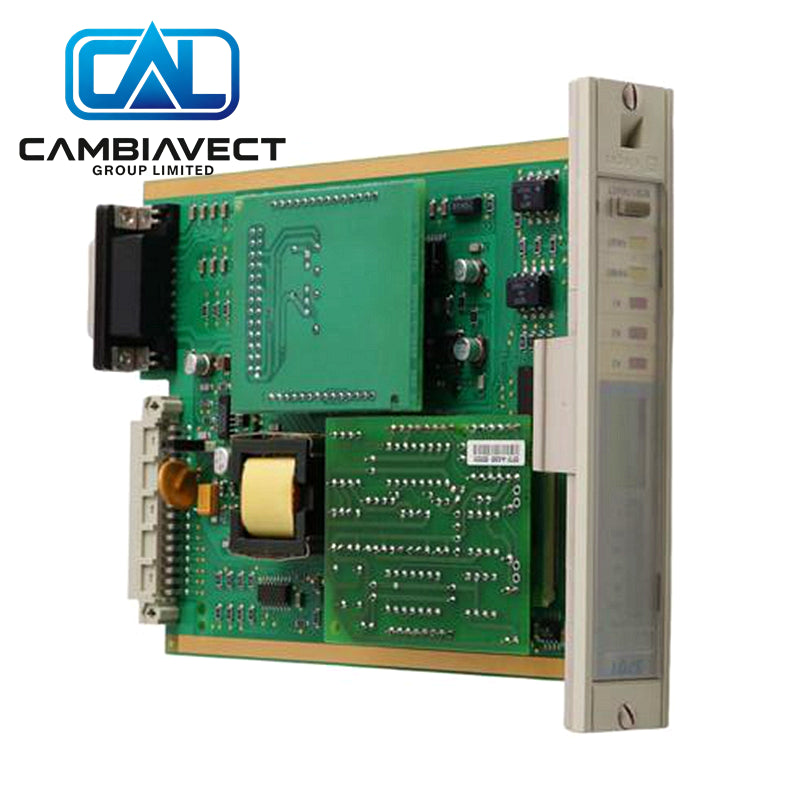

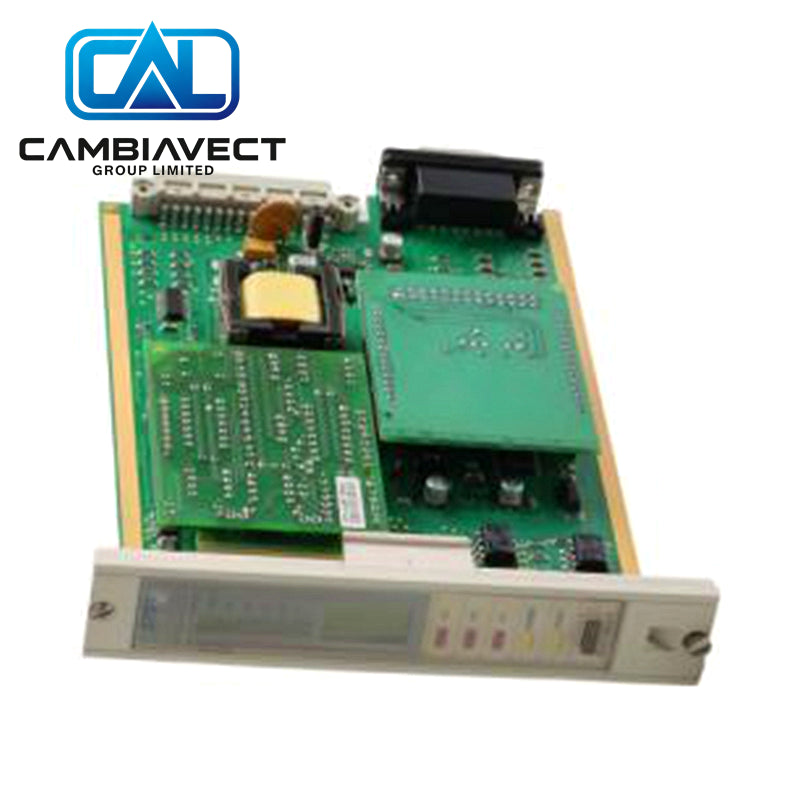

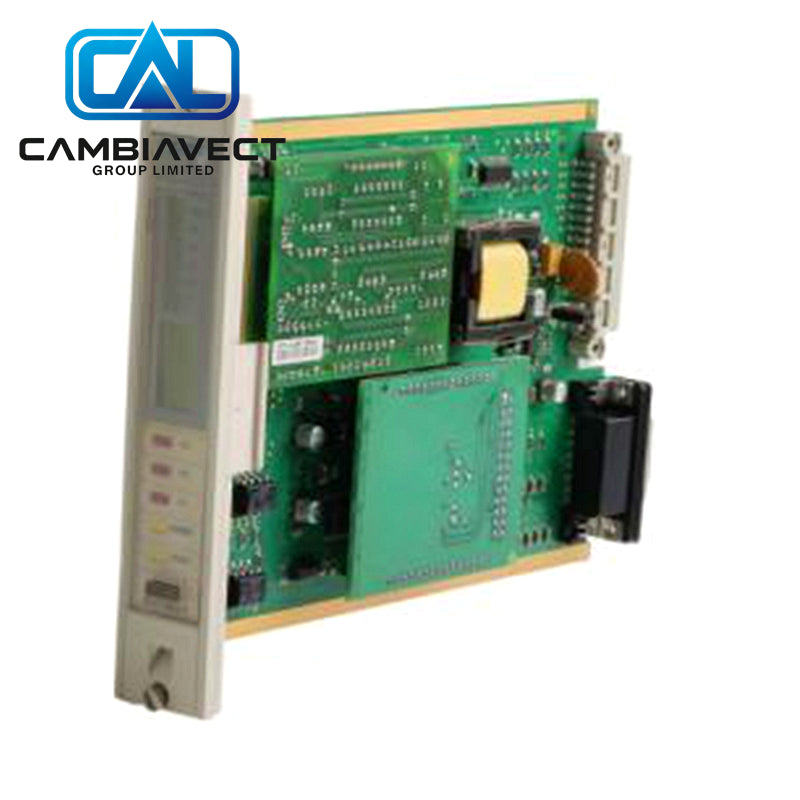

Single Channel Control Card 05701-A-0301 4-20mA System 57
In stock, ready to ship
Manufacturer: Honeywell
Product No.: 05701-A-0301
Product Type: Single Channel Control Card
Product Origin: USA
Payment: T/T
Weight: 1700g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
Product Overview
Honeywell 05701-A-0301 is a Single Channel Control Card for System 57 designed for 4–20 mA gas detectors. It provides control, display and alarm facilities for one connected detector, with front-panel indication of gas reading and channel status.
Key Specs
- Type: Single Channel Control Card 4–20 mA
- Input: 4–20 mA gas detector signal
- Display: Analogue bar, digital reading, message and status icons
- Alarms: A1, A2, A3 LEDs plus Fault and Inhibit
- Supply: 18–32 V DC
- Power consumption: Approx. 3.25 W typical class
- System: Honeywell Analytics System 57 / 5701
Why Choose This
- Dedicated 4–20 mA detector interface
- Local display and alarm indication
- Microprocessor-controlled and configurable
- Standard System 57 control card form factor
Common Questions
- Input? 4–20 mA.
- Channels? 1.
- System? System 57.
Mounting Steps
- Insert the card into the System 57 rack slot.
- Connect the 4–20 mA detector field wiring.
- Configure alarm setpoints and detector type via the engineering facilities.
- Power up and verify gas reading and status LEDs.
- Test alarm reset and inhibit functions.
Buying Advice
- Select for 4–20 mA gas detectors on System 57.
- For catalytic sensors use the catalytic version (e.g. 05701-A-0302 class).
- Useful spare for existing 4–20 mA control card positions.
