SIL3 Relay Output FTA Honeywell FC-TSRO-08UNI
In stock, ready to ship
Manufacturer: Honeywell
Product No.: FC-TSRO-08UNI
Product Type: Field Termination Assembly (Relay Output)
Product Origin: USA
Payment: T/T
Weight: 1200g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.

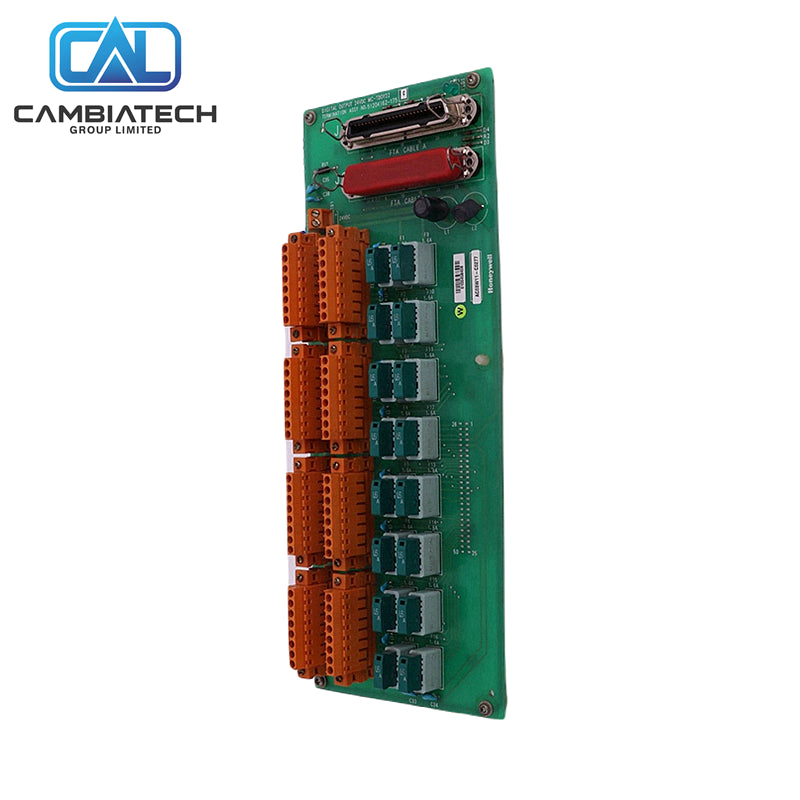

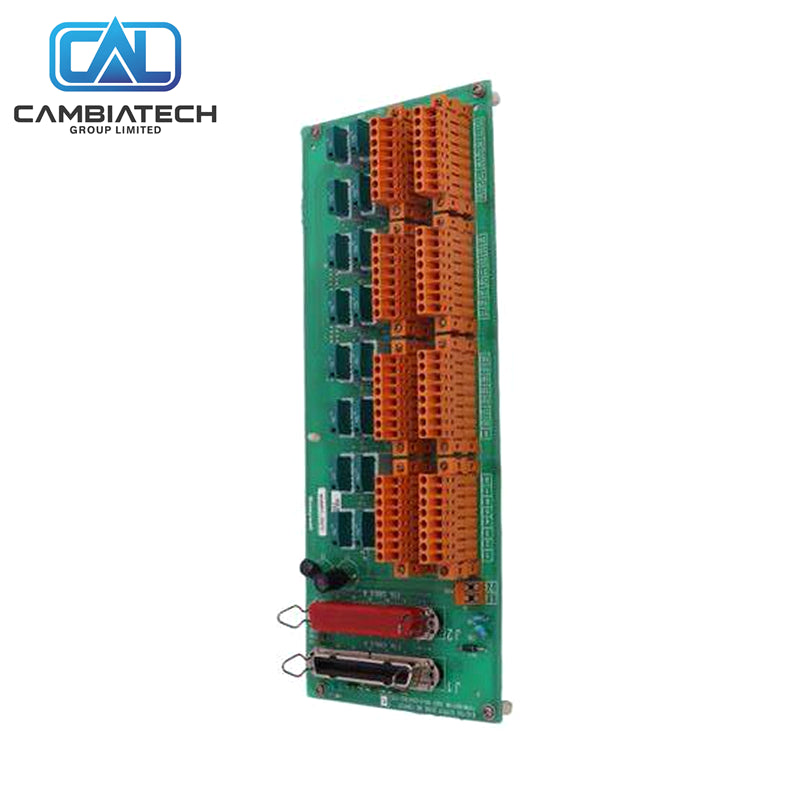

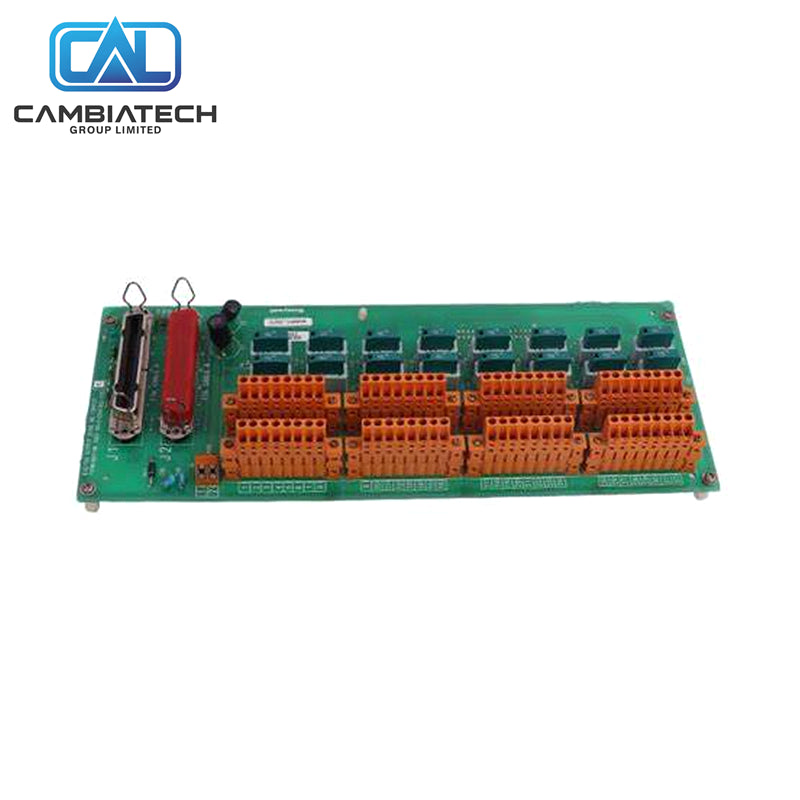

Honeywell FC-TSRO-08UNI is an 8-channel relay-based Field Termination Assembly for SIL3 applications. It interfaces the system interconnection cable to field wiring and provides common-power safe relay outputs.
Core Specs
- Channels: 8 relay outputs
- Safety rating: up to SIL3 (IEC 61508)
- Common external power connection
- Each channel: three relays + fused NO contact (2 A slow-acting)
- Capable of switching 115/230 VAC loads
- Status LED per channel
Highlights
- Designed for SIL3 without fault exclusions
- Wide load switching capability including AC voltages
- Clear energized-state indication
- Interfaces via SICC-0001/Lx system cable
FAQ
- How many channels? 8 safe relay outputs.
- SIL level? Up to SIL3.
- Can it switch AC loads? Yes, including 115/230 VAC.
Installation Guide
- Mount the FTA in the field termination area.
- Connect the system interconnection cable (SICC).
- Wire field devices to the screw terminals.
- Connect the common external power supply.
- Verify relay operation and LED status.
Selection Tips
- Use for SIL3 discrete output applications requiring relay isolation.
- Confirm load voltage and current are within relay ratings.
- Suitable for Safety Manager Fire & Gas and process safety systems.
