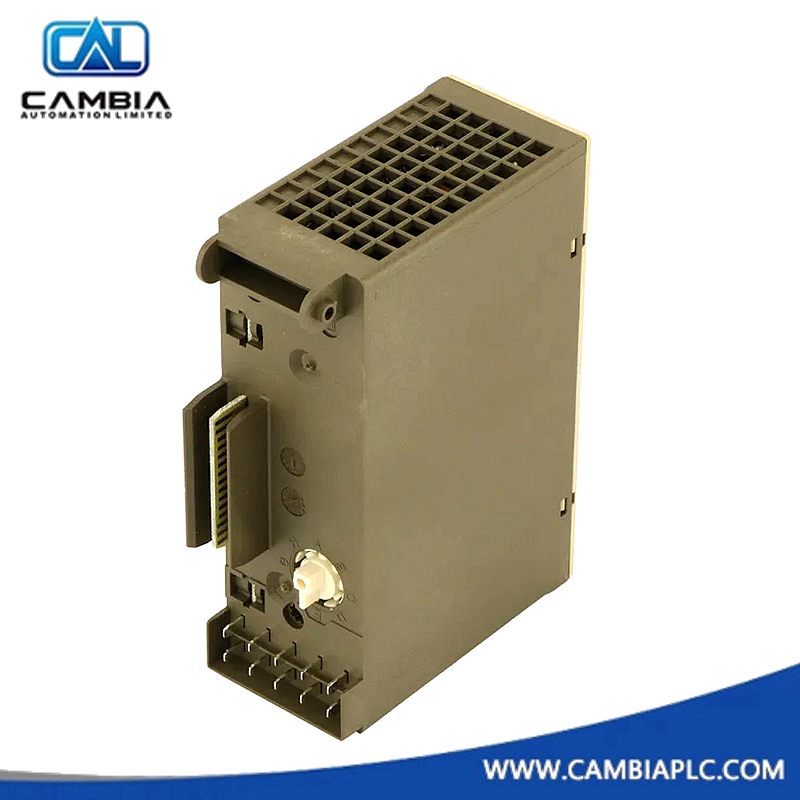

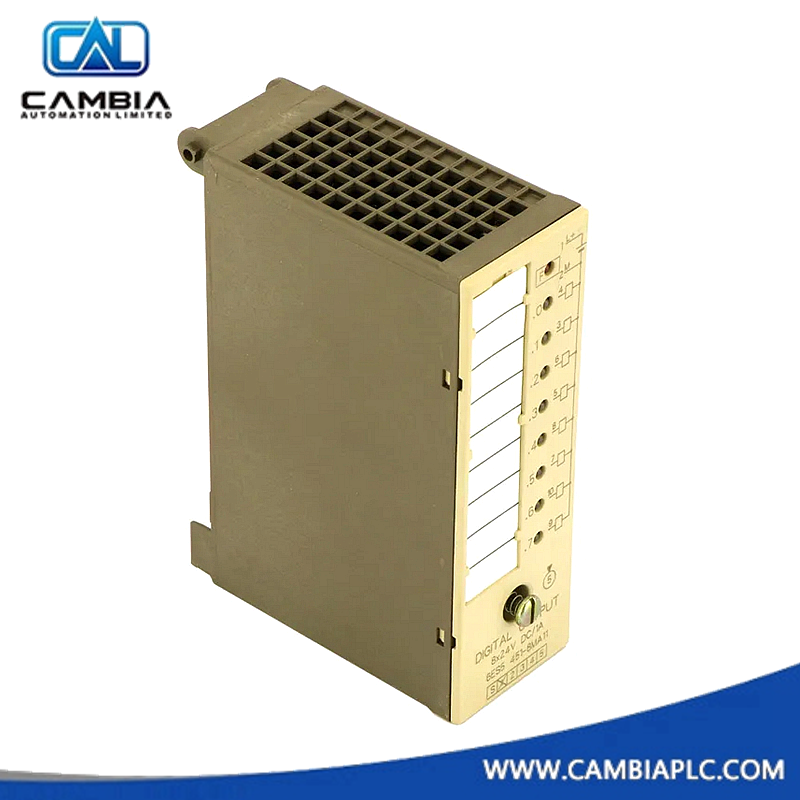

Siemens 6ES5451-8MA11 SIMATIC S5 Digital Output Module
In stock, ready to ship
Manufacturer: Siemens
Product No.: 6ES5451-8MA11
Product Type: Digital Output
Product Origin: Germany
Payment: T/T
Weight: 1000g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
Siemens 6ES5451-8MA11
S5-451 Digital Output Module – 24 V DC, 8 Channels
Product Overview
The 6ES5451-8MA11 is a digital output module from the Siemens SIMATIC S5 series, designed for use with S5-90U, S5-95U, S5-100U, ET 100U, and ET 200U systems. It features eight optically isolated 24 V DC outputs, suitable for controlling actuators, lamps, and other binary devices in industrial automation environments. The module safely converts PLC logic signals to field-level voltages.
- Model: 6ES5451-8MA11
- Product Type: Digital Output Module
- System Compatibility: SIMATIC S5-90U / 95U / 100U, ET 100U / ET 200U
Technical Specifications
| Attribute | Specification |
|---|---|
| Number of Outputs | 8 |
| Output Voltage | 24 V DC |
| Nominal Output Current | 1 A per channel |
| Lamp Load Capacity | Max. 10 W |
| Switching Frequency | 100 Hz (resistive), 2 Hz (inductive) |
| Power Loss | Typical 3 W |
| Isolation Voltage | 500 V AC (test voltage) |
| Operating Temperature | –25°C to +60°C |
| Dimensions (L × W × H) | 135 × 89 × 45 mm |
| Weight | 0.208 kg |
| RoHS Compliance | Not compliant |
