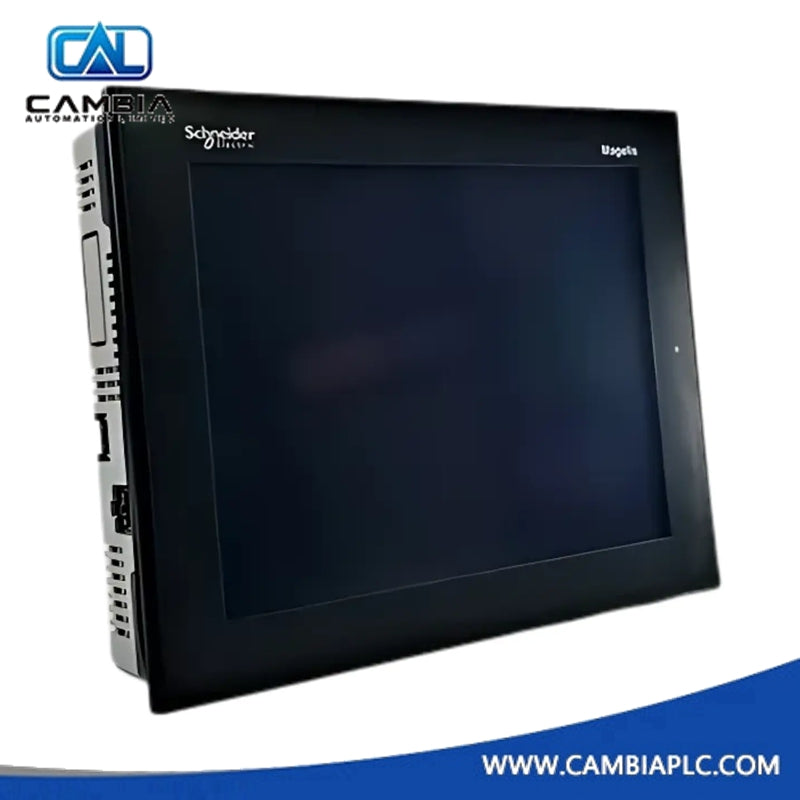

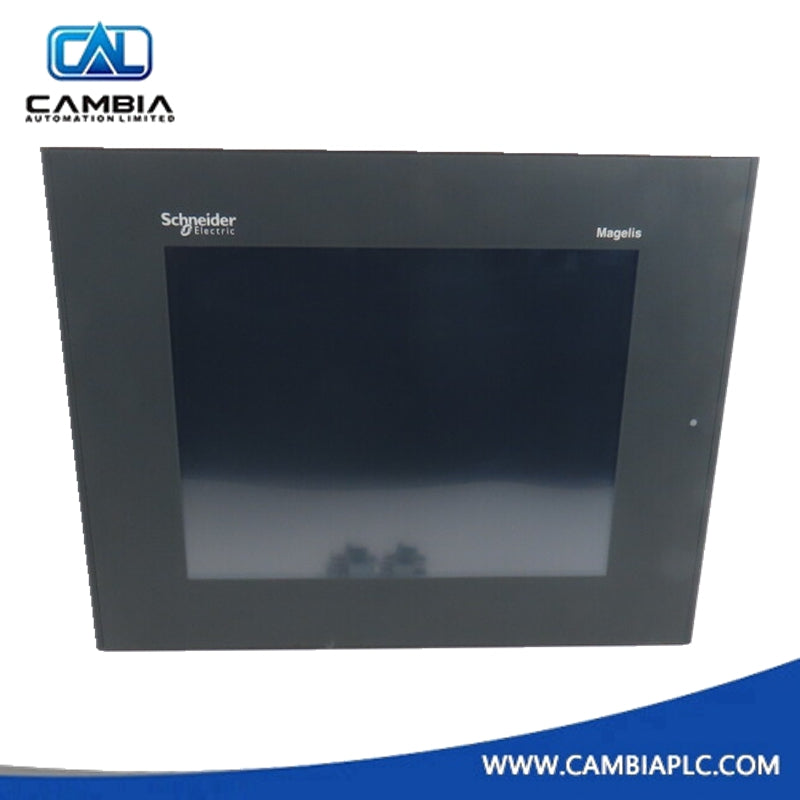

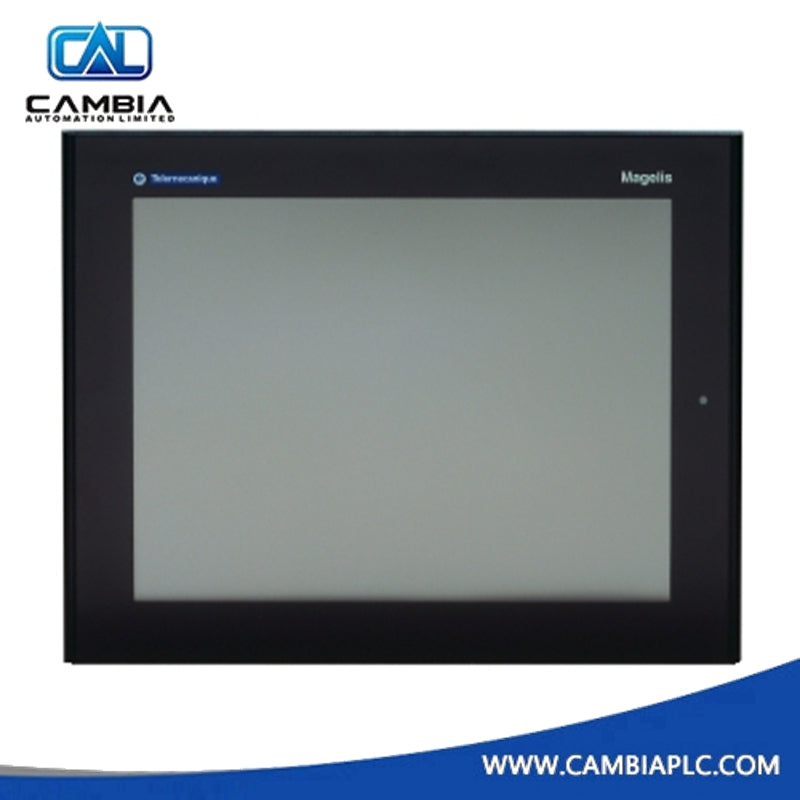

Schneider XBTGT5230 Advanced Touchscreen Panel
In stock, ready to ship
Manufacturer: Schneider
Product No.: XBTGT5230
Product Type: Advanced touchscreen panel
Product Origin: USA
Payment: T/T
Weight: 760g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
The Schneider XBTGT5230, part of the Harmony XBTGT series, delivers a high-performance 10.4-inch backlit color touchscreen. Designed for industrial environments, it offers flexible connectivity and advanced features to support automation systems.
Key Technical Specifications
| Specification | Details |
|---|---|
| Display Type | Backlit color STN LCD |
| Display Size | 10.4 inches |
| Resolution | 640 x 480 pixels (VGA) |
| Display Colors | 4096 colors |
| Touch Panel | Analog, 1024 x 1024 touch-sensitive zones |
| Processor | CPU RISC, 266 MHz |
| Memory | 512 KB SRAM (lithium battery backup), 32 MB Flash EPROM application memory |
| Operating System | Harmony |
| Communication Interfaces | RJ45 Ethernet TCP/IP, COM1 (RS232C/RS422/RS485), COM2 (RS485, Siemens MPI), 2 USB Type A ports |
| Power Supply | 24 V DC (19.2 to 28.8 V), external source |
| Power Consumption | 26 W |
| Dimensions (WxHxD) | 313 mm x 239 mm x 56 mm (12.3 in x 9.4 in x 2.2 in) |
| Weight | 3 kg (6.6 lbs) |
| Backlight Lifespan | 54,000 hours |
| Brightness & Contrast | Adjustable via touch panel (8 levels each) |
| Environmental Protection | Front IP65, rear IP20, NEMA 4X (indoor use) |
| Operating Temp. | 0 to 50 °C (32 to 122 °F) |
| Storage Temp. | -20 to 60 °C (-4 to 140 °F) |
| Relative Humidity | 10 to 90% (non-condensing) |
| Standards & Certifications | UL 1604, CSA C22.2 No 14, IEC 61000-6-2, FCC Class A, CE, ATEX Zone 2/22 |
Additional Features
-
Supports multiple communication protocols including Modbus TCP and Siemens MPI.
-
Equipped with a built-in real-time clock and data storage on Compact Flash card (≥1 GB).
-
Easy flush mounting using four spring clips or screw clamps.
-
Backlit display offers excellent visibility with adjustable brightness and contrast.
-
Robust aluminum alloy front and PPT enclosure ensure durability in industrial settings.
