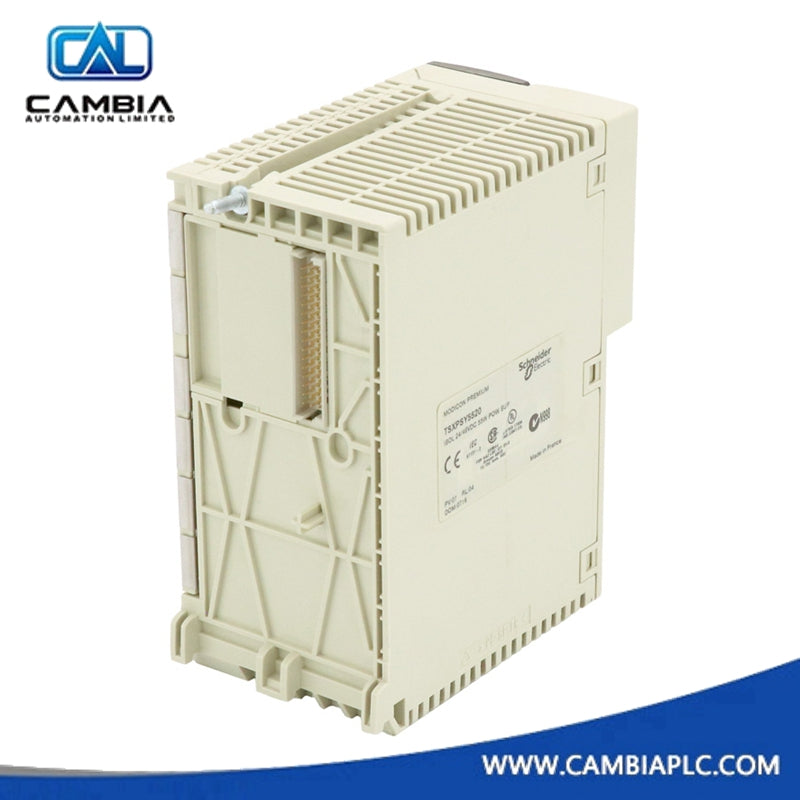

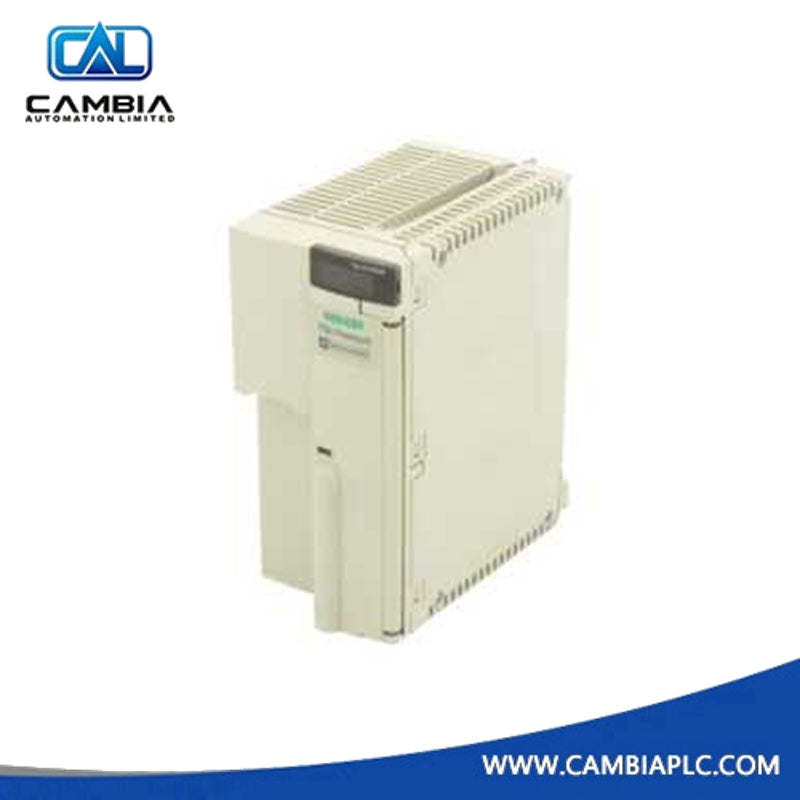

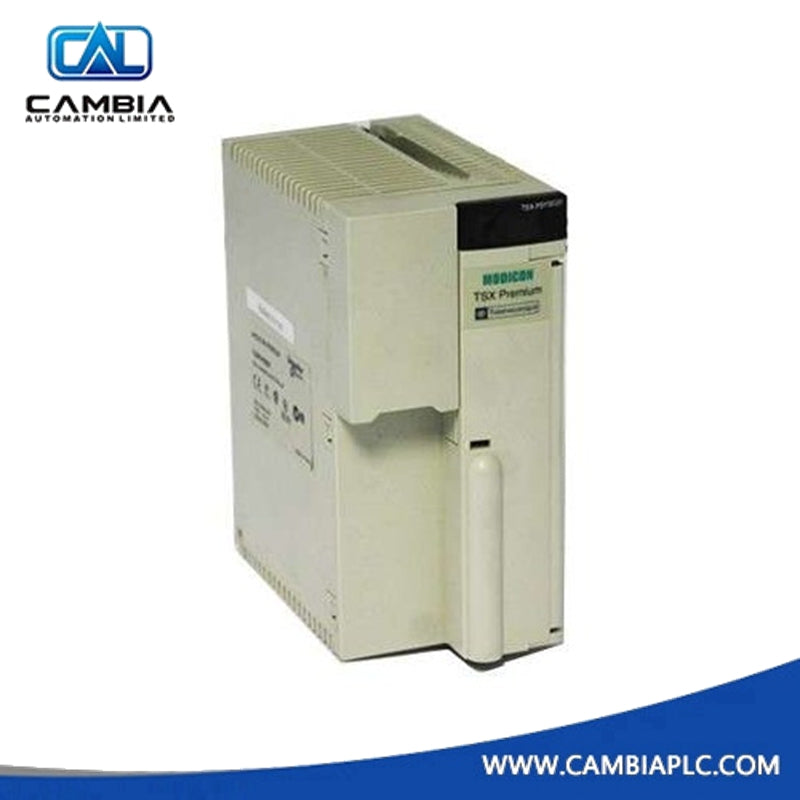

Schneider TSXPSY5520 Power Supply Module
In stock, ready to ship
Manufacturer: Schneider
Product No.: TSXPSY5520
Product Type: Power supply module
Product Origin: USA
Payment: T/T
Weight: 760g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
The TSXPSY5520 is a high-performance power module from Schneider Electric, designed for the Modicon Premium automation platform. It delivers stable DC output for both logic circuits and relay supply, ensuring reliable operation in demanding industrial environments.
Key Technical Specifications
| Specification Category | Details |
|---|---|
| Input Voltage Range | 24...48 V DC (permissible range: 19.2...60 V DC) |
| Input Current | ≤ 3000 mA @ 24 V; ≤ 1500 mA @ 48 V |
| Inrush Current | Max 15 A (for both 24 V and 48 V) |
| Inrush Energy | I²t: 50 A².s @ 24 V; 55 A².s @ 48 V |
| It: 7 A.s @ 24 V; 6 A.s @ 48 V | |
| Protection Types | 5 A time-delay fuse (primary), overload, overvoltage, and short-circuit protection (secondary) |
| Total Output Power | Up to 50 W |
| Output Voltage / Current | 5 V DC @ 7 A; 24 V DC @ 0.8 A (relay power supply) |
| Module Format | Double width |
| Net Weight | 0.89 kg (1.96 lb) |
| Insulation Resistance | ≥ 10 MΩ (primary/ground and primary/secondary) |
| Dielectric Strength | 2000 V (primary to earth and primary to secondary) |
| Local Indicators | 1 green LED (OK voltage), 1 red LED (battery fault - BAT) |
Environmental and Certification Details
-
Operating Temperature: 0 to 60°C (32 to 140°F)
-
Storage Temperature: -25 to 70°C (-13 to 158°F)
-
Relative Humidity: 10–95% (operation), 5–95% (storage), non-condensing
-
IP Protection Rating: IP20
-
Pollution Degree: 2
-
Microbreak Immunity: 1 ms
-
Altitude Limit: 0–2000 m (0–6561 ft)
-
Protective Coating: TC (Humiseal 1A33 conformal coating)
-
Certifications:
-
CE, UL 508, CSA C22.2
-
IEC 61131-2
-
ABS, DNV, RINA, RMRS, GL, BV
-
CSA C22.2 No 213 Class I Div 2 Groups A, B, C, D
Packaging & Logistics
| Packaging Info | Specification |
|---|---|
| Packaging Type | PCE (Individual Unit) |
| Dimensions | 26 × 18 × 9.5 cm (L × W × H) |
| Weight | 1.026 kg (2.262 lb) |
| Country of Origin | France |
| Returnable | No |
| Warranty Period | 18 months |
| GTIN / Barcode | 3595863950724 |
