Schneider TSXDEY32D2K Discrete Input Module
In stock, ready to ship
Manufacturer: Schneider
Product No.: TSXDEY32D2K
Product Type: Discrete Input Module
Product Origin: USA
Payment: T/T
Weight: 760g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.

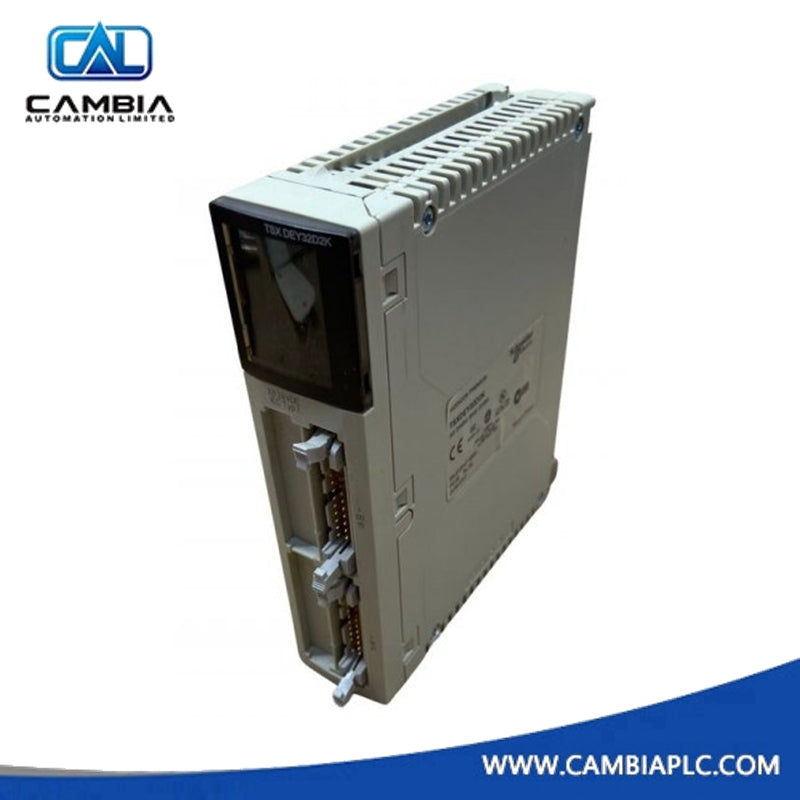

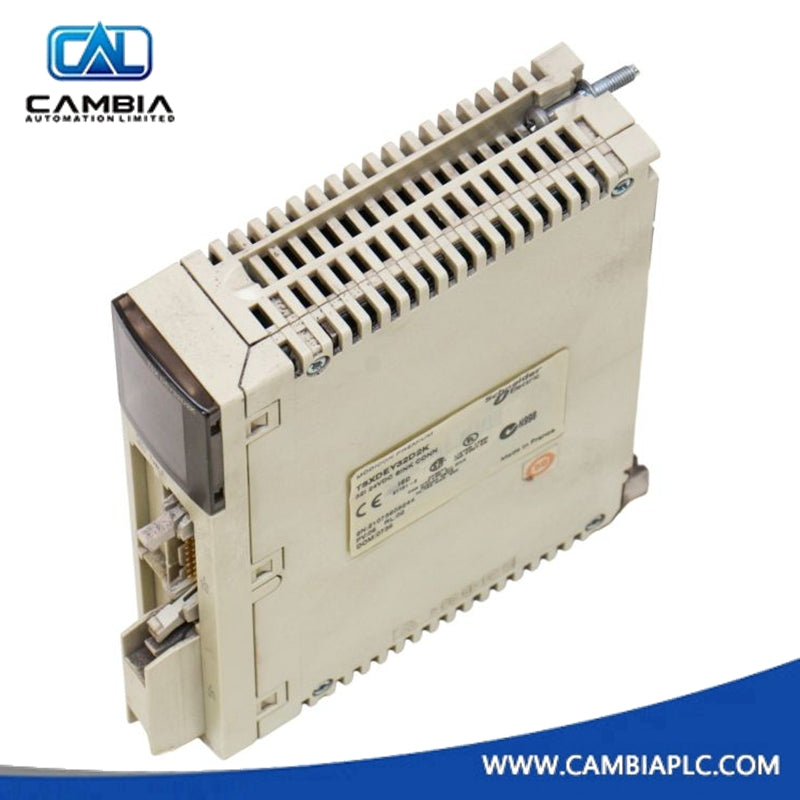

The TSXDEY32D2K from Schneider Electric is a 32-channel discrete input module designed for the Modicon Premium automation platform. It features isolated current sink inputs and supports 24 V DC logic with fast response times. The compact form factor and HE-10 connector ensure easy integration into standard PLC racks.
Key Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Discrete Input Module |
| Input Channels | 32 isolated inputs (sink type), EN/IEC 61131-2 Type 1 |
| Input Voltage | 24 V DC positive |
| Sensor Supply Range | 19…30 V DC |
| Input Current | 3.5 mA |
| Voltage – Logic 1 | ≥ 11 V |
| Current – Logic 1 | ≥ 3 mA |
| Voltage – Logic 0 | ≤ 5 V |
| Current – Logic 0 | ≤ 1.5 mA |
| Input Impedance | 6300 Ohm at logic 1 state |
| Response Time | ≤ 7 ms (typical 4 ms) |
| Isolation Resistance | ≥ 10 MΩ at 500 V DC |
| Dielectric Strength | 1500 V AC at 50/60 Hz |
| Power Dissipation | 1 W + 0.1 W × number of active channels |
| Current Consumption | 135 mA @ 5 V DC, 160 mA @ 24 V DC |
| Electrical Connection | HE-10 connector |
| Module Format | Standard |
| Weight (Net) | 0.3 kg |
| Marking & Approvals | CE marked |
Environmental & Compliance Details
-
Operating Temperature: 0 to 60°C
-
Storage Temperature: -25 to 70°C
-
Relative Humidity (Operation): 10–95% (non-condensing)
-
Relative Humidity (Storage): 5–95% (non-condensing)
-
Altitude Limit: 0–2000 m
-
Protection Class: IP20
-
Pollution Degree: 2
-
Protective Coating: TC treatment
-
Compliance Standards:
-
EN/IEC 61131-2
-
UL 508
-
CSA C22.2 No 142
-
CSA C22.2 No 213 (Class I, Div. 2, Groups A–D)
-
IEC 60664
-
73/23/EEC, 89/336/EEC, 92/31/EEC, 93/68/EEC
-
Certifications:
LR, GL, BV, RMRS, RINA, ABS, DNV
Packaging & Logistics
| Packaging Details | Specification |
|---|---|
| Unit Type | PCE (Single unit) |
| Package Dimensions | 26 × 18 × 5.5 cm (L × W × H) |
| Package Weight | 412 g |
| Country of Origin | France |
| Returnability | No |
