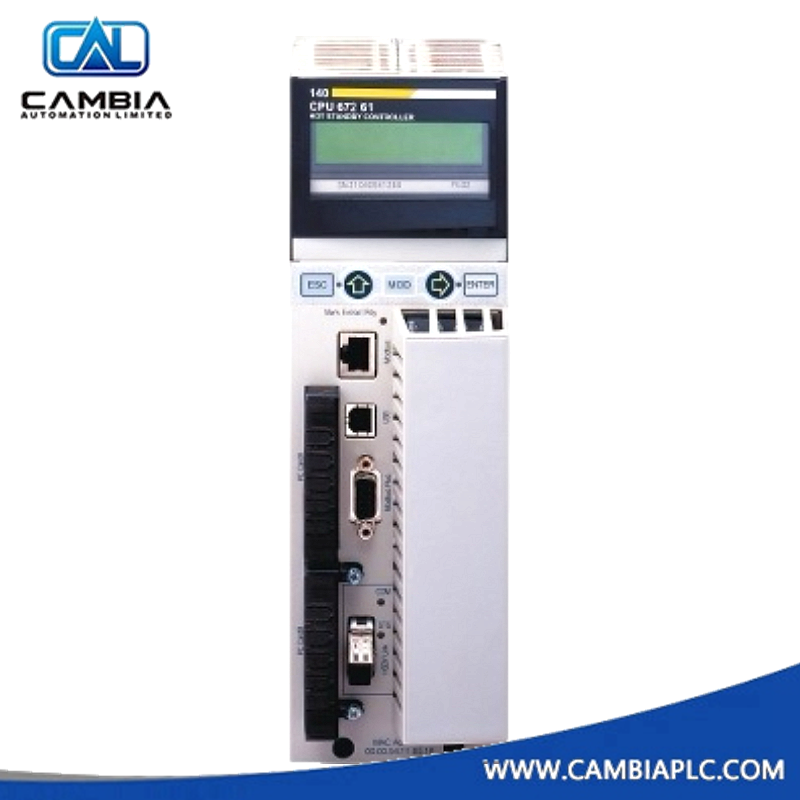

Schneider Modicon 140CPU67261 Unity Hot Standby Processor Module
In stock, ready to ship
Manufacturer: Schneider
Product No.: 140CPU67261
Product Type: Processor Module
Product Origin: France
Payment: T/T
Weight: 500g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
Overview
The 140CPU67261 is a high-performance Unity Hot Standby processor module designed for the Modicon Quantum automation platform. It features single-mode fiber optic synchronization and integrated Ethernet capabilities, enabling redundant control architectures for mission-critical applications.
Technical Specifications
- Manufacturer: Schneider Electric
- Brand: Modicon Quantum
- Catalog Number: 140CPU67261
- Product Type: Unity Hot Standby Processor
- Transmission Mode: Single-mode fiber optic
- Clock Frequency: 266 MHz
- Internal RAM: 3072 kB (1536 kB for data)
- Expandable Program Memory: 7168 kB via PCMCIA card
- Expandable File Storage: 8 MB via PCMCIA card
- Number of Local Racks: 2
- Distributed I/O Stations: Up to 63 (Modbus Plus)
- Remote I/O Stations: Up to 31 (S908, Ethernet Quantum, Ethernet X80)
- Discrete I/O Capacity: Up to 31744 inputs/outputs (remote)
- Analog I/O Capacity: Up to 1984 inputs/outputs (remote)
- Application-Specific I/O: Time stamping, counters, high-speed interrupts
- Communication Services: Ethernet router, Modbus, Modbus Plus, Profibus DP
- Integrated Ports: Modbus Plus, Modbus (RS232/485), USB, fiber optic
- Optional Modules Supported: Up to 6 (Ethernet, Modbus, Profibus, etc.)
- Execution Time (Boolean): 0.0525–0.075 µs per instruction
- Instruction Rate: Up to 20 Kinst/ms (100% Boolean)
- Bus Current Requirement: 2760 mA
- Local Signaling: LEDs for Ethernet activity, fault, and status
Dimensions and Weight
- Module Format: Standard Quantum slot size
- Mounting Type: Quantum rack-mounted
- Net Weight: 1.46 kg
Product Questions
Q: What is the function of the 140CPU67261?
A: It serves as a Unity Hot Standby processor for redundant control in Modicon Quantum systems, using fiber optic synchronization.
Q: What types of I/O architectures are supported?
A: Supports distributed and remote I/O via Modbus Plus, S908, Ethernet Quantum, and Ethernet X80 networks.
Q: Is the module hot-swappable?
A: No. Installation and removal must be performed with system power off.
