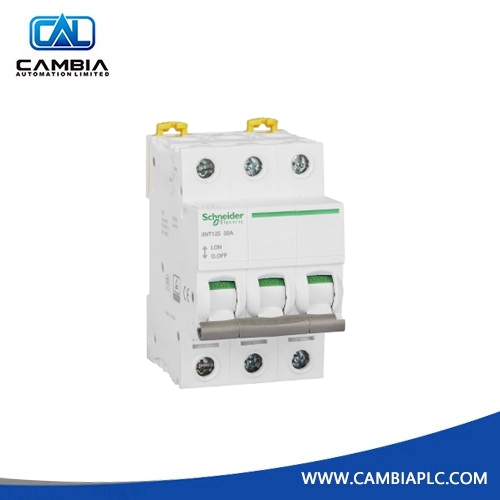

Schneider iINT125 32A Isolating Switch in Stock

Overview

The Schneider Electric iINT125 32A is a versatile isolating switch designed for controlling and isolating electrical circuits in various industrial applications. It offers a reliable and safe solution for circuit protection and maintenance.

Key Features

• Three-Pole Design: Provides isolation for three-phase circuits.

• Robust Construction: Built with high-quality materials for durability and long service life.

• Easy Installation: Compatible with standard DIN rail mounting for quick and convenient installation.

• Clear Indication: Visual indicators provide clear status of the switch position (open or closed).

• High Breaking Capacity: Capable of interrupting short-circuit currents safely.

Functions

• Isolation: Safely isolates electrical circuits for maintenance or repair.

• Control: Used for switching electrical loads on and off.

• Protection: Provides basic circuit protection against overloads.

Specifications

• Rated Operating Current (Ie): 32A at 400V AC 50/60Hz

• Rated Operating Voltage (Ue): 415V AC 50/60Hz

• Rated Short-Time Withstand Current (Icw): 1260A for 1s

• Rated Insulation Voltage (Ui): 500V AC 50/60Hz

• Rated Impulse Withstand Voltage (Uimp): 6kV

• Mechanical Life: 20,000 operations

• Electrical Life: 15,000 operations

• Dimensions: 36mm (width) x 94mm (height) x 78.5mm (depth)

• Mounting: DIN rail mounting

• IP Rating: IP20

Contact Trixie

Email: trixie@cambia.cn

Skype: +86 13599507613

Cell: +86 13599507613 (wechat whatsapp)

More Products

Details

Condition: Brand new

Warranty: 360 days

Payment: T/T

Price: Request quote

Delivery: 1-2 days

If you are interested, please don't hesitate to contact us!
