Schneider BMXXBP1200 Backplane | Modicon X80 Automation Platform
In stock, ready to ship
Manufacturer: Schneider
Product No.: BMXXBP1200
Product Type: Backplane
Product Origin: France
Payment: T/T
Weight: 1000g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
Schneider Electric BMXXBP1200

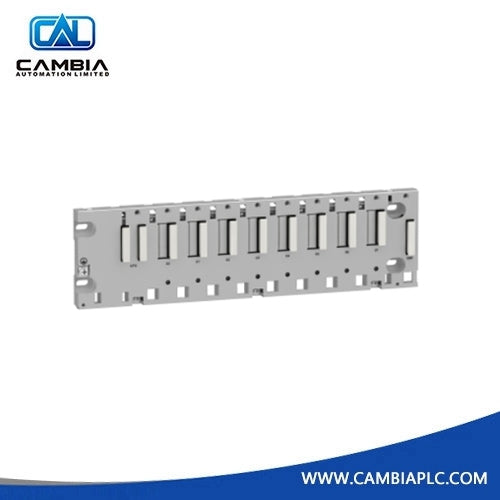

12-Slot Backplane for Modicon X80 Series PLC Systems
Product Overview
The BMXXBP1200 is a 12-slot backplane designed for Schneider Electric’s Modicon X80 platform, compatible with both M340 and M580 PLC systems. It serves as the electrical and mechanical backbone for X80 modules, including CPUs, power supplies, I/O modules, and communication interfaces.
With support for hot-swapping and rack expansion via an integrated XBE connector, the BMXXBP1200 enables flexible and scalable industrial control system architectures. Its compact and robust construction ensures high reliability in harsh automation environments.
Technical Specifications
| Attribute | Specification |
|---|---|
| Model | BMXXBP1200 |
| Product Type | X80 Series Backplane |
| System Compatibility | Modicon M340 / M580 PLCs |
| Number of Slots | 12 X-bus slots |
| Bus Type | X-bus |
| Expansion Connector | 1 × XBE (rack extension) |
| Rated Voltage | 3.3 V DC |
| Current Consumption | 50 mA |
| Power Consumption | 0.17 W |
| Mounting | Panel or DIN rail (4 × M4/M5/M6 screws) |
| Dimensions (W × H × D) | 503.2 × 103.7 × 19 mm |
| Net Weight | Approx. 1.27 kg |
| IP Rating | IP20 |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | –40°C to +70°C |
| Relative Humidity | 10–95% non-condensing |
| Certifications | CE, UL, CSA, RCM, EAC, UKCA |
| Standards | EN/IEC 61131-2, EN/IEC 61010-2-201 |
Features
- Accommodates up to 12 Modicon X80 modules: CPU, power supply, I/O, and communication
- Compatible with both Modicon M340 and M580 PLC controllers
- Hot-swapping support reduces downtime during maintenance and upgrades
- Built-in XBE expansion port for modular system growth
- Industrial-grade design with compact footprint for space-constrained cabinets
- Compliant with multiple international certifications and standards
