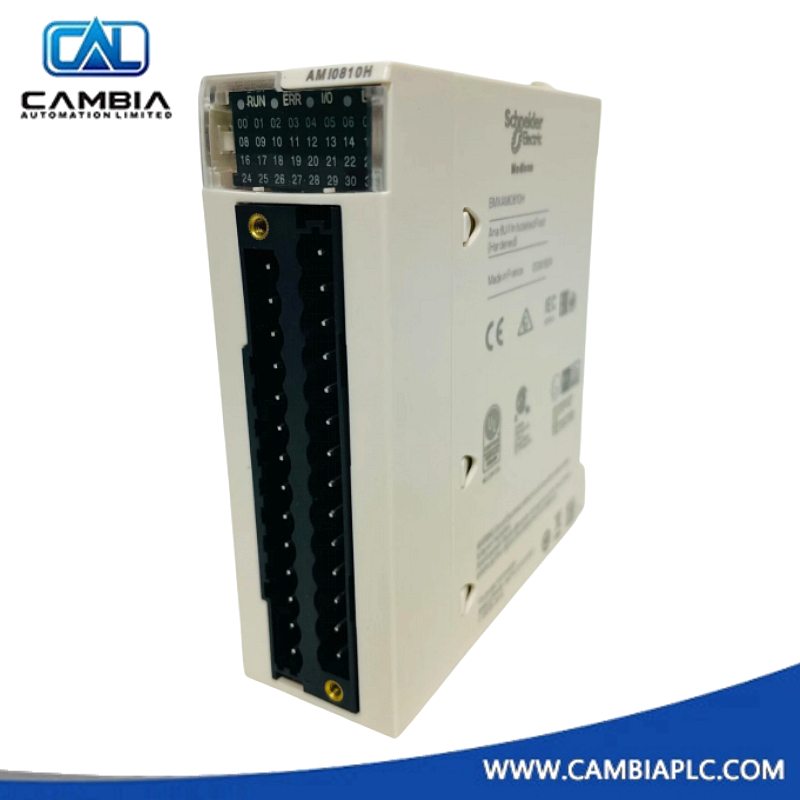

Schneider BMXAMI0810H Analog Isolated High Level Input Module
In stock, ready to ship
Manufacturer: Schneider
Product No.: BMXAMI0810H
Product Type: Analog Input
Product Origin: France
Payment: T/T
Weight: 175g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
Schneider Electric BMXAMI0810H
Ruggedized 8-Channel Isolated Analog Input Module – Modicon X80
Product Description
The BMXAMI0810H is a ruggedized, isolated high-level analog input module from the Modicon X80 series, designed for M340 and M580 PACs. It features 8 input channels, enhanced environmental resilience, and high-speed acquisition, making it suitable for demanding industrial applications.
- Manufacturer: Schneider Electric
- Catalog Number: BMXAMI0810H
- Series: Modicon X80
- Type: Isolated Analog Input Module
Technical Specifications
| Attribute | Specification |
|---|---|
| Input Channels | 8 analog inputs |
| Input Types | Voltage: ±10 V, ±5 V, 0–10 V, 0–5 V, 1–5 V Current: ±20 mA, 0–20 mA, 4–20 mA |
| Input Impedance | Voltage: 10 MΩ Current: 250 Ω + internal resistor |
| Conversion Resolution | 15 bits + sign (16-bit ADC) |
| Measurement Resolution | 0.36 mV (voltage), 1.4 µA (current) |
| Accuracy @ 25°C | ±0.075% (voltage), ±0.15% (current) |
| Accuracy @ –25 to +70°C | ±0.1–0.3% depending on range |
| Temperature Drift | 30 ppm/°C (voltage), 50 ppm/°C (current) |
| Overload Protection | ±30 V (voltage), ±30 mA (current) |
| Isolation | 300 VDC between channels 1400 VDC to ground/bus |
| Crosstalk Attenuation | ≥ 80 dB |
| Noise Rejection | ≥ 80 dB (100 kHz to 10 MHz) |
| Read Cycle Time | Fast: 1 ms + 1 ms × channels used Nominal: 9 ms for 8 channels |
| Digital Value Format | –32768 to +32767 (default scale ±10000) |
| Connector Type | 28-way removable terminal block |
| Power Consumption | 1.06–1.50 W @ 24 VDC 0.32–0.48 W @ 3.3 VDC |
| Current Consumption | 150 mA @ 3.3 VDC 54 mA @ 24 VDC |
| Operating Temperature | –25°C to +70°C |
| Storage Temperature | –40°C to +85°C |
| Humidity Range | 5% to 95% RH, non-condensing |
| Shock / Vibration Resistance | 30 gn / 3 gn |
| Protection Rating | IP20 |
| Dimensions (W × H × D) | 32 × 100 × 86 mm |
| Weight | 0.175 kg |
| Certifications | CE, UL, CSA, RCM, EAC, ATEX, IEC-Ex, Merchant Navy |
| Standards Compliance | EN 61131-2, EN 61010-2-201, EN 61000-6-2/-6-4 |
| Protective Coating | Conformal coating (Humiseal 1A33 TC) |
| Warranty | 18 months |
Application Scenarios
- Industrial automation systems in severe environmental conditions
- High-precision process monitoring and data acquisition
- Modular control panels requiring isolated analog input
- Projects demanding long-term reliability and diagnostic visibility
