Schneider

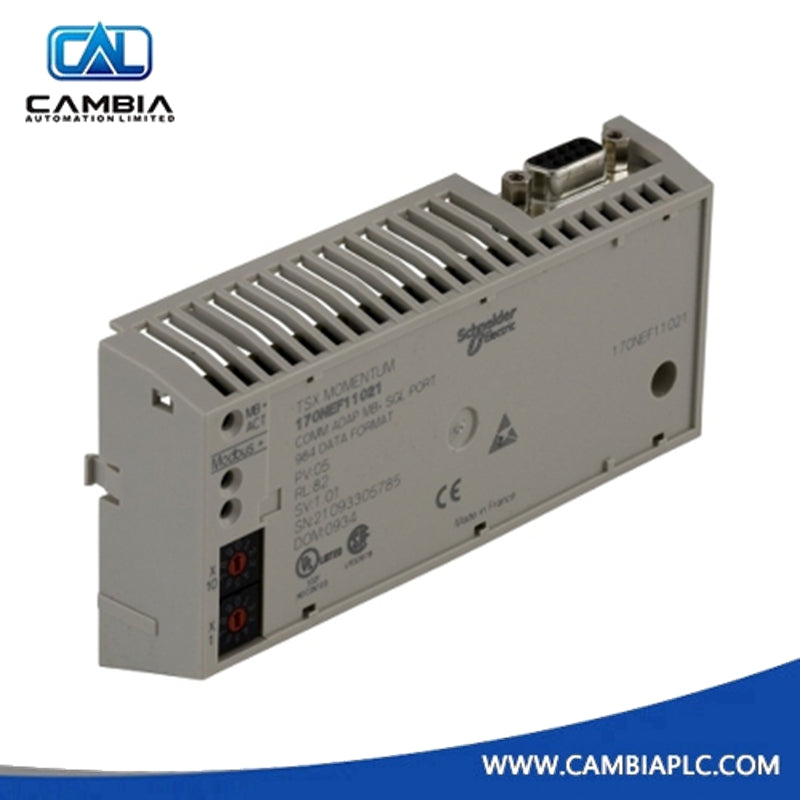

Schneider 170NEF11021 Modbus Plus communication adaptor
In stock, ready to ship
Manufacturer: Schneider
Product No.: 170NEF11021
Product Type: Modbus Plus communication adaptor
Product Origin: USA
Payment: T/T
Weight: 760g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
The Schneider 170NEF11021 is a Modbus Plus communication adaptor designed for the Modicon Momentum automation platform. This device connects industrial equipment with a Modbus Plus network and supports a peer-to-peer communication method, enabling efficient control and communication for various devices. It features high-speed transmission at 1 Mbit/s, ensuring reliable and fast data exchange.
Key Features
-
Brand: Schneider
-
Model: 170NEF11021
-
Type: Modbus Plus Communication Adaptor
-
Communication Protocol: Modbus Plus
-
Transmission Rate: 1 Mbit/s
-
Transmission Support Medium: Twisted Pair
-
Topology: Multidrop, with device connections via extension or tap-off cable
-
Devices per Segment: 0 to 31 per segment, 0 to 63 across all segments
-
Maximum Cable Distance: Up to 5000 m (16,404 ft) with repeater
Technical Specifications
Parameter | Specification |
---|---|
Bus Manager PLC | Compact 984, Quantum |
Method of Access | Peer-to-peer, Token bus |
Data Format | 984 |
Fail State | Full scale value, Maintain value, Fallback to zero |
Supply | From I/O base |
Local Signalling | 1 LED (green) for module status, 1 LED (red) for error |
Electrical Connection | 1 connector SUB-D 9 for Modbus Plus network |
Network Redundancy | Redundant Modbus Plus network connector |
Environmental & Certifications
-
Product Certifications: CSA, UL
-
Protective Treatment: TC
-
Resistance to Electrostatic Discharge: 4 kV (contact) / 8 kV (air)
-
Electromagnetic Fields Resistance: 9.1 V/m (80...1000 MHz)
-
Operating Temperature: 0…60 °C (32…140 °F)
-
Storage Temperature: -40…85 °C (-40…185 °F)
-
Humidity: 95% non-condensing
-
Operating Altitude: ≤5000 m (16,404 ft)
Dimensions & Packaging
Parameter | Specification |
---|---|
Package Height | 5.8 cm (2.3 in) |
Package Width | 18.0 cm (7.09 in) |
Package Length | 25.9 cm (10.2 in) |
Package Weight | 193 g (6.8 oz) |
