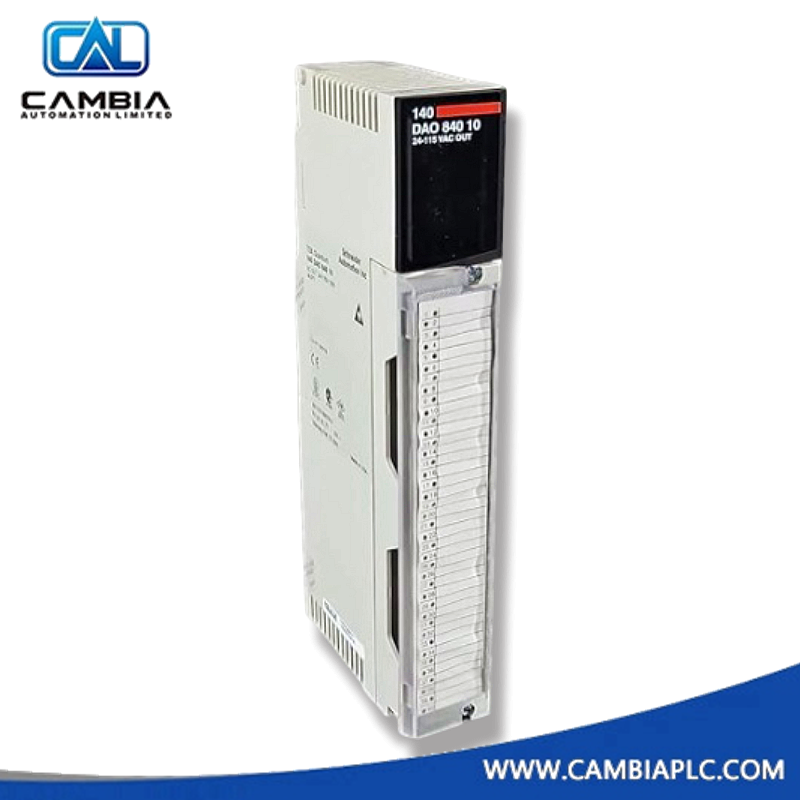

Schneider 140DAO84010 AC Discrete Output Module
In stock, ready to ship
Manufacturer: Schneider
Product No.: 140DAO84010
Product Type: Discrete Output
Product Origin: France
Payment: T/T
Weight: 500g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
Overview
The 140DAO84010 is a 16-point AC discrete output module designed for use in the Modicon Quantum automation platform. It provides isolated solid-state outputs for controlling AC-powered devices such as solenoids, contactors, and pilot lights. Each output channel is individually isolated and supports high-speed switching with robust protection features. The module is suitable for demanding industrial environments and supports diagnostics via LED indicators.
Technical Specifications
| Manufacturer | Schneider Electric |
| Catalog Number | 140DAO84010 |
| Product Type | AC Discrete Output Module |
| Platform | Modicon Quantum |
| Number of Outputs | 16 |
| Output Type | Solid-state, isolated |
| Output Voltage Range | 20 to 132 V AC |
| Supply Frequency | 47 to 63 Hz |
| Maximum Voltage Drop | 1.5 V |
| Maximum Load Current | 16 A per module; 4 A per group (continuous) |
| Surge Current | Up to 30 A per point (1–3 cycles) |
| Off-State Leakage | 1–2 mA depending on voltage |
| dv/dt Protection | 400 V/ms |
| Response Time | ≤ 0.5 ms (state change) |
| Protection Type | Internal RC filter |
| Power Dissipation | 1.85 W + (1.1 V × total load current) |
| Bus Current Requirement | 350 mA |
| Associated Fuse Rating | 5 A |
| Local Signaling | 1 green LED (bus active), 1 red LED (fault), 16 green LEDs (channel status) |
| Module Format | Standard |
| Net Weight | 0.485 kg |
| Certifications | CE, UL 508, CSA C22.2 No 142, FM Class 1 Div 2 |
| Operating Temperature | 0 to 60 °C |
| Storage Temperature | –40 to 85 °C |
| Relative Humidity | 95% non-condensing |
| Operating Altitude | ≤ 5000 m |
Dimensions and Weight
| Module Width | Standard Quantum slot size |
| Weight | 0.485 kg |
| Mounting Type | Quantum rack-mounted |
| Cooling Method | Passive (natural convection) |
Product Questions
Q: What types of loads can the 140DAO84010 control?
It is suitable for controlling AC-powered devices such as solenoids, contactors, pilot lights, and other discrete actuators.
Q: Does the module support diagnostics?
Yes. It includes per-channel status LEDs, bus communication indicators, and fault detection LEDs.
Q: Is the module hot-swappable?
No. Power must be turned off before installing or removing the module.
