GE

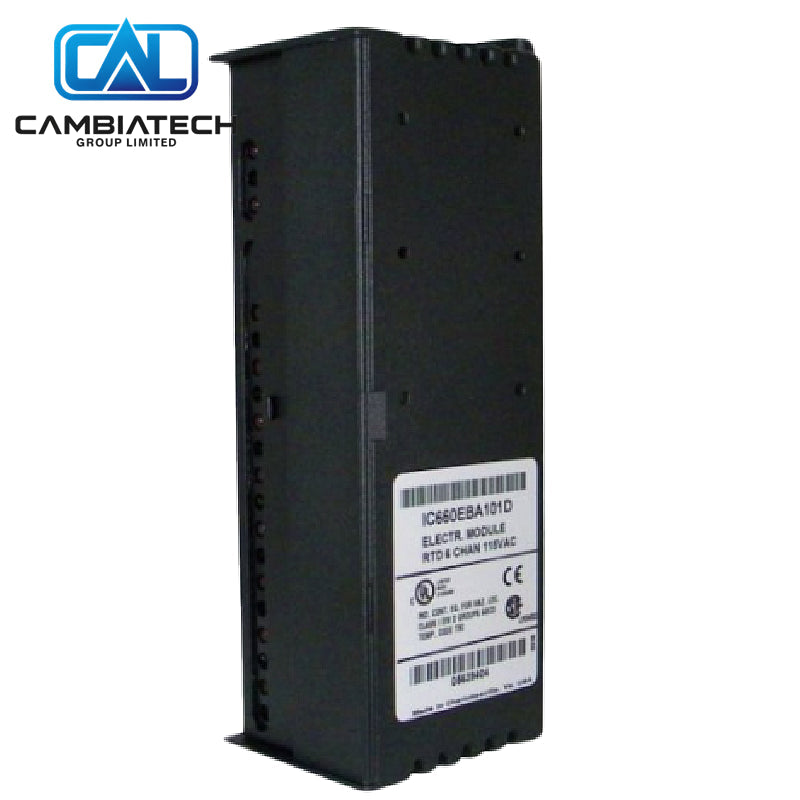

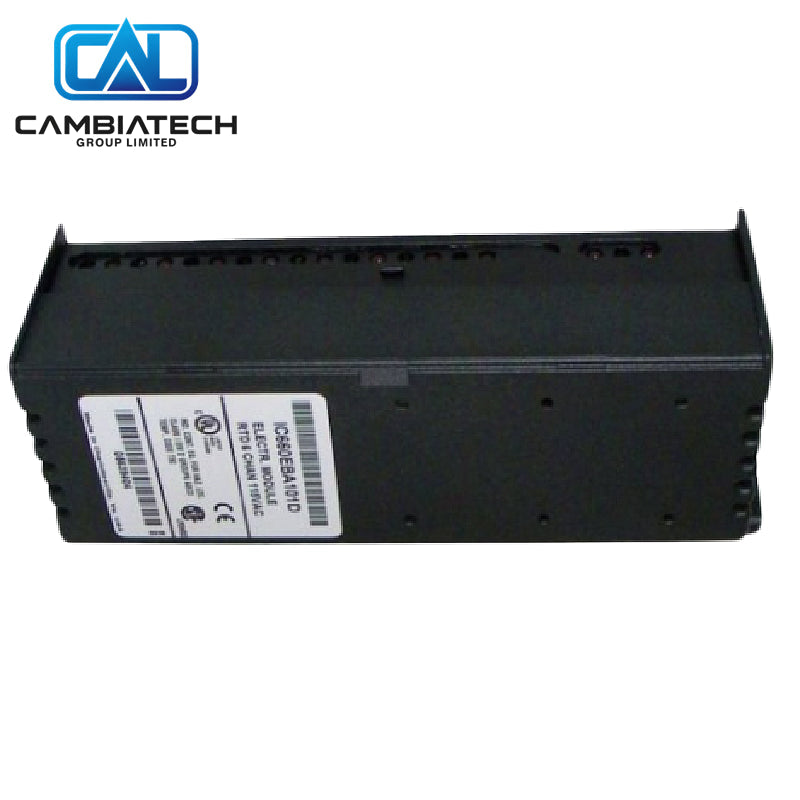

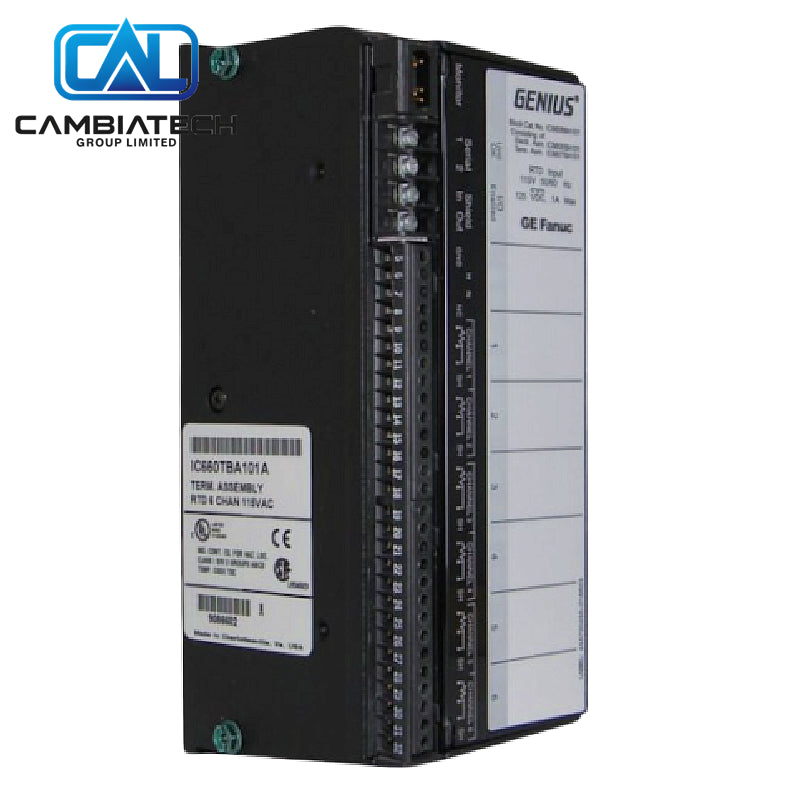

RTD Input Block 6ch IC660BBA101 GE Genius 115VAC
In stock, ready to ship
Manufacturer: GE
Product No.: IC660BBA101
Product Type: RTD Input Block
Product Origin: USA
Payment: T/T
Weight: 1700g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
Product Overview
GE IC660BBA101 is a Genius RTD Input Block with 6 channels arranged in 3 groups of 2. It accepts Platinum, Nickel or Copper RTDs and provides high-resolution temperature measurement for process applications.
Key Specs
- Channels: 6 RTD inputs (3 groups of 2)
- RTD types: Platinum, Nickel, Copper
- Resolution: 0.1 °C
- Resistance range: 0–5000 ohms
- Power: 115 VAC / 125 VDC
- Update rate: 400 / 800 / 1600 ms selectable
- System: GE Genius I/O
Why Choose This
- Dedicated high-resolution RTD measurement
- Supports multiple RTD sensor types
- Configurable engineering units (°C, °F, ohms, counts)
- Built-in diagnostics for wiring and calibration
Common Questions
- Channels? 6 RTD.
- Sensors? Pt, Ni, Cu.
- Resolution? 0.1 °C.
Mounting Steps
- Mount the block and connect the Genius Bus.
- Wire RTD sensors observing 2/3/4-wire configuration.
- Configure sensor type and units with the Handheld Monitor.
- Power up and verify readings.
- Calibrate if required by the application.
Buying Advice
- Ideal for multi-point RTD temperature monitoring.
- Confirm sensor type and wiring compatibility.
- Critical spare for Genius temperature I/O.
