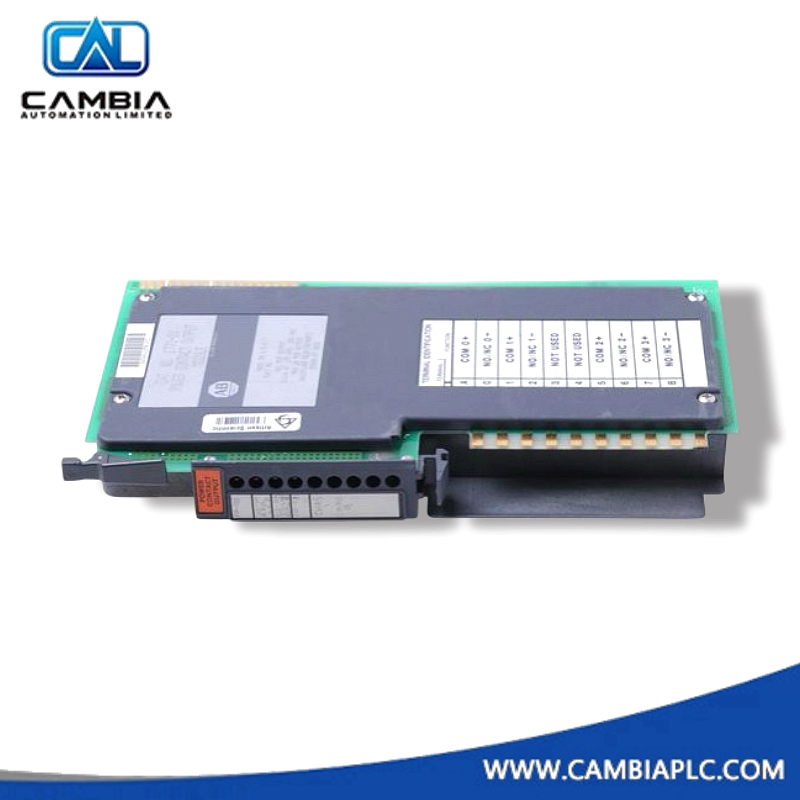

Rockwell Allen-Bradley 1771-OW Relay Contact Output Module
In stock, ready to ship
Manufacturer: Allen-Bradley
Product No.: 1771-OW
Product Type: Relay Output
Product Origin: USA
Payment: T/T
Weight: 900g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
Allen-Bradley 1771-OW
Relay Contact Output Module for PLC-5 Systems
Overview
The 1771-OW is a relay contact output module designed for use in Allen-Bradley PLC-5 systems. It provides eight individually selectable relay outputs, each configurable as Normally Open (N.O.) or Normally Closed (N.C.).
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Rockwell Automation |
| Brand | Allen-Bradley |
| Catalog Number | 1771-OW |
| Product Type | Relay Contact Output Module |
| Number of Outputs | 8 (4 groups of 2 channels) |
| Contact Configuration | Selectable N.O. or N.C. (default: N.O.) |
| Operating Voltage Range | 24–138 VAC RMS; 24–125 VDC |
| Output Current per Channel | 1.0 A max |
| Minimum Contact Load | 10 mA @ 24 V AC/DC |
| Backplane Current | 700 mA @ 5 VDC |
| Power Dissipation | 3.3–3.7 W |
| Thermal Dissipation | 11.3–12.7 BTU/hr |
| Compatible Chassis | 1771-A1B, A2B, A3B, A4B |
| Field Wiring Arm | 1771-WD |
| Keying Positions | Between 6 and 8; Between 16 and 18 |
Dimensions and Weight
| Attribute | Specification |
|---|---|
| Module Width | Standard single-slot 1771 format |
| Weight | 0.9 kg |
| Mounting Type | Rack-mounted |
| Cooling Method | Passive (natural convection) |
Product Questions
-
Q: What types of loads can the 1771-OW control?
A: It is suitable for controlling resistive AC/DC loads such as solenoids, pilot lights, and contactors. Inductive loads are not recommended due to lack of surge suppression circuitry. -
Q: How are the relay contacts configured?
A: Each output can be individually strapped for N.O. or N.C. operation using internal jumpers. -
Q: Is the module compatible with all 1771 chassis?
A: Yes, except for the extreme left slot which is reserved for Remote I/O Adapter modules. -
Q: Is the 1771-OW hot-swappable?
A: No. Power must be turned off before inserting or removing the module.
