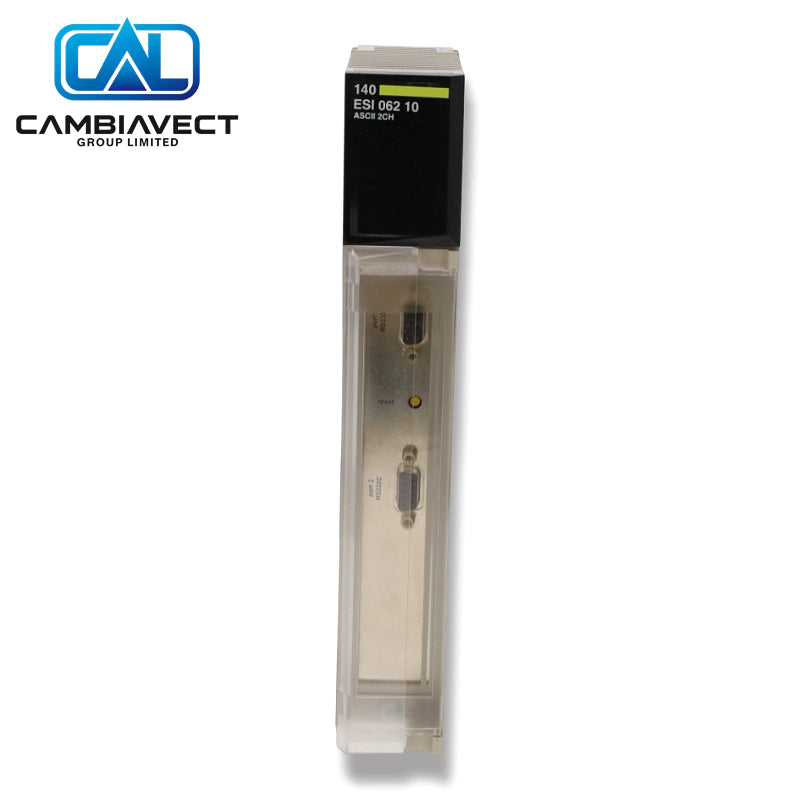

Quantum ASCII Serial Module 140ESI06210 Schneider 2-Port
In stock, ready to ship
Manufacturer: Schneider
Product No.: 140ESI06210
Product Type: ASCII Serial Link Module
Product Origin: USA
Payment: T/T
Weight: 1000g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
Product Overview
Schneider 140ESI06210 is a dual-port ASCII serial link module for the Modicon Quantum platform. It provides two independent RS-232C ports for communication with printers, scanners, weigh scales, barcode readers and other ASCII devices.
Key Specs
- Ports: 2 × RS-232C (DB9)
- Mode: ASCII
- Baud rate: up to 19.2 kbit/s
- Message capacity: up to 255 messages
- Buffer: 255 input / 255 output bytes
- Platform: Modicon Quantum
Why Choose This
- Dedicated ASCII interface for third-party serial devices
- Two independent ports in one module
- Supports message handling and time-stamping
- Standard Quantum module format
Common Questions
- Number of ports? 2 RS-232C.
- Protocol? ASCII serial.
- Platform? Modicon Quantum.
Mounting Steps
- Insert the module into a Quantum rack slot.
- Connect RS-232 cables to the DB9 ports.
- Configure port parameters and message tables in Unity software.
- Power up and verify module status.
- Test data exchange with connected ASCII devices.
Buying Advice
- Use when Quantum needs to communicate with ASCII serial equipment.
- Confirm baud rate, parity and cable length requirements.
- Useful spare for Quantum systems with serial peripherals.
