Schneider

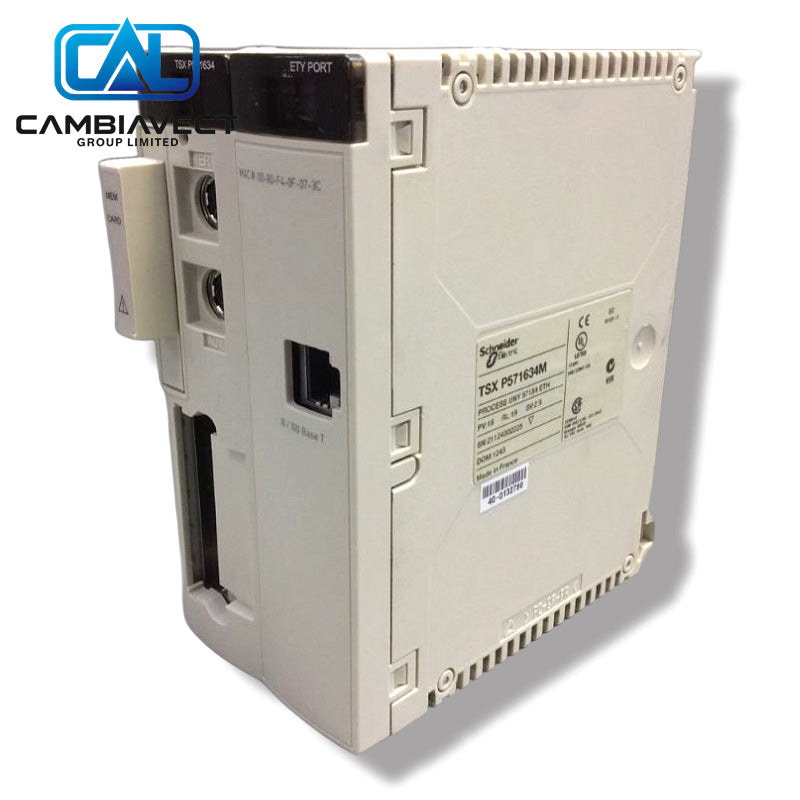

Premium Unity Processor TSXP571634M Schneider Ethernet
Manufacturer: Schneider
Product No.: TSXP571634M
Product Type: Processor Module
Product Origin: USA
Payment: T/T
Weight: 1200g
Shipping port: Xiamen
Warranty: 12 months
Yes, we provide a 30-day money-back guarantee for all purchases.
Yes, all items come with a 12-month warranty from the date of shipment.
Product Overview
Schneider Electric TSXP571634M is a Unity processor for the Modicon Premium platform with integrated Ethernet TCP/IP and serial ports. It supports multi-rack I/O expansion for mid-range machine and process control applications.
Key Specs
- Platform: Modicon Premium
- Type: Unity processor
- Software: Unity Pro / EcoStruxure Control Expert class
- Architecture: Up to 2 racks (12 slots) or 4 racks (4/6/8 slots) class
- I/O capacity: Up to 512 discrete / 24 analog class
- Ethernet: RJ45 10/100 Mbit/s
- Serial: Dual mini-DIN RS485 class
- Current consumption: Approx. 1650 mA at 5 V DC class
Why Choose This
- Integrated Ethernet for network connectivity
- Unity platform for modern Premium applications
- Multi-rack expansion capability
- Serial ports for HMI and device links
Common Questions
- Type? Unity Premium processor.
- Ethernet? Yes, integrated 10/100.
- Software? Unity Pro class.
Mounting Steps
- Install the processor in the designated Premium rack CPU slots.
- Connect Ethernet and serial interfaces as required.
- Configure the application in Unity / Control Expert software.
- Power up and verify RUN and network status.
- Download the program and confirm I/O communication.
Buying Advice
- Confirm total rack and I/O counts within processor limits.
- Match firmware and software version to the existing system.
- Critical spare for Premium TSX P57 1634 class systems.
